2. Specifications

■ PSZ2401/PSZ2401-CA
Overall size (LxWxH)············ 83.9(2130) x 9.8(250) x 12.2(310) mm
Dry weight ···························································· 11.2(5.04) lbs (kg)
Engine Type ································· Air-cooled 2-stroke gasoline
Model ································································ GZ23N
Displacement ·································· 1.5cu-in (23.6 cm
Max. output········ 1.15 Hp (0.858 kW)at 8000min
Idle speed······································3000±200min
Fuel·································· Mixture (Gasoline 50 : Oil 1)
(when using RedMax/ZENOAH genuine oil)
Carburetor······························· Walbro Diaphragm type
Spark plug···········································Champion RZ7C
Durability period·················································300 hrs
Fuel tank capacity··················································21.3 fl.oz (0.63 )
Transmission ······························ Centrifugal clutch, Rigid driveshaft
Gear ratio ··················································································· 1.06
4
English

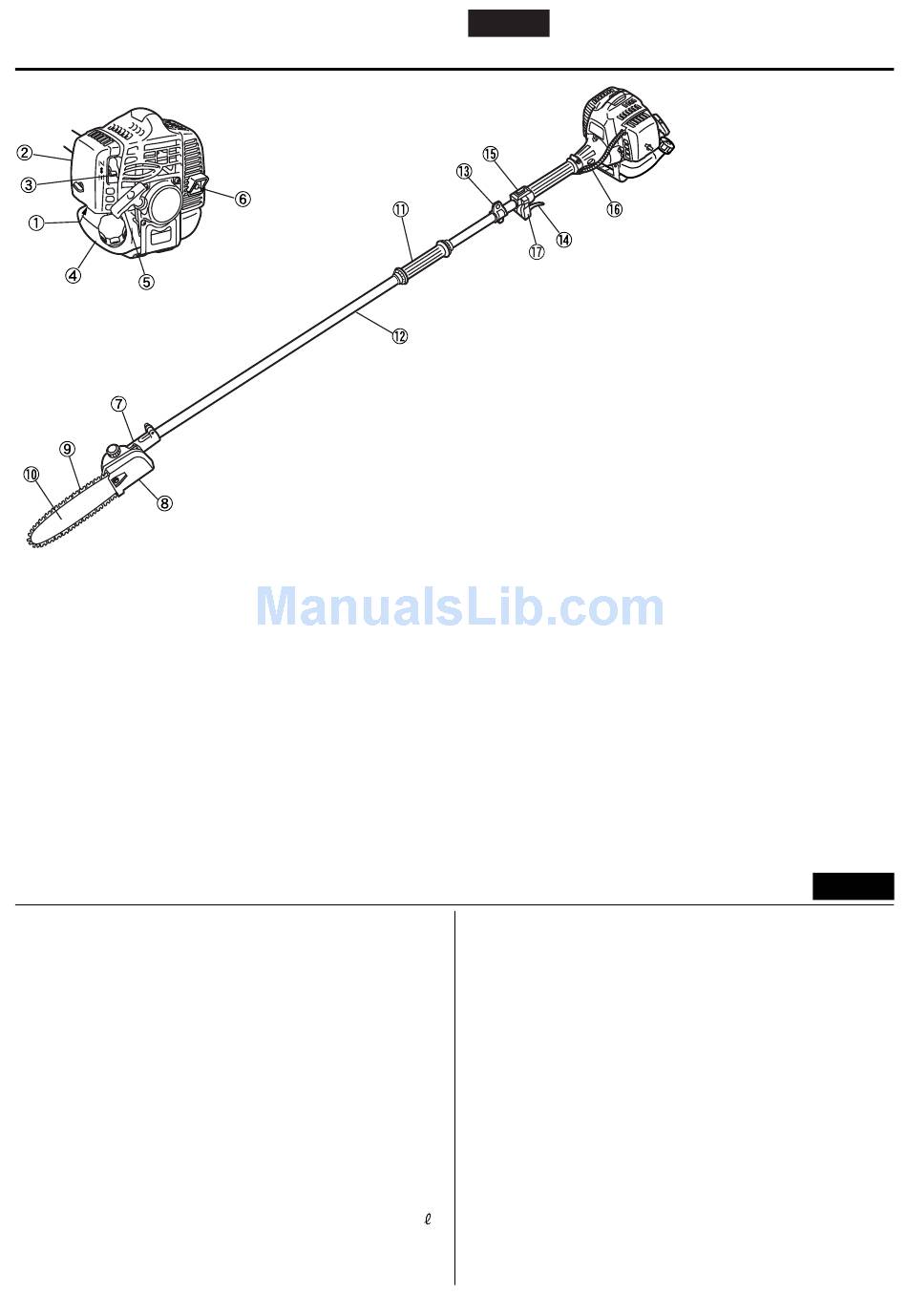

1. Parts location

Cutting head
Guide bar Type ·················· OREGON DOUBLE GUARD PS0011
Size ····················································· 12(300) in.(mm)
Saw chain Type ············································· OREGON 90SG44X
Pich x Gauge·············· 3/8x0.043 (9.53 x 1.09) in.(mm)
3) Sprocket ························································································ 7T
-1 (rpm) Oil pump·········································································Plunger type
-1 (rpm) Standard Accessories
Shoulder Strap··········································································· 1 pc.
Goggle ······················································································· 1 pc.
Tool Kit ······················································································ 1 pc.
Specifications are subject to change without notice.
(1) Primer pump
(2) Air cleaner cover
(3) Choke lever
(4) Fuel tank
(5) Starter knob
(6) Spark arrester
(7) Gear case
(8) Chain cover
(9) Saw chain
(10) Guide bar
(11) Grip
(12) Drive shaft housing
(13) Sholder strap hanger
(14) Throttle lever
(15) Ignition switch
(16) Throttle cable
(17) Throttle set button
