by using the Select button. Errors from the right panel can be removed only with the "Clear selected"
button.
The errors will be cleared when the ignition is put to the ignition switch, on the condition that there are
recorded errors displayed in the right panel of the automatic clearing configuration window.

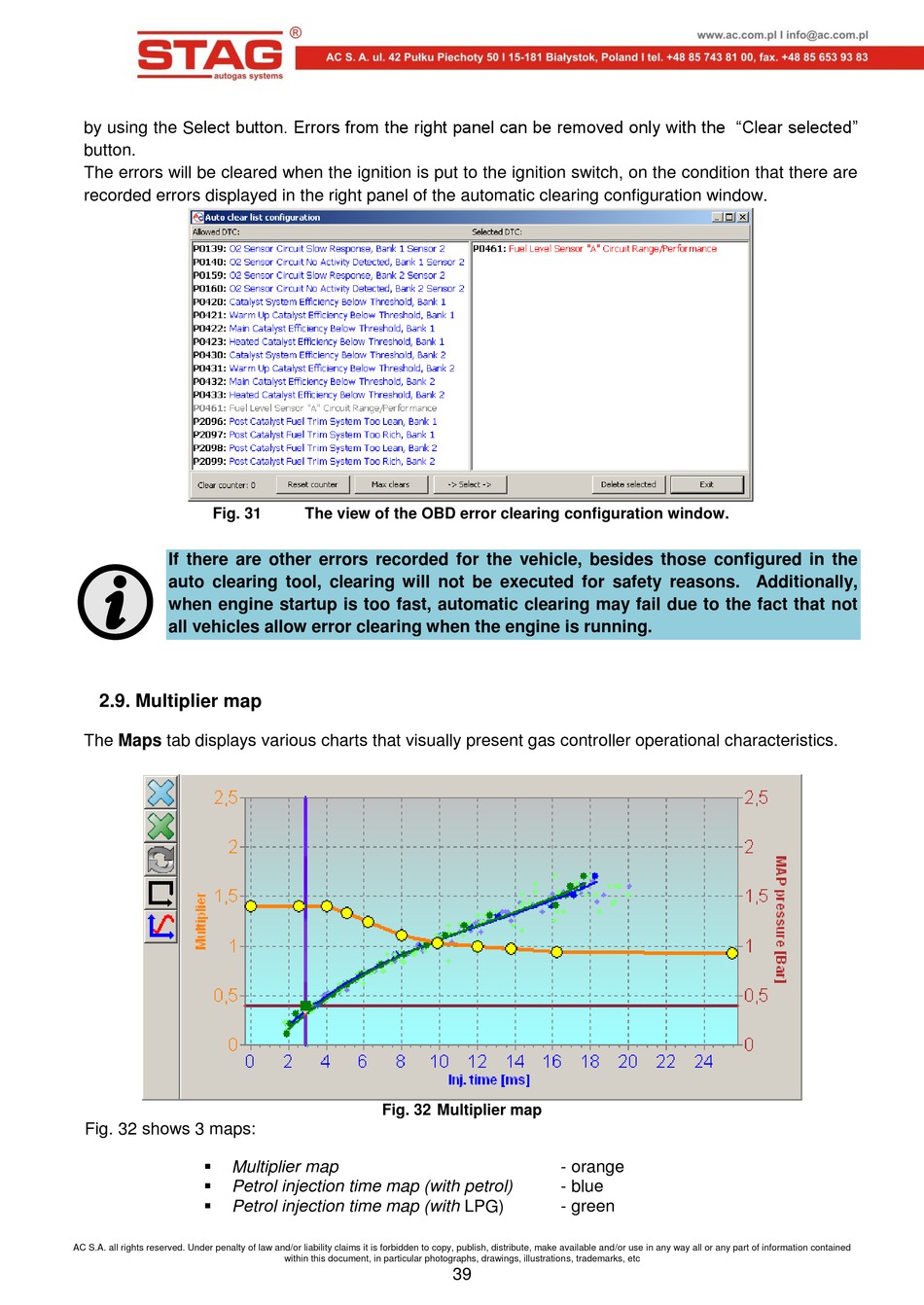

Fig. 31
If there are other errors recorded for the vehicle, besides those configured in the
auto clearing tool, clearing will not be executed for safety reasons. Additionally,
when engine startup is too fast, automatic clearing may fail due to the fact that not
all vehicles allow error clearing when the engine is running.

2.9. Multiplier map

The Maps tab displays various charts that visually present gas controller operational characteristics.
Fig. 32 shows 3 maps:

Multiplier map

Petrol injection time map (with petrol)

Petrol injection time map (with LPG)
AC S.A. all rights reserved. Under penalty of law and/or liability claims it is forbidden to copy, publish, distribute, make available and/or use in any way all or any part of information contained
The view of the OBD error clearing configuration window.
Fig. 32 Multiplier map
within this document, in particular photographs, drawings, illustrations, trademarks, etc
39
- orange
- blue
- green
