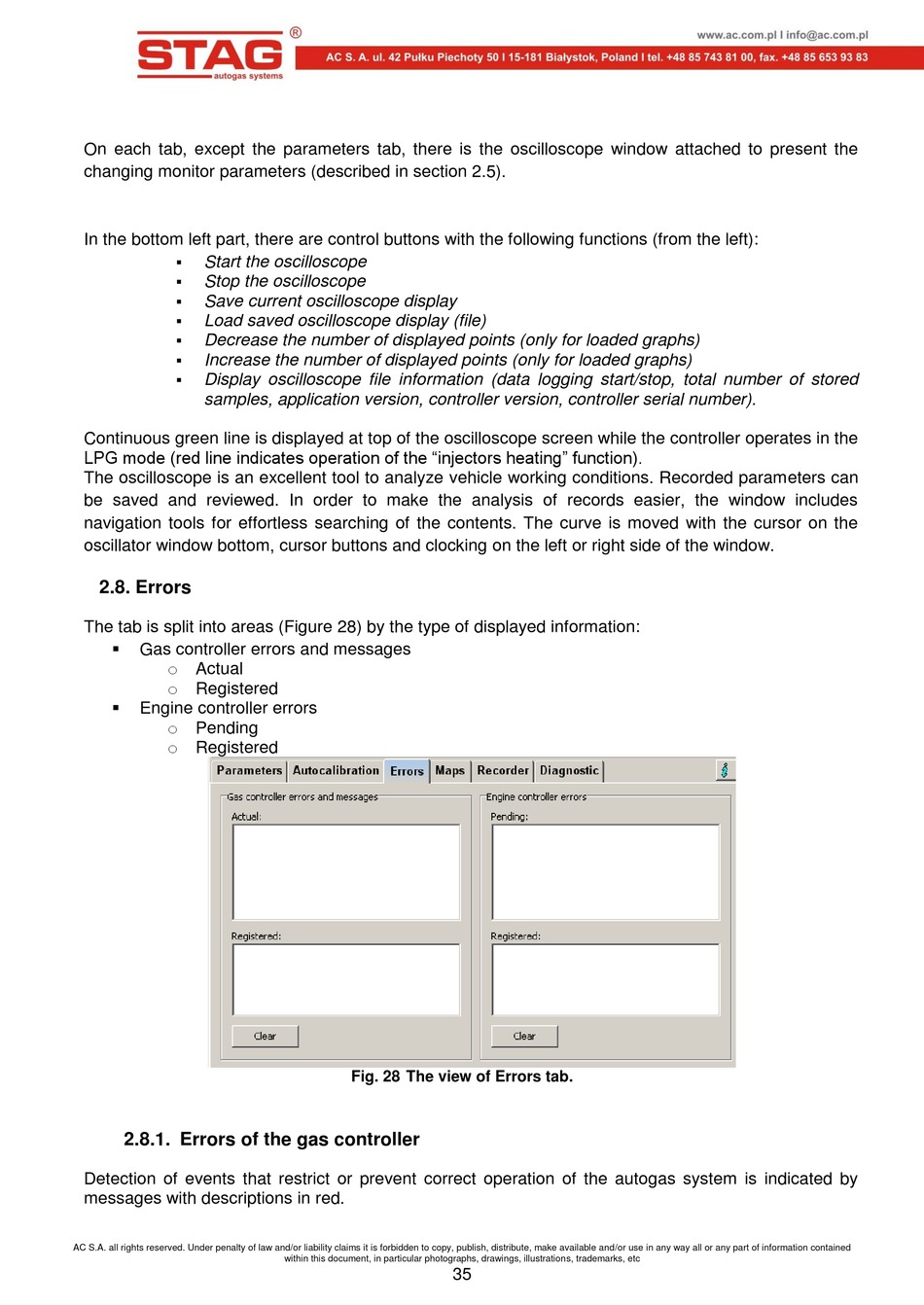

On each tab, except the parameters tab, there is the oscilloscope window attached to present the
changing monitor parameters (described in section 2.5).
In the bottom left part, there are control buttons with the following functions (from the left):
 Start the oscilloscope
 Stop the oscilloscope

Save current oscilloscope display

Load saved oscilloscope display (file)
 Decrease the number of displayed points (only for loaded graphs)
 Increase the number of displayed points (only for loaded graphs)
 Display oscilloscope file information (data logging start/stop, total number of stored
samples, application version, controller version, controller serial number).
Continuous green line is displayed at top of the oscilloscope screen while the controller operates in the
LPG mode (red line indicates operation of the "injectors heating" function).
The oscilloscope is an excellent tool to analyze vehicle working conditions. Recorded parameters can
be saved and reviewed. In order to make the analysis of records easier, the window includes
navigation tools for effortless searching of the contents. The curve is moved with the cursor on the
oscillator window bottom, cursor buttons and clocking on the left or right side of the window.

2.8. Errors

The tab is split into areas (Figure 28) by the type of displayed information:

Gas controller errors and messages
o Actual
o Registered

Engine controller errors
o Pending
o Registered

2.8.1. Errors of the gas controller

Detection of events that restrict or prevent correct operation of the autogas system is indicated by
messages with descriptions in red.
AC S.A. all rights reserved. Under penalty of law and/or liability claims it is forbidden to copy, publish, distribute, make available and/or use in any way all or any part of information contained
Fig. 28 The view of Errors tab.
within this document, in particular photographs, drawings, illustrations, trademarks, etc
35
