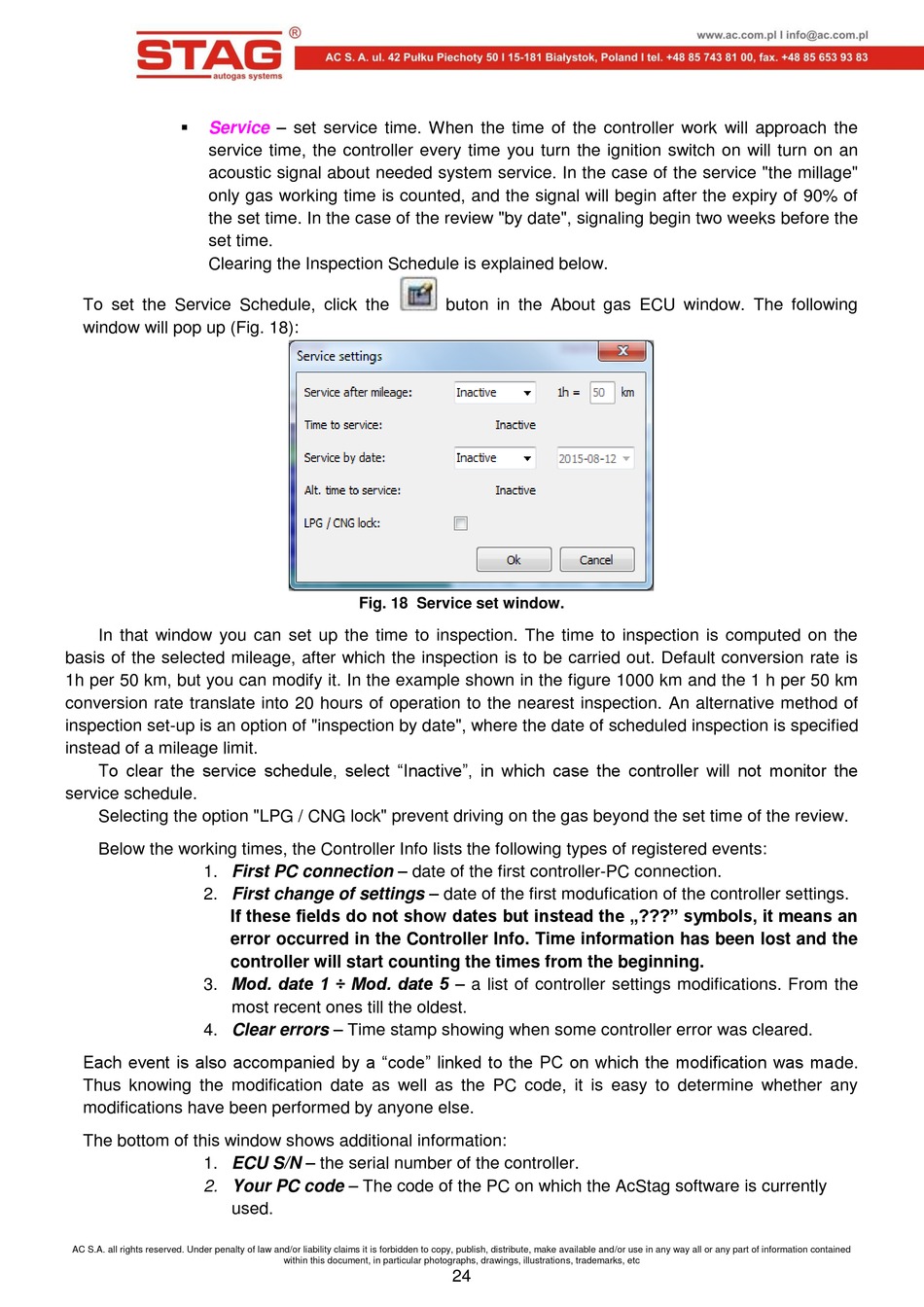

AC STAG-4 QBOX BASIC User Manual page 24


Service
service time, the controller every time you turn the ignition switch on will turn on an
acoustic signal about needed system service. In the case of the service "the millage"
only gas working time is counted, and the signal will begin after the expiry of 90% of
the set time. In the case of the review "by date", signaling begin two weeks before the
set time.
Clearing the Inspection Schedule is explained below.
To set the Service Schedule, click the
window will pop up (Fig. 18):
In that window you can set up the time to inspection. The time to inspection is computed on the
basis of the selected mileage, after which the inspection is to be carried out. Default conversion rate is
1h per 50 km, but you can modify it. In the example shown in the figure 1000 km and the 1 h per 50 km
conversion rate translate into 20 hours of operation to the nearest inspection. An alternative method of
inspection set-up is an option of "inspection by date", where the date of scheduled inspection is specified
instead of a mileage limit.
To clear the service schedule, select "Inactive", in which case the controller will not monitor the
service schedule.
Selecting the option "LPG / CNG lock" prevent driving on the gas beyond the set time of the review.
Below the working times, the Controller Info lists the following types of registered events:
1. First PC connection – date of the first controller-PC connection.
2. First change of settings – date of the first modufication of the controller settings.
If these fields do not show dates but instead the „???" symbols, it means an
error occurred in the Controller Info. Time information has been lost and the
controller will start counting the times from the beginning.
3. Mod. date 1 ÷ Mod. date 5 – a list of controller settings modifications. From the
most recent ones till the oldest.
4. Clear errors – Time stamp showing when some controller error was cleared.
Each event is also accompanied by a "code" linked to the PC on which the modification was made.
Thus knowing the modification date as well as the PC code, it is easy to determine whether any
modifications have been performed by anyone else.
The bottom of this window shows additional information:
1. ECU S/N – the serial number of the controller.
2. Your PC code – The code of the PC on which the AcStag software is currently
used.
AC S.A. all rights reserved. Under penalty of law and/or liability claims it is forbidden to copy, publish, distribute, make available and/or use in any way all or any part of information contained
– set service time. When the time of the controller work will approach the
buton in the About gas ECU window. The following
Fig. 18 Service set window.
within this document, in particular photographs, drawings, illustrations, trademarks, etc
24
