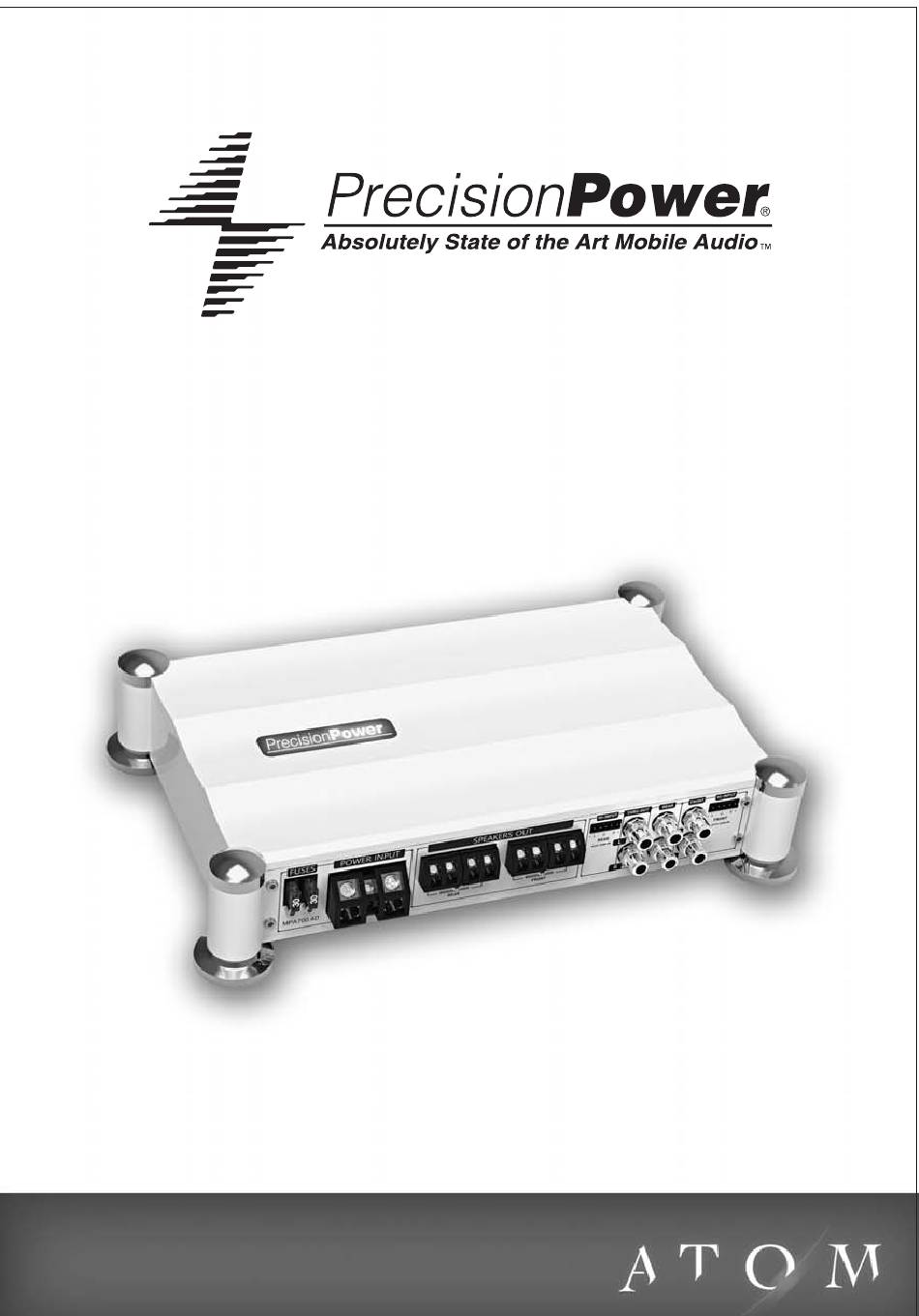

- Page 1 MARIN GRADE CLASS D AUDIO AMPLIFIER MPA700.4D / MPA1000.5D / MPA1200.1D...
- Page 2 AMPLIFIERS THANK YOU AND CONGRATULATIONS Thank you for your decision to purchase a ATOM Series mobile amplifier! Our Amplifiers are the result of extensive engineering, testing, and bullet proof construction. Their versatility enables compatibility with optional signal and audio processors. These high quality MOSFET amplifiers may be configured to allow maximum flexibility in designing different types of speaker systems.
-
Page 3: Mounting Location
INSTALLATION EXPERIENCE MOUNTING LOCATION Your ATOM Series amplifier comes with mounting feet that need to be attached to the amplifier prior to installation. Once the feet are in place, use the amplifier as a template and mark the four screw locations. Use caution to make sure there are no objects behind the installation surface that may become damaged during drilling. -
Page 4: Technical Features
TECHNICAL FEATURES Atom amplifiers adopt the optimum class d performance, reliability, and footprint of the original Atom and ion platforms. At first glance, you’ll notice several key improvements. Atom’s signal inputs, power/ground, and speaker connections are all relocated to the leading edge of the chassis, for an easier, more appealing install. -
Page 5: Additional Specifications

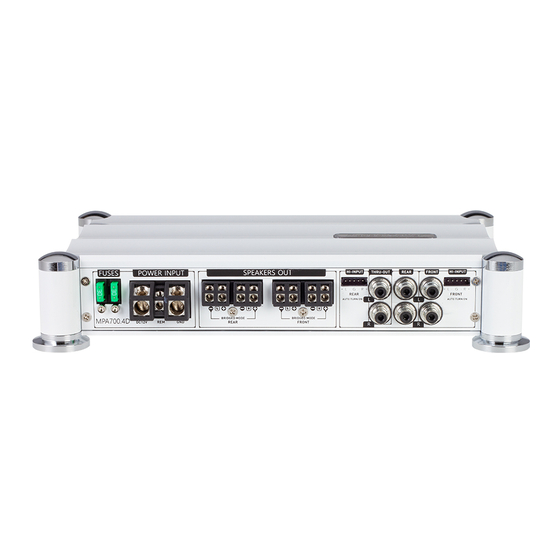

ADDITIONAL SPECIFICATIONS MPA700.4D GAIN X-OVER GAIN X-OVER BASS BOOST MPA700.4D 0dB ~ 18dB 6.0V ~ 0.25V FULL 50Hz ~ 500Hz 6.0V ~ 0.25V FULL 50Hz ~ 500Hz at 45Hz FRONT REAR 4 CHANNELS CLASS D PREMIUM AUDIO SYSTEM FUSES POWER INPUT SPEAKERS OUT HI-INPUT THRU-OUT... - Page 6 ADDITIONAL SPECIFICATIONS MPA1000.5D POWER INPUT SPEAKERS OUT FUSES REMOTE HI-INPUT REAR FRONT HI-INPUT + L - G - R + + L - G - R + + L - G - R + REAR FRONT AUTO TURN ON AUTO TURN ON AUTO TURN ON GAIN CONTROL BRIDGED MODE...
- Page 7 ADDITIONAL SPECIFICATIONS MPA1200.1D FUSES POWER INPUT SPEAKERS OUT INPUT HI-INPUT REMOTE DTAT LINK + L - G - R + AUTO TURN ON GAIN CONTROL A1200.1D DC12V PHASE SHIFT BASS BOOST LOW PASS DATA LINK GAIN SUB SONIC MPA1200.1D 0° 180°...
- Page 8 FUNCTIONS 1. LINE IN (RCA) The RCA style input jacks are for use with source units that have RCA line level outputs. A source unit with a minimum of 250mV is required for proper operation. However, this input will accept levels up to 6Vrms. 2.
- Page 9 10. Remote (Remote Input Connection) All atom Series amplifiers can be turned on by applying 12 volts to this terminal. This can be found on the rear of the source unit in the form of an electric antenna output, or a remote output.
- Page 10 FUNCTIONS 17. Protection Indicator When the PROTECTOR is activated, the indicator lights in red. When the PROTECTOR Is activated refer to the Troubleshooting Guide. (PPI Logo Badge). 18. High pass Filter ATOM amplifier has an internal variable High pass filter. It can be set from 50 up to 500 Hz. It also has that can be set from 500 up to 5KHz.
-
Page 11: How To Installation
FUNCTIONS REMOTE SUBWOOFER LEVEL CONTROL This input allows you to add remote that will allow you to control the subwoofer output of your ATOM amplifier from your dashboard. and to adapt the amplifier to all kind of signal sources with varying levels there are a level control provided on the amplifier next to the phone jacks. - Page 12 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω GAIN X-OVER GAIN X-OVER BASS BOOST MPA700.4D 6.0V ~ 0.25V FULL FULL 0dB ~ 18dB 50Hz ~ 500Hz 6.0V ~ 0.25V 50Hz ~ 500Hz at 45Hz FRONT REAR 4 CHANNELS CLASS D PREMIUM AUDIO SYSTEM 89.5 FRONT RADIO...
- Page 13 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω GAIN X-OVER GAIN X-OVER BASS BOOST MPA700.4D 6.0V ~ 0.25V FULL 50Hz ~ 500Hz 6.0V ~ 0.25V FULL 50Hz ~ 500Hz 0dB ~ 18dB at 45Hz FRONT REAR 4 CHANNELS CLASS D PREMIUM AUDIO SYSTEM 89.5 FRONT RADIO...
- Page 14 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω GAIN X-OVER GAIN X-OVER GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS MPA1000.5D 0° 180° 6.0V ~ 0.25V 50Hz ~ 500Hz 6.0V ~ 0.25V 50Hz ~ 500Hz 6.0V ~ 0.25V 20Hz ~ 50Hz 0dB ~ 18dB 50Hz ~ 500Hz FULL...
- Page 15 SPEAKER & POWER CONNECTION HIGH INPUT MODE 2Ω~8Ω GAIN X-OVER GAIN X-OVER GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS MPA1000.5D 0° 180° 6.0V ~ 0.25V 50Hz ~ 500Hz 6.0V ~ 0.25V 50Hz ~ 500Hz 6.0V ~ 0.25V 20Hz ~ 50Hz 0dB ~ 18dB 50Hz ~ 500Hz FULL...
- Page 16 SPEAKER & POWER CONNECTION LOW INPUT MODE 1Ω~8Ω GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS DATA LINK MPA1200.1D 0° 180° MASTER SLAVE 20Hz ~ 50Hz 0dB ~ 18dB 6.0V ~ 0.25V 50Hz ~ 500Hz at 45Hz MONO CHANNEL CLASS D PREMIUM AUDIO SYSTEM 89.5 RADIO EJECT...
- Page 17 These amplifiers are designed to work within a 10 to 16.8 volt DC range. Before any wires are connected, the vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter. First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read not less than 12V.
- Page 18 LIMITED 90-DAY CONSUMER WARRANTY LIMITED TWO-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A PRECISIONPOWER AUTHORIZED DEALER Precisionpower promises to the original purchaser, to repair or replace this product with a new or refurbishedunit (at Precisionpower’s sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of *two- years from the date of purchase from the Precisionpower authorized dealer, PROVIDED the product was purchased and installed by a Precisionpower authorized dealer.
-
Page 19: Year Warranty
NOTE! This warranty does not cover labor costs for the removal and reinstallation of the unit. IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF INSTALLATION BY A PRECISIONPOWER AUTHORIZED DEALER. ALL UNITS RECEIVED BY PRECISIONPOWER FOR WARRANTY REPAIR WITHOUT PROOF... - Page 20 v1.1...
