Summary of Contents for Precision Power ATOM Series
- Page 1 MPA700.4D / MPA1000.5D / MPA1200.1D Conformal Coat...
- Page 2 The ATOM Marine Series are high-quality MOSFET amplifiers capable of running a full system range, or they may be selected only to power subwoofers. It is essential that you closely follow the wiring instructions in this Owner’s Manual so that you get the most from your ATOM Series mobile amplifier.
-
Page 3: Mounting Location

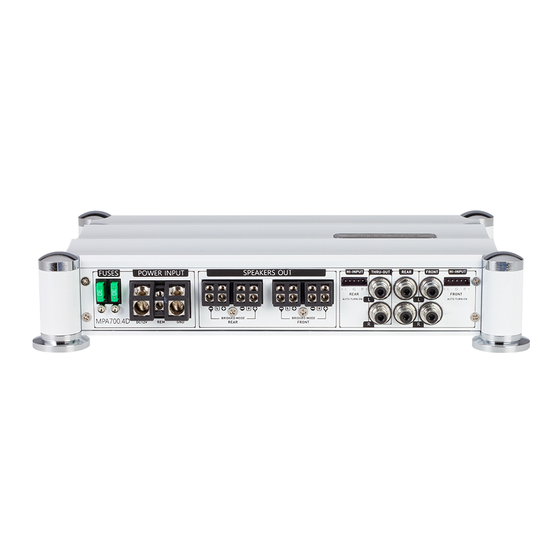

INSTALLATION EXPERIENCE MOUNTING LOCATION Your ATOM Series amplifier comes with mounting feet that need to be attached to the amplifier before installation. Once the feet are in place, use the amplifier as a template and mark the four screw locations. Use caution to ensure there are no objects behind the installation surface that may become damaged during drilling. - Page 4 Atom amplifiers adopt the optimum class d performance, reliability, and footprint of the original Atom and ion platforms. At first glance, you’ll notice several key improvements. ATOM’s signal inputs, power/ground, and speaker connections are all relocated to the chassis's leading edge for an easier, more appealing install.
-
Page 5: Additional Specifications
ADDITIONAL SPECIFICATIONS MPA 1000.5D FUSES POWER INPUT SPEAKERS OUT HI-INPUT REAR FRONT HI-INPUT REMOTE + L - G - R + + L - G - R + + L - G - R + REAR FRONT A U TO TU R N O N A U TO TU R N O N AUTO TURN ON G AIN C O N T R O L... - Page 7 ADDITIONAL SPECIFICATIONS MPA1200.1D REMOTE INPUT HI-INPUT + L - G - R + 10 11 400w x 1 @ 4-ohm Mono • 700w x 1 @ 2-ohm Mono • 1,200w x 1 @ 1-ohm Mono • Variable 50-500Hz 12dB Low Pass Filter •...
-
Page 8: Master Mode
FUNCTIONS LINE IN (RCA) The RCA style input jacks are for use with source units that have RCA line level outputs. A source unit with a minimum of 250mV is required for proper operation. However, this input will accept levels up to 6Vrms. High Level Input If you are installing by using a high level . - Page 9 Remote (Remote Input Connection) All atom Series amplifiers can be turned on by applying 12 volts to this terminal. This can be found on the rear of the source unit in the form of an electric antenna output, or a remote output.
- Page 10 The input level can be adjusted with this control. Turn it in the clockwise direction when the output level of the car audio unit seems low.
- Page 11 FUNCTIONS Sub Sonic Filter Variable subsonic filter (20Hz ~50Hz) The subsonic filter will roll off all of the unwanted frequencies below 20HZ ~50Hz. This will allow the amplifier to use that wasted power on the audible bandwidth. Low pass Filter ATOM amplifier has an internal variable low pass filter.
-
Page 12: How To Installation
REMOTE CONTROL INSTALLATION REMOTE SUBWOOFER LEVEL CONTROL This input allows you to add a remote that will enable you to control your ATOM amplifier's subwoofer output from your dashboard. There is a level control provided on the amplifier next to the phone jacks to adapt the amplifier to all kinds of signal sources with varying levels. - Page 13 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω X -O V E R GAIN X -O V E R BASS BO O ST GAIN A700.4D 6.0V ~ 0.25V F U L L F U L L 50Hz ~ 5 0 0 H z 6.0V ~ 0.25V 50Hz ~ 5 0 0 H z 0dB ~ 1 8 d B...
- Page 14 H I-IN PU T THRU-OUT REAR FR O N T INPU + L - G - R + + L - G - R + REAR FRONT AUTO TURN O N AUTO TURN O N A700.4D BRIDGED MODE BRIDGED MODE D C 12V R EM REAR...
- Page 15 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω X -O V E R GAIN X -O V E R BASS BO O ST GAIN A700.4D F U L L F U L L 50Hz ~ 5 0 0 H z 0dB ~ 1 8 d B 6.0V ~ 0.25V 50Hz ~ 5 0 0 H z...
- Page 16 + L - G - R + + L - G - R + REAR FRONT AUTO TURN O N AUTO TURN O N A700.4D BRIDGED MODE BRIDGED MODE D C 12V R EM REAR FRONT TO CHASSIS G RO UND HIGH INPUT BRIDGED MODE TO CHASSIS G RO UND MPA700.4D...
- Page 17 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω G A IN X -O V E R G A IN X -O V E R S U M G A IN S U B S O N IC P H A S E S H IFT B A S S B O O S T LO W P A S S A1000.5D...
- Page 18 GAIN CONTROL B R ID G E D B R ID G E D M O D E SUB WOOFER M O D E FR O N T R EAR TO CHASSIS GROUND 4 ~ 8 LOW INPUT BRIDGED MODE TO CHASSIS GROUND 2 ~ 8...
- Page 19 SPEAKER & POWER CONNECTION HIGH INPUT MODE 2Ω~8Ω G A IN X -O V E R G A IN X -O V E R S U M G A IN S U B S O N IC P H A S E S H IFT B A S S B O O S T LO W P A S S A1000.5D...
- Page 20 SPEAKER & POWER CONNECTION LOW INPUT MODE 1Ω~8Ω G AIN SUB SO NIC PHASE SHIFT BASS BO O ST LO W PASS DATA LINK A1200.1D 0° 180° MASTER SLAVE 6 .0 V ~ 0 .2 5 V 2 0 H z ~ 5 0 H z 0dB ~ 18dB 50Hz ~ 500Hz at 45Hz...
- Page 21 MPA1200.1D 400Wx1ch 4 Ohm. 14.4V 35Hz RMS. 1 ~ 8 700Wx1ch 2 Ohm. 14.4V 35Hz RMS. 1200Wx1ch 1 Ohm. 14.4V 35Hz RMS.
- Page 22 These amplifiers are designed to work within a 10 to 16.8 volt DC range. Before any wires are connected, the vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter. First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read not less than 12V.
- Page 23 PRECISIONPOWER AUTHORIZED DEALER Precision power promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Precision power’s sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of *two- years from the date of purchase from the Precision power authorized dealer, PROVIDED the product was purchased and installed by a Precision power authorized dealer.
- Page 24 IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF INSTALLATION BY A PRECISIONPOWER AUTHORIZED DEALER. ALL UNITS RECEIVED BY PRECISIONPOWER FOR WARRANTY REPAIR WITHOUT PROOF OF PRECISIONPOWER AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED BY THE LIMITED 1 YEAR WARRANTY.
