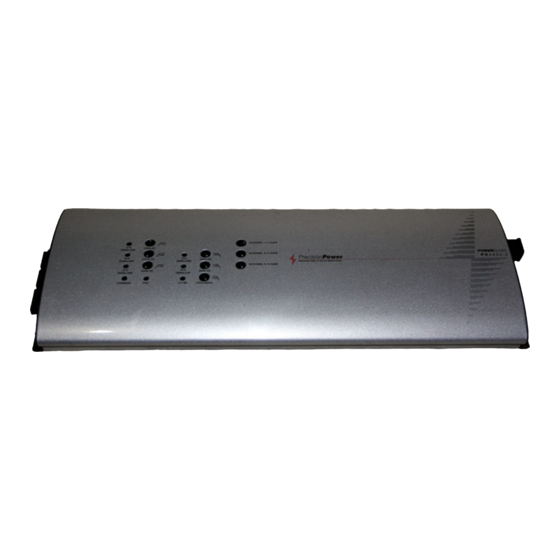

POWER CLASS PC6800 Owners Manual Congratulations Features / Specifications QBASS PLUS Installation Wiring Wiring (continued) Power / Ground Power, Ground and Remote Speaker Wiring Bridging Endplate Diagram Controls Diagram 1 Controls Diagram 2 CONTENTS (Click on a topic to view) - Page 2 Congratulations and thank you... for choosing PrecisionPower audio epuipment. At PrecisionPower we proudly design, engineer and manufacture audio products at our facility in Phoenix, Arizona. Our award winning engineering team utilizes innovative technology to consistently deliver Absolutely State of the Art sound quality, reliability, and value.
-
Page 3: Features & Specifications
Fully Complementary Triple Darlington Output Stage AM IV Protection Circuitry QBASS PLUS ™ QBASS REMOTE PowerLock Speaker and Power Wire Connectors Variable, 6-Way Internal Crossover Non-Fading Sub Channels Balanced Differential Input Stage High Voltage Input Capability with Input Attenuation Switch... -
Page 4: Qbass Plus
Q BASS PLUS ™ POWERCLASS a higher level with switches (labeled 1 and 2) on the front end of the amplifier allow you to select one of four frequency centers - 30 Hz, 36 Hz, 44 Hz and 60 Hz. The Q SELECT switch determines the width of boosted frequencies. -
Page 5: Installation
In-line fuse or circuit breaker - see fuse chart below Power and ground wire - see Power Wire Calculator on page 3 Speaker wire - 16 gauge or larger Grommets (sized to work with the power wire you plan to use... -
Page 6: Wiring (Continued)
The following is a basic formula to be used as a guide to determine current draw. A 50% amplifier efficiency rating is used as an average. Your new POWERCLASS be less. This formula is to be used as a guideline. Using wire of a larger gauge can only improve the current transfer of your system. - Page 7 Before beginning, disconnect the negative (-) terminal of the battery prior to working on the positive (+) terminal to prevent a short to ground. This is important, unless you want to spend the rest of your life with a nickname like "Sparky," or "Smokey." Reconnect the negative terminal only after all connections have been made.
-
Page 8: Power / Ground
Grounding Locate an area near the amplifier(s) that is metal and clean an area about the size of a quarter to bare metal. Inspect the area around and underneath to be sure you won't drill into wires, brake or fuel lines, etc. Drill a pilot hole in the middle of this area. -
Page 9: Power, Ground And Remote
POWER / GROUND and REMOTE Once you have run both the power and ground wires, it's time to connect the cables to the amplifier. Cut off excess wire and, using wire strippers, strip the ends of the power and ground cables approximately 1/4 inch. -
Page 10: Speaker Wiring
Amplifier, all speaker PowerLocks plug into the amplifier with the screws facing up. Loosen the screws on the top of the blocks and insert the stripped ends of the speaker wires into the end. Double check polarity, secure each wire by tightening the screws, and plug the PowerLock connector into the amplifier with the screws on top. -
Page 11: Bridging
Deriving the mono channel is accomplished by using the left channel positive wire of the pair as the positive speaker wire and the right channel negative wire as the negative speaker wire. You should always be working with the wires of a single POWERLOCK speaker connector when bridging a pair of channels. -
Page 12: Endplate Diagram
Use this switch with the 4. COOLING VENTS (see page 16). 5. SPEAKER/REMOTE CONNECTOR After connecting remote and speaker wires, plug in the PowerLock connectors here (see pages 7-9). 6. -12dB For use with high level inputs (4V up to 12V). Push this switch in to attenuate the input by 12dB (see page 14). -
Page 13: Controls Diagram
CONTROLS DIAGRAM BACK TO CONTENTS... - Page 14 CONTROLS DIAGRAM BACK TO CONTENTS...
-
Page 15: Crossover Settings
All 12dB /octave 20Hz - 21KHz HighPass and BandPass Position X1-Out 20 Hz 20 Hz 20 Hz 20 Hz 21 Hz 22 Hz 23 Hz 25 Hz 28 Hz 31 Hz 34 Hz 38 Hz 43 Hz 50 Hz 59 Hz 70 Hz 80 Hz 87 Hz... - Page 16 REVERSE WARNING: If you are using a source unit with bridged high powered (or "floating ground") speaker outputs, a suitable high to low level adapter must be used. If you are unsure about your head unit see your local PrecisionPower dealer or call 1-800-62Power.
- Page 17 Your new POWERCLASS provide exceptional system flexibility without the added expense and installation of an outboard crossover. CHANNELS 1/2 The first row of controls on the top of your Pro6800 allow you to send a variable highpass signal (20 Hz to 20 KHz) to Channels 1/2.
- Page 18 INPUT COMBINE and GAIN Input Combine Your multi channel POWER CLASS front and rear outputs from your head unit to maintain the ability to fade front to rear, or you can run a single set of RCAs to the front inputs and push in the COMBINE switch on the amplifier end plate to route the INPUT A signal to channels 3/4 as well.
-
Page 19: Troubleshooting
STILL NO SOUND - See your Authorized PrecisionPower Dealer or Call 1-800-62POWER . SOUND IN ONE CHANNEL ONLY Reverse left and right speakers by unplugging the speaker connector, turning it over and plugging it back in. OPPOSITE CHANNEL Reverse RCA inputs... - Page 20 STILL NO SOUND - See your Authorized PrecisionPower Dealer or Call 1-800-62POWER . NO SOUND IN BRIDGED MODE Check speaker wiring for short circuits or loose connections. Be sure that powerlock plugs are in place properly (screws facing up) and observe correct wiring diagram.
-
Page 21: System Diagram
PEQ-114 DEQ-230 Pro6800 IN P IN P Channel 1 HighPass Channel 3 Highpass Subwoofer Basic System Layout SYSTEM DIAGRAM Source eject Trk 1 BASS TREBLE BALANCE TRACK VOLUME LEFT RIGHT FOWARD REVERSE V ol Po we Su b Lo w M id Tr eb Channel 2... -
Page 22: System Diagram
SYSTEM DIAGRAM PAR-245 DEQ-230 To Inputs A Pro6800 IN P IN P Channel 1 HighPass Channel 3 BandPass Channel 5/6 Lowpass Subwoofer System Layout Using PSC Switch Source eject Trk 1 BASS TREBLE BALANCE TRACK VOLUME LEFT RIGHT FOWARD REVERSE V ol Po we In -C... -
Page 23: System Diagram
PAR-245 Pro6800 IN P IN P Channel 1 HighPass tweeter Channel 3 BandPass Midrange MidBass Four-Way System Layout with MidBass Amp SYSTEM DIAGRAM THREE Source eject Trk 1 BASS TREBLE BALANCE TRACK VOLUME LEFT RIGHT FOWARD REVERSE V ol Po we In -C Fa de De fe... -
Page 24: System Diagram
PMQ-210 To Inputs A Pro6800 IN P IN P Channel 1 HighPass tweeter Channel 3 BandPass Midrange Channel 5 BandPass MidBass Four-Way System Layout using a separate PC amp for Subs SYSTEM DIAGRAM FOUR Source eject Trk 1 BASS TREBLE BALANCE TRACK VOLUME... -
Page 25: System Diagram
PAR-245 PMQ-210 Pro6800 IN P IN P Left Front HighPass 200W bridged Channels 1/2 Left Rear HighPass 200W bridged Channels 3/4 400W bridged Channels 5/6 Two Pro6800 Amps bridged for Left and Right channels SYSTEM DIAGRAM FIVE Source eject Trk 1 BASS TREBLE BALANCE... -
Page 26: Block Diagram
BLOCK DIAGRAM Pro6800 INPUT ATTENUATION MUTE BACK TO CONTENTS... - Page 27 WA R R A N T Y Three-Year Limited U.S.A. Warranty This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. PrecisionPower warrants its products to be free from defects in materials and workmanship under normal use and service for a period of three (3) years from the date of original purchase when the unit is installed by an Authorized Dealer.
