- Page 1 A400.4D / A700.4D / A1000.5D / A1200.1D / A1800.1D...
- Page 2 THANK YOU AND CONGRATULATIONS Thank you for your decision to purchase an ATOM Series mobile amplifier! Our Amplifiers are the result of extensive engineering, testing, and bulletproof construction. Their versatility enables compatibility with optional signal and audio processors. These high-quality MOSFET amplifiers may be configured to allow maximum flexibility in designing different types of speaker systems.
-
Page 3: Mounting Location
INSTALLATION EXPERIENCE MOUNTING LOCATION Your ATOM Series amplifier comes with mounting feet that need to be attached to the amplifier before installation. Once the feet are in place, use the amplifier as a template and mark the four screw locations. Use caution to ensure there are no objects behind the installation surface that may become damaged during drilling. -
Page 4: Additional Specifications

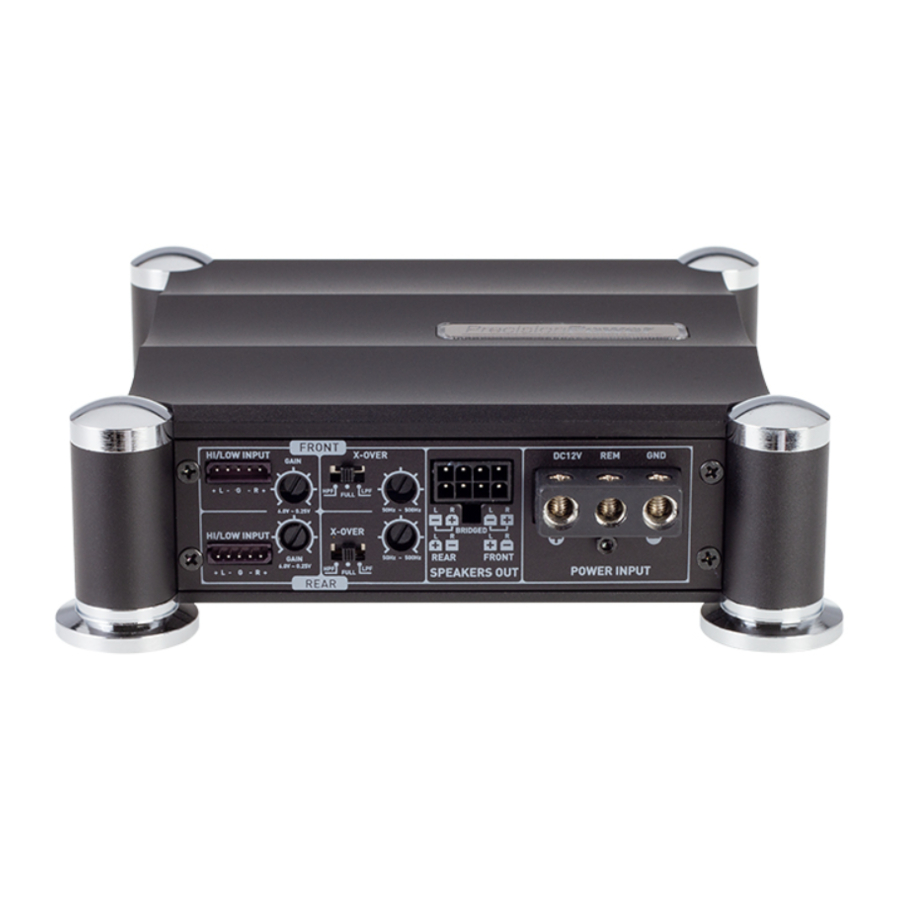

TECHNICAL FEATURES Atom amplifiers adopt the optimum class d performance, reliability, and footprint of the original Atom and ion platforms. At first glance, you’ll notice several key improvements. ATOM’s signal inputs, power/ground, and speaker connections are all relocated to the chassis's leading edge for an easier, more appealing install. - Page 5 ADDITIONAL SPECIFICATIONS A700.4D GAIN X-OVER GAIN X-OVER FRONT REAR REAR HI-INPUT + L - G - R + + L - G - R + REAR FRONT A700.4D REAR FRONT 100W x 4 @ 4-ohm Stereo • 175W x 4 @ 2-ohm Stereo •...
- Page 6 ADDITIONAL SPECIFICATIONS A1000.5D SPEAKERS OUT FUSES POWER INPUT REMOTE HI-INPUT REAR FRONT HI-INPUT + L - G - R + + L - G - R + + L - G - R + REAR FRONT A U TO TU R N O N AUTO TURN ON A U TO TU R N O N G AIN C O N T R O L...
- Page 7 ADDITIONAL SPECIFICATIONS A1200.1D REMOTE INPUT HI-INPUT + L - G - R + 10 11 400w x 1 @ 4-ohm Mono • 700w x 1 @ 2-ohm Mono • 1,200w x 1 @ 1-ohm Mono • Variable 50-500Hz 12dB Low Pass Filter •...
- Page 8 ADDITIONAL SPECIFICATIONS A1800.1D FUSES POWER INPUT SPEAKERS OUT IN PU T HI-INPUT R E M O T E DTAT LINK + L - G - R + AUTO TU R N O N G AIN C O N TR O L A1800.1D DC12V R E M...
-
Page 9: Master Mode
FUNCTIONS LINE IN (RCA) The RCA style input jacks are for use with source units that have RCA line level outputs. A source unit with a minimum of 250mV is required for proper operation. However, this input will accept levels up to 6Vrms. High Level Input If you are installing by using a high level . - Page 10 FUNCTIONS MASTER SLAVE MASTER SLAVE GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS DATA LINK A1800.1D GAIN SONIC PHASE SHIFT A1800.1D BASS BOOST LOW PASS DATA LINK 0 ° M A S T E R 0 ° M A S T E R S L A V E 0 d B ~ 1 8 d B S L A V E 6 .0 V ~ 0 .2 5 V...
- Page 11 FUNCTIONS Sub Sonic Filter Variable subsonic filter (20Hz ~50Hz) The subsonic filter will roll off all of the unwanted frequencies below 20HZ ~50Hz. This will allow the amplifier to use that wasted power on the audible bandwidth. Low pass Filter ATOM amplifier has an internal variable low pass filter.
-
Page 12: Remote Control Installation
REMOTE CONTROL INSTALLATION REMOTE SUBWOOFER LEVEL CONTROL This input allows you to add a remote that will enable you to control your ATOM amplifier's subwoofer output from your dashboard. There is a level control provided on the amplifier next to the phone jacks to adapt the amplifier to all kinds of signal sources with varying levels. - Page 13 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω FRONT GAIN + L - G - R + EJECT CD/RADIO GAIN REAR HIGH INPUT MODE 2Ω~8Ω 89.5 RADIO REAR FRONT EJECT CD/RADIO FRONT H I/LO W IN P U T X-OVER D C 12V GAIN + L - G - R +...
- Page 14 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω X -O V E R GAIN X -O V E R BASS BO O ST GAIN A700.4D 6.0V ~ 0.25V F U L L F U L L 50Hz ~ 5 0 0 H z 6.0V ~ 0.25V 50Hz ~ 5 0 0 H z 0dB ~ 1 8 d B...
- Page 15 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω X -O V E R GAIN X -O V E R BASS BO O ST GAIN A700.4D 6.0V ~ 0.25V F U L L 50Hz ~ 5 0 0 H z 6.0V ~ 0.25V F U L L 50Hz ~ 5 0 0 H z 0dB ~ 1 8 d B...
- Page 16 SPEAKER & POWER CONNECTION LOW INPUT MODE 2Ω~8Ω G A IN X -O V E R G A IN X -O V E R S U M G A IN S U B S O N IC P H A S E S H IFT B A S S B O O S T LO W P A S S A1000.5D...
- Page 17 SPEAKER & POWER CONNECTION HIGH INPUT MODE 2Ω~8Ω G A IN X -O V E R G A IN X -O V E R S U M G A IN S U B S O N IC P H A S E S H IFT B A S S B O O S T LO W P A S S A1000.5D...
- Page 18 SPEAKER & POWER CONNECTION LOW INPUT MODE 1Ω~8Ω G AIN SUB SO NIC PHASE SHIFT BASS BO O ST LO W PASS DATA LINK A1200.1D 0° 180° MASTER SLAVE 6 .0 V ~ 0 .2 5 V 2 0 H z ~ 5 0 H z 0dB ~ 18dB 50Hz ~ 500Hz at 45Hz...
- Page 19 SPEAKER & POWER CONNECTION LOW INPUT MODE 1Ω~8Ω GAIN SUB SONIC PHASE SHIFT BASS BOOST LOW PASS DATA LINK A1800.1D MASTER SLAVE 0 ° 180° 0 d B ~ 1 8 d B 6 .0 V ~ 0 .2 5 V 2 0 H z ~ 5 0 H z 50Hz ~ 500Hz a t 4 5 H z...
- Page 20 These amplifiers are designed to work within a 10 to 16.8 volt DC range. Before any wires are connected, the vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter. First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read not less than 12V.
- Page 21 PRECISIONPOWER AUTHORIZED DEALER Precision power promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Precision power’s sole and absolute discretion) should it prove to be defective in workmanship or material under normal use, for a period of *two- years from the date of purchase from the Precision power authorized dealer, PROVIDED the product was purchased and installed by a Precision power authorized dealer.
- Page 22 NOTE! This warranty does not cover labor costs for the removal and reinstallation of the amplifier unit. IN ORDER FOR THE TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF INSTALLATION BY A PRECISIONPOWER AUTHORIZED DEALER. ALL UNITS RECEIVED BY PRECISIONPOWER FOR WARRANTY REPAIR WITHOUT PROOF OF PRECISIONPOWER AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED BY THE LIMITED 1 YEAR WARRANTY.
