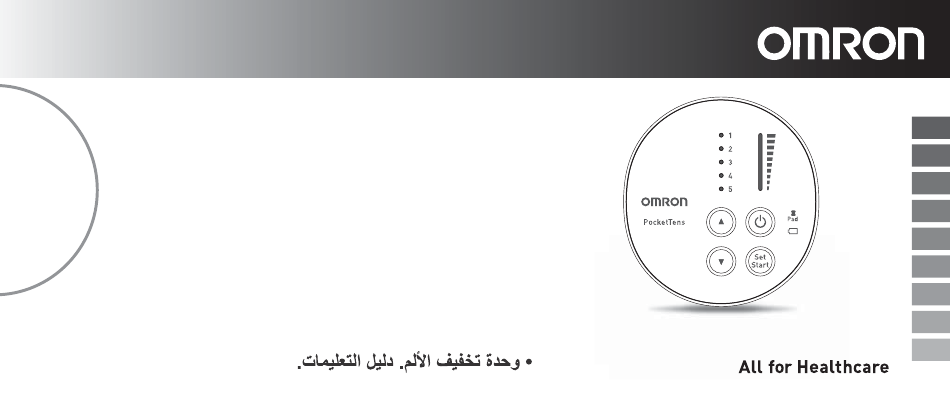

INSTRUCTION MANUAL
Pain Reliever
PocketTens (HV-F013-E)
• Pain Reliever. Instruction Manual.
• Appareil anti-douleur. Mode d'emploi.
• Schmerztherapiegerät. Gebrauchsanweisung.
• Dispositivo per il trattamento del dolore. Manuale di istruzioni.
• Dispositivo para alivio del dolor. Manual de instrucciones.
• Apparaat ter verlichting van pijn. Gebruiksaanwijzing.
• Электронейромиостимулятор для обезболивания.
Руководство по эксплуатации.
• Ağrı Giderici. Kullanım Kılavuzu.
EN
FR
DE
IT
ES
NL
RU
TR
AR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PocketTens and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron PocketTens

Summary of Contents for Omron PocketTens

  • Page 1 INSTRUCTION MANUAL Pain Reliever PocketTens (HV-F013-E) • Pain Reliever. Instruction Manual. • Appareil anti-douleur. Mode d’emploi. • Schmerztherapiegerät. Gebrauchsanweisung. • Dispositivo per il trattamento del dolore. Manuale di istruzioni. • Dispositivo para alivio del dolor. Manual de instrucciones. • Apparaat ter verlichting van pijn. Gebruiksaanwijzing.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Before Using the Unit ............... 2 How to Control and Reduce Your Pain ...........22 Introduction ....................2 When should you start therapy? ..........22 Important Safety Precautions and Warnings........3 Get to your pain early ..............22 Know Your Unit ..................10 How long should you use it? ............22 Package Contents ................

  • Page 3: Before Using The Unit

    How does it work? Medical purpose OMRON PocketTens uses Triple Action TENS (Transcutaneous OMRON PocketTens is a Pain Reliever intended for reducing and Electrical Nerve Stimulation) technology that helps to: relieving muscles and joints pain, stiffness and numbness in the back,...

  • Page 4: Important Safety Precautions And Warnings

    IMPORTANT SAFETY PRECAUTIONS AND WARNINGS It is important that you read all the warnings and precautions DANGER included in this instruction manual because they are intended to Do not use this unit with these other devices: keep you safe, prevent injury and avoid a situation that could result in (1) If you have a pacemaker, implanted defibrillator, or other damage to the unit.
  • Page 5 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS DO NOT USE THIS UNIT UNDER THESE CONDITIONS If you have suspected or diagnosed heart disease, you should Consult with your physician before using this unit. follow precautions recommended by your physician. The unit may cause lethal rhythm disturbances in certain susceptible If you have suspected or diagnosed epilepsy, you should follow individuals.
  • Page 6 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS NEVER APPLY THE PADS TO THESE BODY AREAS: Open wounds or rashes or over swollen, Both sides of the thorax red, infected or inflamed areas or skin The head, the mouth, or any area simultaneously (lateral or front and eruptions (such as varicose veins, phlebitis, of the face.
  • Page 7 Do not plug the cord into any other device that is with your physician before using this unit. not an OMRON PocketTens. If your pain does not improve, becomes seriously chronic or severe, or No modification of this unit is allowed.
  • Page 8 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS PRECAUTIONS REGARDING THE PADS Do not share pads with another person. This may cause a skin irritation or infection. Pads are intended for use by one person. Do not move the pads to another location while the unit is on. Do not use pads after Exp.
  • Page 9 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS CAUTION WHILE USING UNIT CORD Do not wash the electrode cord. MAIN UNIT Do not insert the electrode plug into any place other than the jack Please report to the manufacturer and the competent authority of the on the unit.
  • Page 10 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS PADS You may experience skin irritation or hypersensitivity due to the Use the Pads only recommended by OMRON to avoid affect the electrical stimulation or electrical conductive medium (gel). safety and effectiveness of electrical stimulation.

  • Page 11: Know Your Unit

    Instruction Manual Main Unit (1 standard) (2 “AAA” batteries INSTRUCTION MANUAL (LR03)) Front Back Pain Reliever PocketTens (HV-F013-E) * The supplied batteries are for trial use only, they may have a shorter life. Electrode Cord Long Life Pads OPTIONAL MEDICAL ACCESSORIES...

  • Page 12: Features

    Press once for “ON” and again up to 150 uses). for “OFF”. Use the pads or cord only recommended by Pad Light OMRON with this unit. Mode/Intensity Button If the pad dislodges, Pad Light Select mode and intensity 4. Automatic 15 minute shut off.

  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS ASSEMBLY STEPS Before using your unit, inspect these things. 2 Insert batteries and then install the battery cover. (Make sure signs correspond when inserting batteries). 1. Cord is not broken. 2. Pad gel is not damaged. 3. Electrode cord connection is not broken. 4.

  • Page 14: Step 3 - Snap Either Electrode Cord To Each Of The Pads

    ASSEMBLY STEPS STEP 3 – SNAP EITHER ELECTRODE CORD TO STEP 4 – REMOVE AND DISCARD PLASTIC FILM EACH OF THE PADS FROM PADS For the fi rst time, take the pads out of the sealed package. For the fi rst time, remove the clear plastic fi lm from the pads and discard it.

  • Page 15: Get Started With Your Therapy

    GET STARTED WITH YOUR THERAPY (USE FOR A MAXIMUM OF 30 MINUTES PER SESSION) STEP 1 – PAD PLACEMENT For optimal therapy: Place pads on either side of the pain, not directly on the pain. Place pads at least 2.5 cm apart. MUST USE TWO PADS at a time for therapy to work.
  • Page 16 GET STARTED WITH YOUR THERAPY STEP 1 – PAD PLACEMENT (continued) SHOULDER Attach both pads on the shoulder according to your SHOULDER pain. Attach one pad on the front and on the back of your shoulder. Do not use near the heart, on both sides of the thorax or across your chest because the introduction of electrical current may cause rhythm disturbances which could be lethal.
  • Page 17 GET STARTED WITH YOUR THERAPY STEP 1 – PAD PLACEMENT (continued) LOWER BACK LOWER BACK Attach both pads on the lower back according to your pain. Attach one pad below and Place pads on muscle of back, not on spine, for optimal therapy. above the region in pain, both on same side.
  • Page 18 GET STARTED WITH YOUR THERAPY STEP 1 – PAD PLACEMENT (continued) Outside Inside FOOT (HIP & THIGH) (CALF) (ANKLE) Attach both pads on Attach both pads on the calf Attach pads on the left for pain on the outside of either side of the area where you feel pain.
  • Page 19 GET STARTED WITH YOUR THERAPY STEP 1 – PAD PLACEMENT (continued) JOINT JOINT (ELBOW) (KNEE) Attach both pads above the knee or Attach both pads on either side above and below the joint with pain. of the joint with the pain.

  • Page 20: Step 2 - Select 1 Of 5 Modes

    GET STARTED WITH YOUR THERAPY STEP 2 – SELECT 1 OF 5 MODES How to change modes during therapy? If you want to change modes during therapy, press the Set/Start Press the Power button. button and (Up) or (Down) button to select a new mode. You Press (Up) or (Down) button to choose 1 of the 5 modes.
  • Page 21 GET STARTED WITH YOUR THERAPY STEP 2 – SELECT 1 OF 5 MODES (continued) Therapies Arm/Shoulder Lower Back Leg/Foot Knead Steady designed for Mode Light and the Back of Main Unit Potential Stiffness, sore or achy, Stiffness, soreness, muscle Swelling, fatigue, chilly Stiffness, soreness, Stiffness, soreness, conditions...

  • Page 22: Step 3 - Select Intensity Level (1 Low - 10 High)

    GET STARTED WITH YOUR THERAPY STEP 3 – SELECT INTENSITY LEVEL (1 LOW – 10 HIGH) What intensity level is my unit on? Press (Up)/ (Down) button to increase/decrease the intensity. The unit automatically starts at the intensity level of 1. The Intensity Light moves up/down after pressing it once or twice Slowly increase the intensity level by pressing (Up) button.

  • Page 23: How To Control And Reduce Your Pain

    HOW TO CONTROL AND REDUCE YOUR PAIN When should you start therapy? See warnings on page 9. Long-time treatment and strong stimulation Use as soon as your pain begins. Start with one session (the unit may cause muscular fatigue and may generate adverse effects. automatically turns off at 15 minutes).

  • Page 24: Cleaning And Storage

    5. Pads are replaceable and can be purchased. Please or the pads are difficult to attach. consult your local OMRON representatives. • Wash the pad softly with your The life of the pads may vary by how often you wash the pads, fingertips under slow running the skin condition, and how you store the pads.

  • Page 25: Cleaning The Unit

    CLEANING AND STORAGE Cleaning the unit Storing the unit and pads 1. Turn unit off and disconnect the electrode cord from the pads. • Place the unit, pads with electrode cord on pad holder, 2. Clean with a lightly moistened cloth (or a cloth soaked in a Instruction Manual inside the original box.

  • Page 26: Troubleshooting

    TROUBLESHOOTING In case of any of the below problems occurs during use, first check that no other electrical device is within 30 cm. If the problem persists, refer to the table below. If this happens... Possible causes... Try this solution... If this happens...
  • Page 27 TROUBLESHOOTING If this happens... Possible causes... Try this solution... If this happens... Possible causes... Try this solution... Have you removed Peel off film on the The skin turns red Is the pad surface Replace both pads at Pad gel does not the transparent film adhesive surface of or the skin feels...
  • Page 28 3 seconds Pad Light is blinking. Are both pads Re-attach dislocated under slow running attached to the body? pad(s) onto the skin cold water. firmly. If the above measures are not effective, visit our website (www.omron-healthcare.com) for contact information.

  • Page 29: Warranty

    Damages of any kind including personal caused accidentally or from misuse. This product is warranted by OMRON for a period of 3 years after Should (warranty) service be required please apply to the the date of purchase. The proper construction, workmanship dealer whom the product was purchased from or an authorised and materials of this product is warranted by OMRON.

  • Page 30: Specifications

    Batteries(LR03), Instruction Manual 3 months (when used for 15 minutes a day, Lower Back Mode, max. intensity). This OMRON product is produced under the strict quality system Frequency Approx. 1 to 108Hz of OMRON HEALTHCARE Co., Ltd., Japan.
  • Page 31 SPECIFICATIONS Temperature limitation Description of symbols that, depending on a model, can be found on the product itself, product sales package or IM Humidity limitation This product should not be used by persons with medical implants, e.g. heart pacemakers, artificial Atmospheric pressure limitation heart, lung or other electronic life support systems.

  • Page 32: Important Information Regarding Electro Magnetic Compatibility (Emc)

    Further documentation in accordance with this EMC standard is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual or at www.omron-healthcare.com. Refer to the EMC information for PocketTens on the website. Correct Disposal of This Product (Waste Electrical &...
  • Page 34 Manufacturer Produttore Производитель OMRON HEALTHCARE Co., Ltd. Fabricant Fabricante Üretici 53, Kunotsubo, Terado-cho, Muko, KYOTO, Hersteller Fabrikant 617-0002 JAPAN EU-representative Rappresentante per l’UE Представитель в ЕС OMRON HEALTHCARE EUROPE B.V. Mandataire dans l’UE Representante en la UE AB temsilcisi Scorpius 33, 2132 LR Hoofddorp, EU-Repräsentant...
