KNX TH65-AP
Thermo-Hygrometer
Item number 70184
Installation and Adjustment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX TH65-AP and is the answer not in the manual?

Questions and answers

Related Manuals for Elsner KNX TH65-AP

Summary of Contents for Elsner KNX TH65-AP

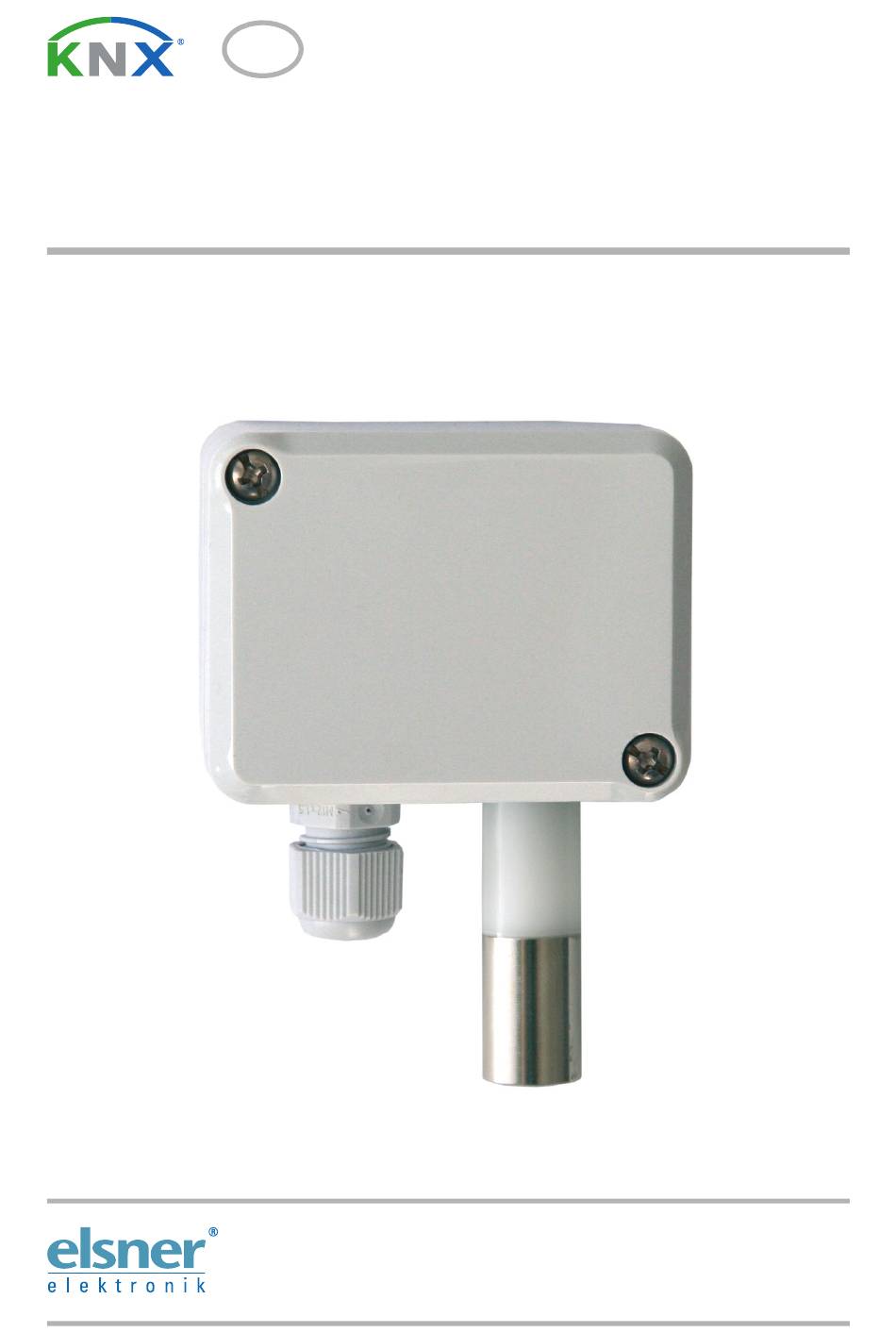

  • Page 1 KNX TH65-AP Thermo-Hygrometer Item number 70184 Installation and Adjustment...

  • Page 3: Table Of Contents

    6.10.2. AND logic connection inputs ..............31 6.10.3. OR logic connection inputs ................ 32 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Thermo-Hygrometer KNX TH65-AP • from software version 0.2.0, ETS programme version 2.0 Version: 27.01.2020. Technical changes and errors excepted.
  • Page 4 The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to- date version of the manual is available.

  • Page 5: Description

    Colour Grey Mounting On-wall Protection category Casing: IP65 Outside sensor: IP43 Dimensions approx. 65 × 91 × 38 (W × H × D, mm) Weight approx. 80 g Thermo-Hygrometer KNX TH65-AP • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 6: Installation And Commissioning

    There are unprotected live components inside the device. • National legal regulations are to be followed. • Ensure that all lines to be assembled are free of voltage and take precautions against accidental switching on. Thermo-Hygrometer KNX TH65-AP • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 7: Location

    Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions.

  • Page 8: Mounting And Connection

    The device is supplied with the bus address 15.15.255. You can program another ad- dress into the ETS by overwriting the 15.15.255 address or by teaching via the pro- gramming button. Thermo-Hygrometer KNX TH65-AP • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 9: Maintenance

    ATTENTION The device can be damaged if significant volumes of water penetrate the housing. • Do not clean with high pressure cleaners or steam jets. Thermo-Hygrometer KNX TH65-AP • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 10: Transfer Protocol

    9,001 C R W T U value Temp. threshold value 3: (1:+ | 0:-) Input 1,006 Temp. threshold value 3: Switching Output 1,001 C R T output KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 11 C R W T U night Temp. controller: Heating setpoint, Input 1,002 night (1:+ | 0:-) Temp. controller: Cooling setpoint, Input / Output 9,001 C R W T U night KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 12 Switching output block Humidity controller: Blocking Input 1,006 object Humidity controller: Setpoint Input / Output 9,007 C R W T U Humidity controller: Setpoint Input 1,006 (1:+ | 0:-) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 13 AND logic 3: 8-bit output A Output 5,010 C R T AND logic 3: 8-bit output B Output 5,010 C R T AND logic 4: 1-bit output 1,001 C R T KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 14 OR logic 4: 8-bit output A Output 5,010 C R T OR logic 4: 8-bit output B Output 5,010 C R T Software version Output 217,001 C R T KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 15: Setting Parameters

    • ... • 20 messages per second Use malfunction object No • Yes 6.3. Measured values: Temperature, humidity The settings options for temperature and readings are the same. KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 16: Threshold Values: Temperature, Humidity

    The values are not retained after a reset. 6.4. Threshold values: Temperature, humidity Activate the threshold values that you want to use here. The KNX TH65-AP thermal hygrometer provides four threshold values for temperature and two threshold values for air humidity.
  • Page 17 None • 1 s • 2 s • 5 s • 10 s • … • 2 h Switching delay from 1 to 0 None • 1 s • 2 s • 5 s • 10 s • … • 2 h KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 18: Temperature Pi Control

    Switching output sends on change to 0 and periodically 6.5. Temperature PI control Activate the control if you want to use it. Use control No • Yes KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 19 (when switched by means of a "dead zone") Value of the switching object before first 0 • 1 call (when switched by means of a switching object) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 20 • Increase / Decrease Interval 0.1°C • 0.2°C • 0.3°C • 0.4°C • 0.5°C • 1°C • (only when "increasing/decreasing") 2°C • 3°C • 4°C • 5°C KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 21: Heating Control Level 1/2

    On release, the control variable follows the rule again. When blocked, the control variable shall • not be sent • send a specific value Value (in %) 0...100 (if a value is sent) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 22 1 bit object (on/off) or an 8 bit object (on with percentage/off). Control variable is a • 1 bit object • 8 bit object Value (in %) 0...100 (for 8 bit object) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 23: Cooling Control Level 1/2

    (observe manufacturer's instructions). Maximum control variable is reached 1°C • 2°C • 3°C • 4°C • 5 °C at setpoint/actual difference of Reset time in min. 1...255; 30 KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 24 1 bit object (on/off) or an 8 bit object (on with percentage/off). Control variable is a • 1 bit object • 8 bit object Value (in %) 0...100 (for 8 bit object) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 25 "after power restora- tion") Limitation of object value H(min)\r\n -300 … 800 in 0.1°C Limitation of object value H(max)\r\n -300 … 800 in 0.1°C KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 26: Humidity Pi Control

    If you activate humidity control, you can use the following settings to define control type, setpoints, and humidification and dehumidification. Use controller No • Yes General control KNX TH65-AP thermal hygrometer can be used to control one- or two-stage dehu- midification or combined humidification/dehumidification. Type of control • One-stage dehumidification • Two-stage dehumidification •...
  • Page 27 (only if both humidification and dehumidifi- cation are used) Humidification starts when the relative air humidity is below or equal to the setpoint - dead zone value. KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 28: Dewpoint

    0,1°C • 0,2°C • 0,5°C • 1,0°C • 2,0°C • 5,0°C (if sent on change) Send cycle 5 s • 10 s • 30 s • 1 min • … • 2 h (if sent periodically) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 29: Coolant Temp. Monitoring

    2% • 5% • 10% • 25% • 50% (if sent on change) Send periodically every 5 s • 10 s • 30 s • 1 min • … • 2 h (if sent periodically) KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 30 = 1  send 1 Switching output sends on change to 1 and periodically if switching output = 0  send 0 Switching output sends on change to 0 and periodically KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 31: Absolute Humidity

    Setting parameters 6.8. Absolute humidity The absolute humidity value for the air is determined from the KNX TH65-AP and can be output to the bus. Use absolute humidity No • Yes Send pattern • never • periodically • on change •...

  • Page 32: Logic

    (see the chapter Connection inputs for AND or OR logic) Logic output sends • never sends • sends one 1-bit object • sends two 8-bit objects KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 33: And Logic Connection Inputs

    Communication object logic input 7 inverted Communication object logic input 8 Communication object logic input 8 inverted Temperature threshold value 1 Temperature threshold value 1 inverted: Temperature threshold value 2 KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.

  • Page 34: Or Logic Connection Inputs

    AND logic output 2 AND logic output 2 inverted AND logic output 3 AND logic output 3 inverted AND logic output 4 AND logic output 4 inverted KNX TH65-AP thermal hygrometer • Version: 27.01.2020 • Technical changes and errors excepted.
  • Page 36 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
