BlueLine PowerCost Monitor Setup Manual page 2

Display Unit - Icons And Buttons
Now that you have installed your PowerCost Monitor™ Sensor Unit successfully, you must
program your Display Unit.

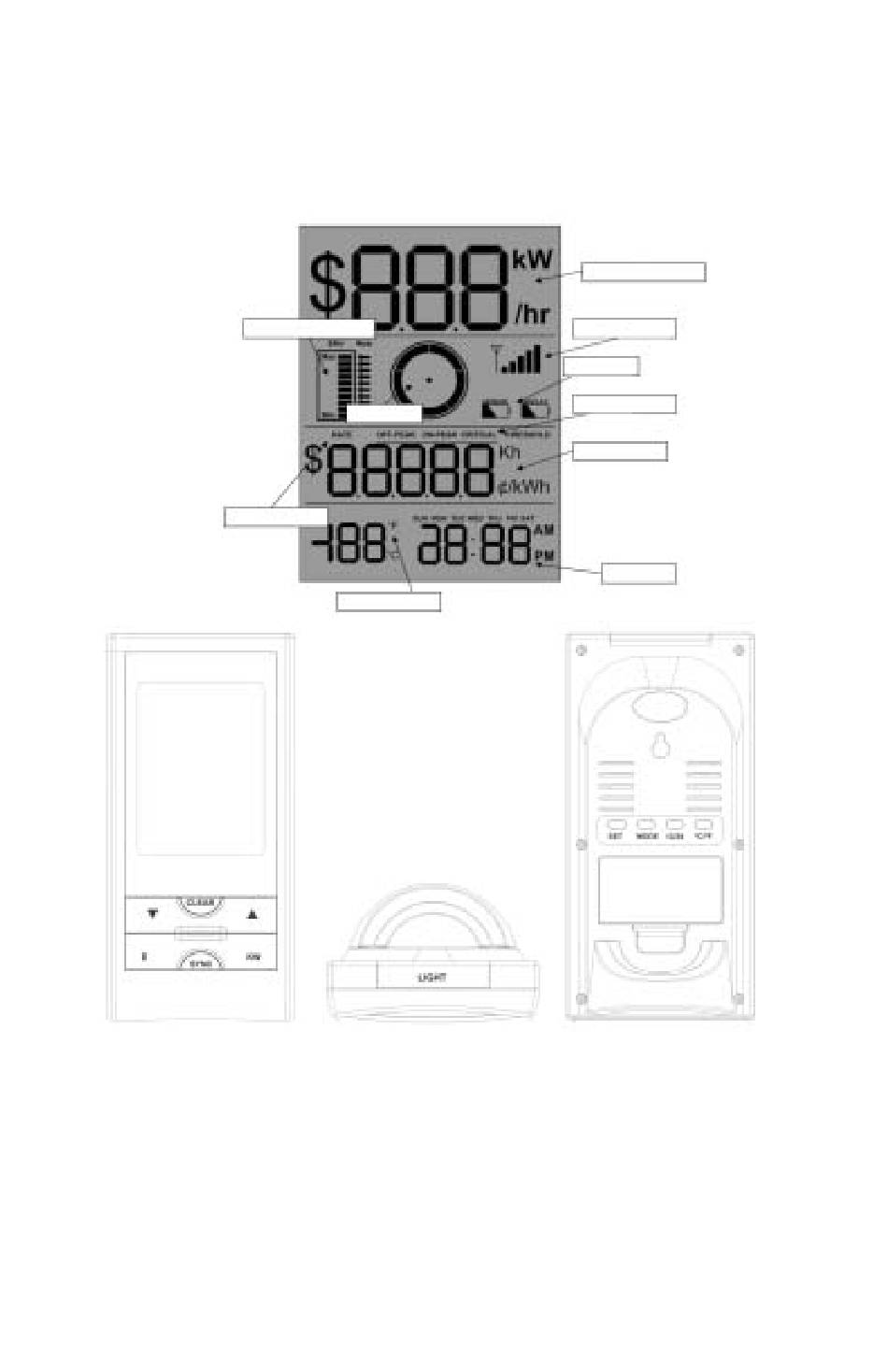

The pictures below illustrate all the various icons and values that can be displayed at any
given time on your Display Unit, as well as the locations of all the available buttons.
Tiered Rate Indicator
Icon/Button
Disk Emulator
Consumption
History
Battery Levels
Consumption History Indicator
Disk Emulator
Outside Temperature
Purpose
When spinning, indicates that the Display Unit is receiving
a signal from the Sensor Unit. The higher the energy consumption,
the faster the disk emulator spins.
Graphical representation of the power consumption over the
last 7 days. See the User Manual for more detailed explanations
Status of the Display Unit and Sensor Unit batteries. When a battery
is fresh, the icon is not visible; the black area on the icon increases
as the battery becomes depleted.
Current Values ($ and kWh)
Signal Quality Indicator
Battery Levels
Time-of-Use Indicators
Totals ($ and kWh)
Day and Time
