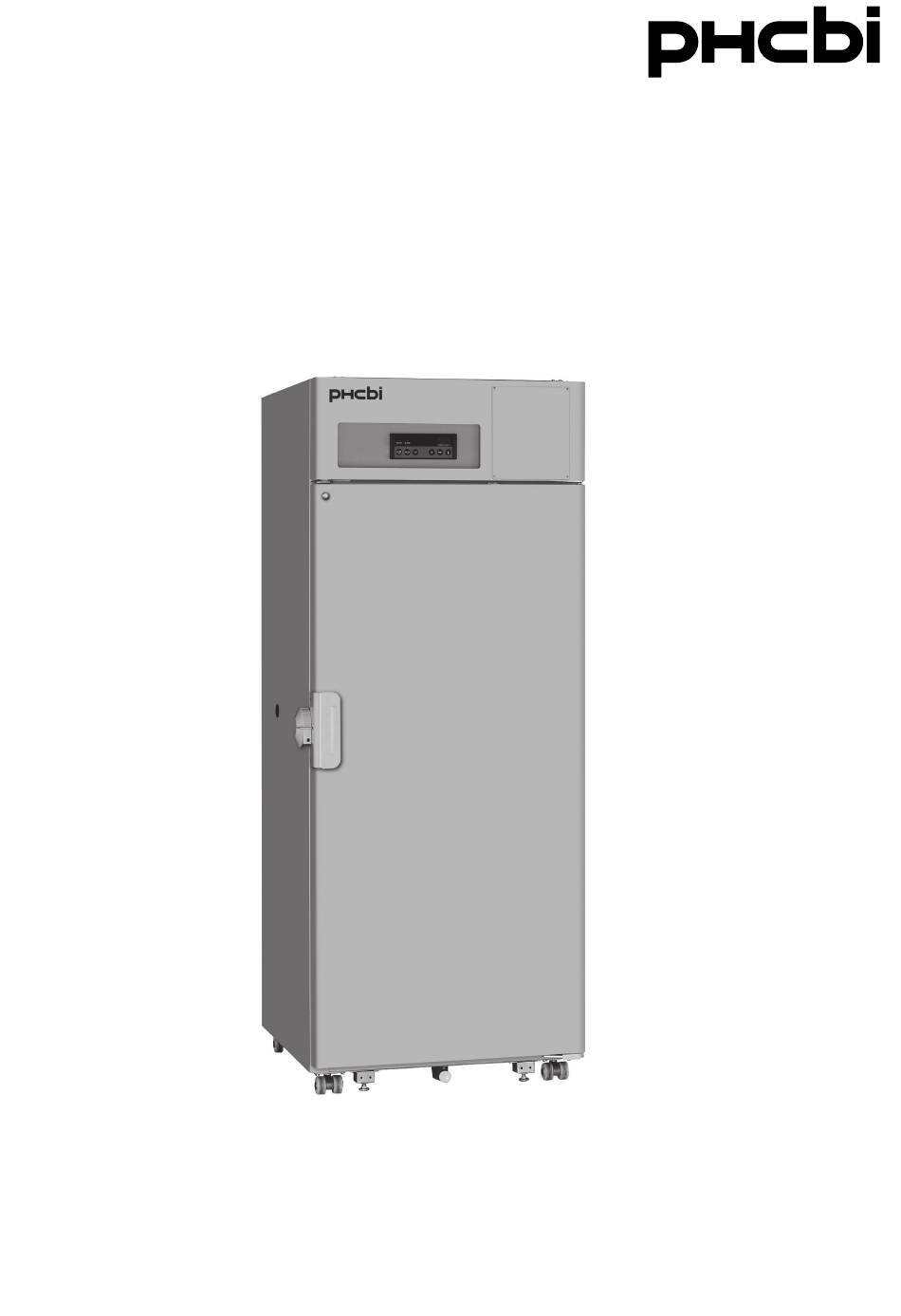

- Page 1 Operating Instructions Biomedical Freezer MDF-U731M Series Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 28 for all model numbers.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION P. 2 PRECAUTIONS FOR SAFE OPERATION P. 3 ENVIRONMENTAL CONDITIONS P. 7 FREEZER COMPONENTS P. 8 Freezer unit P. 8 Control panel P. 10 INSTALLATION SITE P. 11 INSTALLATION P. 12 START-UP OF UNIT P. 12 TEMPERATURE SETTING P. -
Page 4: Introduction
INTRODUCTION ■ Read the operating instructions carefully before using the appliance and follow the instructions for safety operation. ■ PHC Corporation never guarantees any safety if the appliance is used for any objects other than intended use or used by any procedures other than those mentioned in the operating instructions. ■... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 PRECAUTIONS FOR SAFE OPERATION WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
- Page 8 PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Connect the power supply plug to the power source firmly after removing the dust on the plug.
-
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): ■ Indoor use; ■ Altitude up to 2000 m; ■ Temperature 5 C to 40 ■ Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ■... -
Page 10: Freezer Components
FREEZER COMPONENTS Freezer unit Drain cap <Inside of the front cover>... - Page 11 FREEZER COMPONENTS 1. Lock: Turn clockwise to 180 with a key and the door is securely locked. 2. Magnetic door gasket: This prevents the cold air from escaping. Always keep clean. 3. Handle: Always grip this handle to open and close the outer door. 4.
-
Page 12: Control Panel
FREEZER COMPONENTS Control panel DOOR ALAR 1. Door check lamp (DOOR): This lamp is lit when the door is open. 2. Alarm lamp (ALARM): This lamp is flashed during alarm condition. 3. Temperature display: This indicator shows the chamber temperature, set temperature, or error code. -
Page 13: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: ■ A location not subjected to direct sunlight Do not install the unit under direct sunlight. Installation in a location subjected to direct sunlight cannot obtain the intended performance. -
Page 14: Installation
INSTALLATION 1. Removing the packaging materials and tapes Remove all transportation fixed metal fittings (the side of the left) (Fig. 1) and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. -
Page 15: Start-Up Of Unit
START-UP OF UNIT Use the following procedure to start trial operation or actual operation of the unit. 1. A power supply plug is connected with the power supply without putting samples in the product. 2. A power switch and a battery switch are turned on. 3. -
Page 16: Key Lock Function
KEY LOCK FUNCTION This unit is provided with the key lock function. When the key lock is ON, change of the setting through the key pad is not available. The key lock is set in OFF at the factory. Display Mode Function L o 0... -
Page 17: Alarm Temperature Setting
ALARM TEMPERATURE SETTING This unit is provided with both high and low temperature alarms. The temperature at which the alarm is activated may be changed. The available set range for high temperature alarm is between +5 C and +15 C, and -5 C and -15 for low temperature alarm against the chamber temperature. -
Page 18: Alarm Functions
ALARMS FUNCTIONS This unit has the alarm functions shown below. Contact our company sales representative or agent after moving the storage items to other refrigerator or freezer if the alarm status continues because there is a possibility of any failure. Alarm &... -
Page 19: Self Diagnostic Functions
SELF DIAGNOSTIC FUNCTIONS This unit has the self diagnostic functions shown below. Contact our company sales representative or agent if an error code (ex. E01) is displayed resulting from the self diagnostic. Alarm & Safety Situation Indication Buzzer Remote alarm terminal Alarm lamp is flashed. -
Page 20: Maintenance
MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 21: Defrosting
MAINTENANCE Defrosting Use the scraper provided for removing the frost if the freezer operation must be continued. Pay attention not to impact or damage the inner wall. 1. When defrosting, move all the contents of containers in the freezer to another low temperature freezer. 2. -
Page 22: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy The chamber is not cooled □ The circuit breaker of power source is active. at all □ The voltage is too low? (In this case, call an electrician.) □... -
Page 23: Disposal Of Unit
DISPOSAL OF UNIT WARNING If the unit is to be stored unused in an unsupervised area for an extended period ensure that children do not have access and doors cannot be closed completely. The disposal of the unit should be accomplished by appropriate personnel. Always remove doors to prevent accidents such as suffocation. - Page 24 DISPOSAL OF UNIT (English) Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
- Page 25 DISPOSAL OF UNIT (French) L’élimination des équipements et des batteries usagés Applicable uniquement dans les pays membres de l’Union européenne et les pays disposant de systèmes de recyclage. Apposé sur le produit lui-même, sur son emballage, ou figurant dans la documentation qui l’accompagne, ce pictogramme indique que les piles, appareils électriques et électroniques usagés, doivent être séparées des ordures ménagères.
- Page 26 DISPOSAL OF UNIT (Portuguese) Eliminação de Equipamentos Usados e Baterias Apenas para a União Europeia e países com sistemas de reciclagem Estes símbolos nos produtos, embalagens, e/ou documentos que os acompanham indicam que os produtos elétricos e eletrónicos e as baterias usados não podem ser misturados com os resíduos urbanos indiferenciados.
- Page 27 DISPOSAL OF UNIT (Dutch) Het ontdoen van oude apparatuur en batterijen. Enkel voor de Europese Unie en landen met recycle systemen. Deze symbolen op de producten, verpakkingen en/of begeleidende documenten betekenen dat gebruikte elektrische en elektronische producten en batterijen niet samen mogen worden weggegooid met de rest van het huishoudelijk afval.
-
Page 28: Replacement Of Wear-Out Parts
REPLACEMENT OF WEAR-OUT PARTS Replacement of battery for power failure alarm Replace the battery for power failure alarm every 3 years to ensure the alarm is operated in the event of power failure. Contact our sales representative or agent for the replacement of battery. ... -
Page 29: Specifications
SPECIFICATIONS Biomedical Freezer Product name MDF-U731M External dimensions W770 mm x D830 mm x H1955 mm Internal dimensions W650 mm x D700 mm x H1520 mm Effective capacity 690 L Exterior Painted steel Interior Painted steel Door Painted steel Lock Insulation Rigid polyurethane foamed-in place Polyethylene coated wire... -
Page 30: Performance
PERFORMANCE Biomedical Freezer Product name MDF-U731M Model number MDF-U731M-PA MDF-U731M-PE Cooling performance C to -30 C (ambient temperature; 5 C to 35 C, no load) Rated voltage AC 115 V AC 230 V/240 V Rated frequency 60 Hz 50 Hz Rated power consumption 235 W 230 W/240 W... -
Page 31: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Freezer contents : □ □ Risk of infection: □ □ Risk of toxicity: □... - Page 32 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Taiwan LDCL047500-0 © PHC Corporation 2018 T0418-0...
