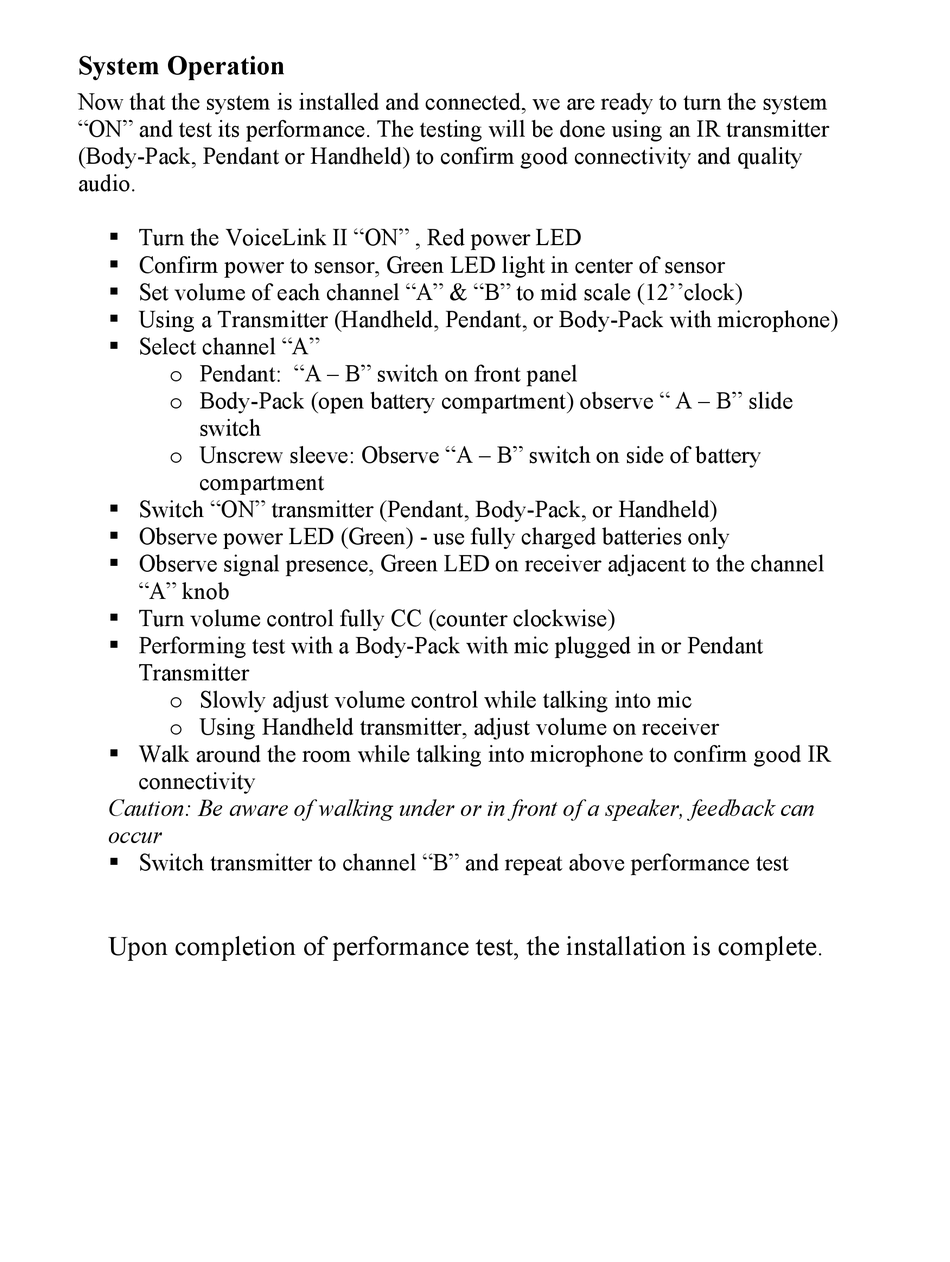

System Operation

Now that the system is installed and connected, we are ready to turn the system
"ON" and test its performance. The testing will be done using an IR transmitter
(Body-Pack, Pendant or Handheld) to confirm good connectivity and quality
audio.
 Turn the VoiceLink II "ON" , Red power LED
 Confirm power to sensor, Green LED light in center of sensor
 Set volume of each channel "A" & "B" to mid scale (12''clock)
 Using a Transmitter (Handheld, Pendant, or Body-Pack with microphone)
 Select channel "A"
o Pendant: "A – B" switch on front panel
o Body-Pack (open battery compartment) observe " A – B" slide
switch
o Unscrew sleeve: Observe "A – B" switch on side of battery
compartment
 Switch "ON" transmitter (Pendant, Body-Pack, or Handheld)
 Observe power LED (Green) - use fully charged batteries only
 Observe signal presence, Green LED on receiver adjacent to the channel
"A" knob
 Turn volume control fully CC (counter clockwise)
 Performing test with a Body-Pack with mic plugged in or Pendant
Transmitter
o Slowly adjust volume control while talking into mic
o Using Handheld transmitter, adjust volume on receiver
 Walk around the room while talking into microphone to confirm good IR
connectivity
Caution: Be aware of walking under or in front of a speaker, feedback can
occur
 Switch transmitter to channel "B" and repeat above performance test
Upon completion of performance test, the installation is complete.
