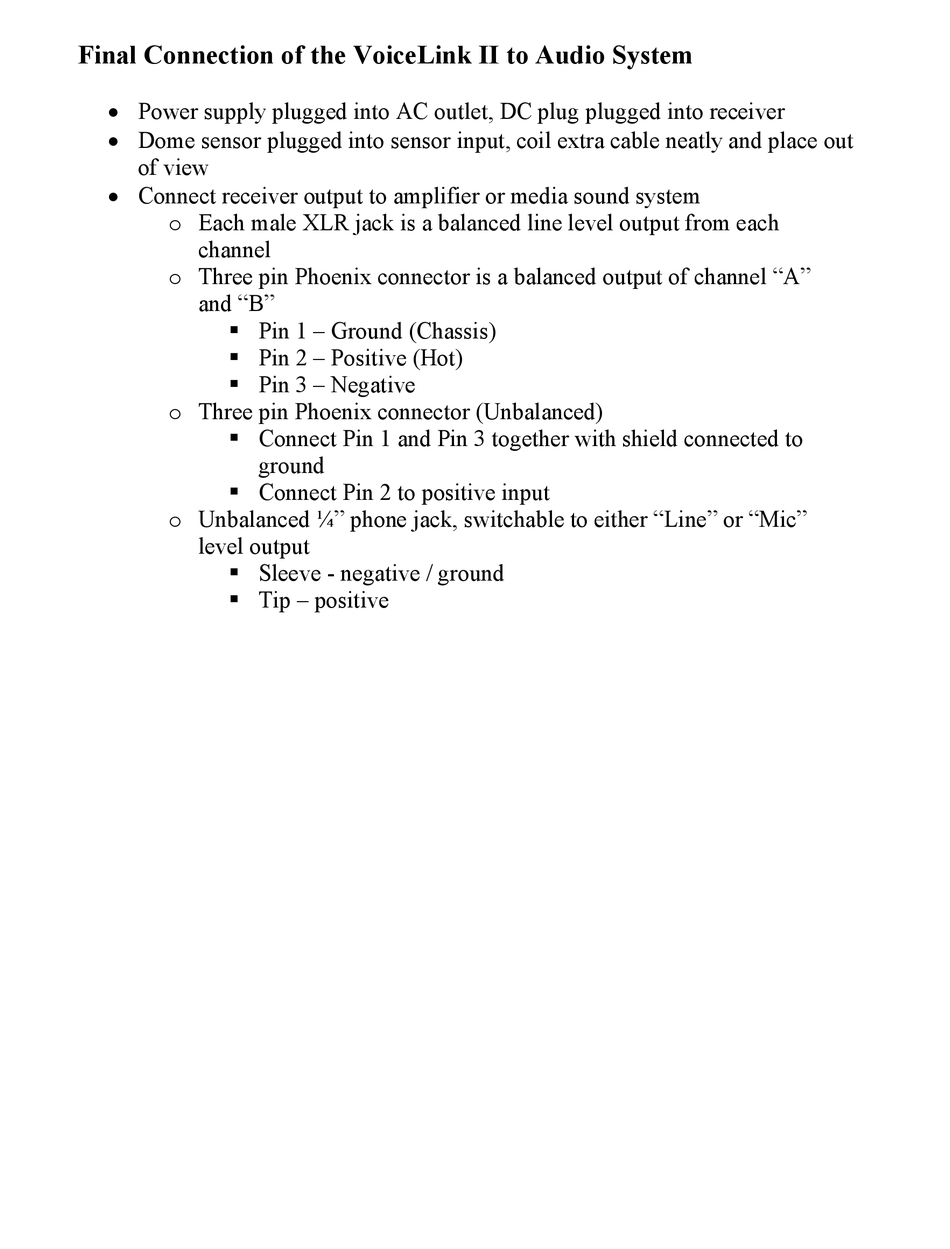

Tech Logic VoiceLink II User Manual page 17

Final Connection of the VoiceLink II to Audio System
 Power supply plugged into AC outlet, DC plug plugged into receiver
 Dome sensor plugged into sensor input, coil extra cable neatly and place out
of view
 Connect receiver output to amplifier or media sound system
o Each male XLR jack is a balanced line level output from each
channel
o Three pin Phoenix connector is a balanced output of channel "A"
and "B"
 Pin 1 – Ground (Chassis)
 Pin 2 – Positive (Hot)
 Pin 3 – Negative
o Three pin Phoenix connector (Unbalanced)
 Connect Pin 1 and Pin 3 together with shield connected to
 Connect Pin 2 to positive input
o Unbalanced ¼" phone jack, switchable to either "Line" or "Mic"
level output
 Sleeve - negative / ground
 Tip – positive
ground
