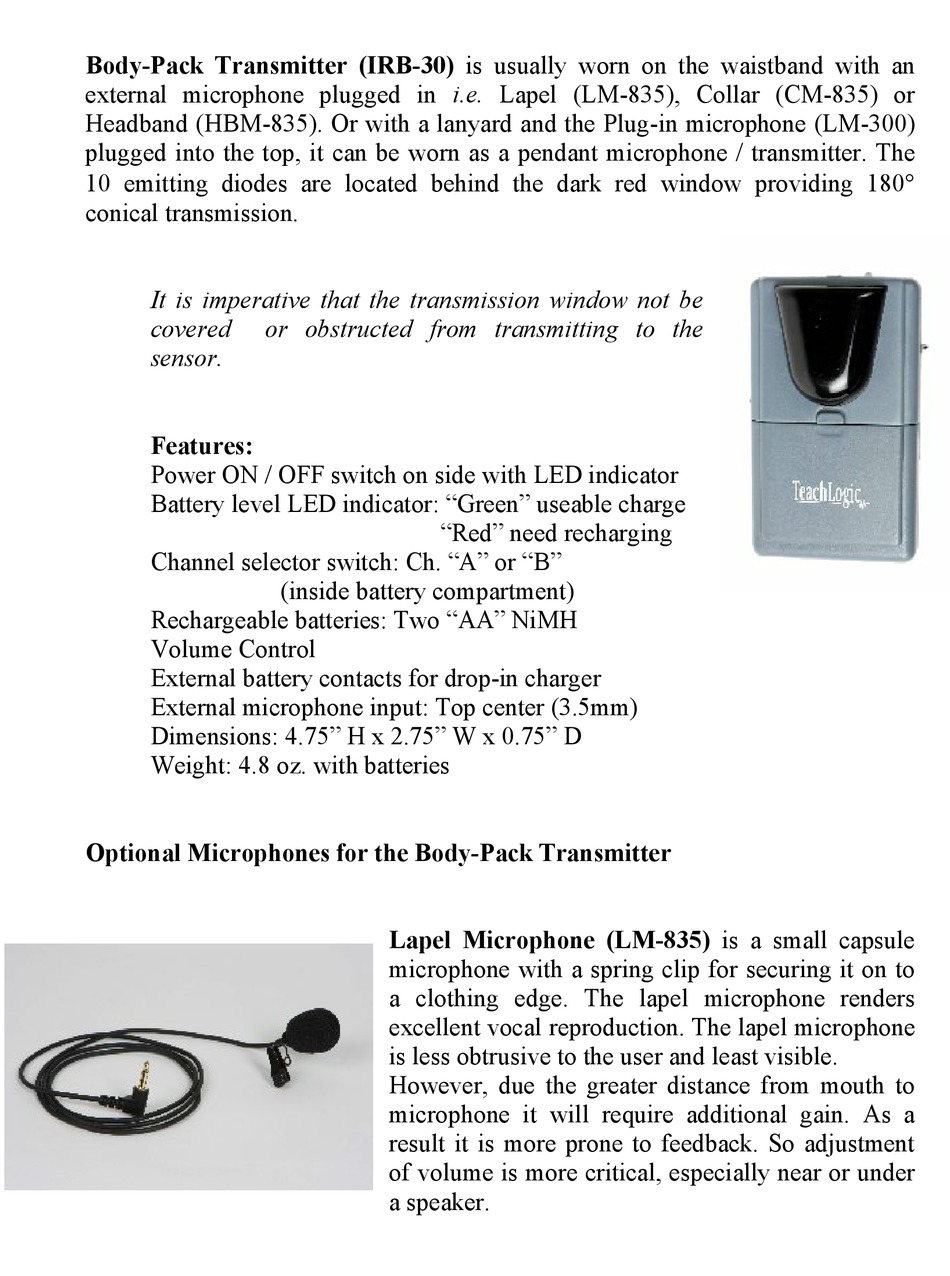

Body-Pack Transmitter (IRB-30) is usually worn on the waistband with an
external microphone plugged in i.e. Lapel (LM-835), Collar (CM-835) or
Headband (HBM-835). Or with a lanyard and the Plug-in microphone (LM-300)
plugged into the top, it can be worn as a pendant microphone / transmitter. The
10 emitting diodes are located behind the dark red window providing 180
conical transmission.
It is imperative that the transmission window not be
covered
sensor.
Features:
Power ON / OFF switch on side with LED indicator
Battery level LED indicator: "Green" useable charge
Channel selector switch: Ch. "A" or "B"
Rechargeable batteries: Two "AA" NiMH
Volume Control
External battery contacts for drop-in charger
External microphone input: Top center (3.5mm)
Dimensions: 4.75" H x 2.75" W x 0.75" D
Weight: 4.8 oz. with batteries
Optional Microphones for the Body-Pack Transmitter
or obstructed from transmitting to the
"Red" need recharging
(inside battery compartment)
Lapel Microphone (LM-835) is a small capsule
microphone with a spring clip for securing it on to
a clothing edge. The lapel microphone renders
excellent vocal reproduction. The lapel microphone
is less obtrusive to the user and least visible.
However, due the greater distance from mouth to
microphone it will require additional gain. As a
result it is more prone to feedback. So adjustment
of volume is more critical, especially near or under
a speaker.
