Part number: A51 Z0 9 0246 CRE Technology believes that all information provided herein is correct and reliable and reserves the right to update at any time. CRE Technology does not assume any responsibility for its use. E & O E.
Page 2
For further information, please contact your CRE technology distributor or the After-Sales Service Team. All CRE Technology products are delivered with one year warranty, and if necessary we will be happy to come on site for product commissioning or troubleshooting. The company also provide specific trainings on our products and softwares.
Page 3
Details for Windows 8 settings. Documentations available on CRE technology Web site: A51 Z0 9 0004: Technical documentation for UNIGEN / UNIGEN PLUS. A51 Z3 9 0004: Technical documentation for UNIGEN ILS. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...

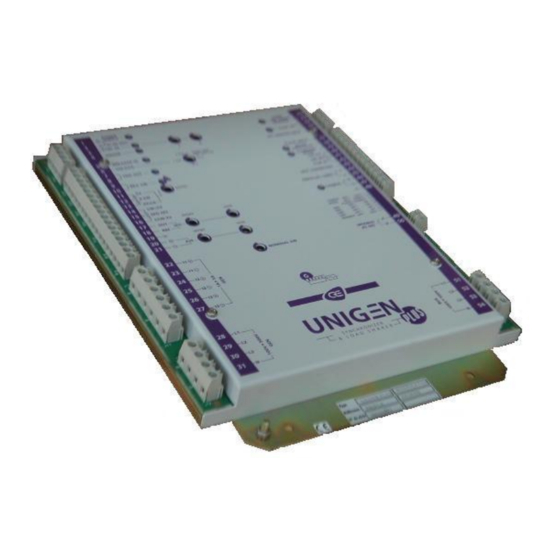

This document describes how to connect a computer running Microsoft Windows 7 or Windows 8 operating system to a UNIGEN module using an RS232 serial communication port. The same method also applies under previous versions of Windows such as Windows XP and Windows Vista but the layout in the configuration panel and the dialog boxes may differ depending on the operating system.
1 Installing the standard modem Click on “Start>Control Panel>Device Manager ” Right click on your computer’s name (see below) Add legacy hardware” Click on “ Next The Add hardware wizard appears: click on “ ”. Select “Install the hardware that I manually select from a list (Advanced)” A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 6
Modems” Next” Choose the hardware type “ and click on “ Next” Select “ and click on “ Don’t detect my modem; I will select it from a list” A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 7
Have Disk Click on « » button and browse to the CRE technology driver file “mdm_CRE.inf”. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 8
Next Select “ CRE technology – serial modem ” and click on « ». Next Choose the COM port on which you connect Gensys and click on « ». Finish Click on « » button. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
2 Create a dial-up connection Click on “Start > Control panel > Network and Sharing center”. Click on “Connect to a network”. On Windows 7: select “Setup a dial-up connection”, on Windows 8 select “Connect to a workplace” and then select “Dial directly”. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 10
Now select the modem you have just installed on previous chapter. Type in “123” for both phone number and password. Fill in the form as shown below and then click on “connect”. Note: you may need to activate dialing rules, either by using “Dialing rules” in the window above or through control panel section “Phone and Modem”.
Page 11
Connection will fail as shown on the next picture. Click on “Setup the connection anyway” and then close the window. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 12
Click on “Start > Control panel > Network and Sharing center”. Click on “Connect to a network” and select the dial-up connection you have just created. Right click on it and select “Properties”. Verify that the proper modem is checked and click on “Configure”. Make sure the maximum speed is set to 19200bps and that only the hardware flow control box is checked.
Page 13
Click on “Options” tab and setup as shown below (left or right picture depending on your operating system). Click on “PPP” and make sure that no option is checked then click “OK”. Select “Security” tab and set it up as shown below. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 14
Select “Networking” tab and check only the box next to Internet Protocol Version 4. Select this line and click on “Properties”. “Use the following IP address:” “192.168.11.2” for your computer (CRE technology module address is set to 192.168.11.1). A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 15
Click on “Advanced…” button and set all tabs as shown on the three pictures below Click on “OK” to save the new settings. A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
3 Updating Windows “Hosts” file Note that administrative rights are required on your computer to follow this procedure. You should first make sure Windows display file extensions properly in your file explorer. To do so follow the next steps. 1. Open the Control Panel from the Start menu and select Folder Options in the Control Panel. Note: If Folder Options is not available, change View by to Large icons at the top right of the Control Panel.
Page 17
You may now proceed with Windows hosts file as described below. Go to C:\Windows\System32\drivers\etc\hosts and select “hosts” file. Right click on this file and select “Open”. Select Notepad application A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 18
Insert a line containing “192.168.11.1 unigen” in the hosts file as shown below and save the file. Notepad will probably tell you that the hosts file is set as read only. Notepad will then propose you to save the file in another folder: ...
Start “Internet Explorer” and open “Tools/Internet Options”. Select “Security” tab and click on “Trusted sites” icon then click on “Sites” button. Make sure the checkbox at the bottom of the window is not checked, enter URL http://unigen then click on “Add” button.
Page 20
Restart Internet Explorer, connect using the UNIGEN dial-up connection and enter http://unigen into your Web browser. Check that Java applets are now working correctly on the “Information” page of the module’s embedded Web site. Your computer is now fully setup to connect to your module.
Technical support: +33 (0)4 92 38 86 86 (office hours: 8.30AM-12AM / 2PM-6PM GMT+1). Email: support@cretechnology.com SKYPE: support-cretechnology.com Figure 1 – Access to CRE Technology A51 Z0 9 0246 B EN - TCP-IP connection under Windows 7 and 8.docx...
Page 22
Agents Figure 2 - CRE Technology distributors CRE Technology retains all copyrights in any text, graphic images, and software owned by CRE Technology and hereby authorizes you to electronically copy documents published herein solely for the purpose of transmitting or viewing the information.
