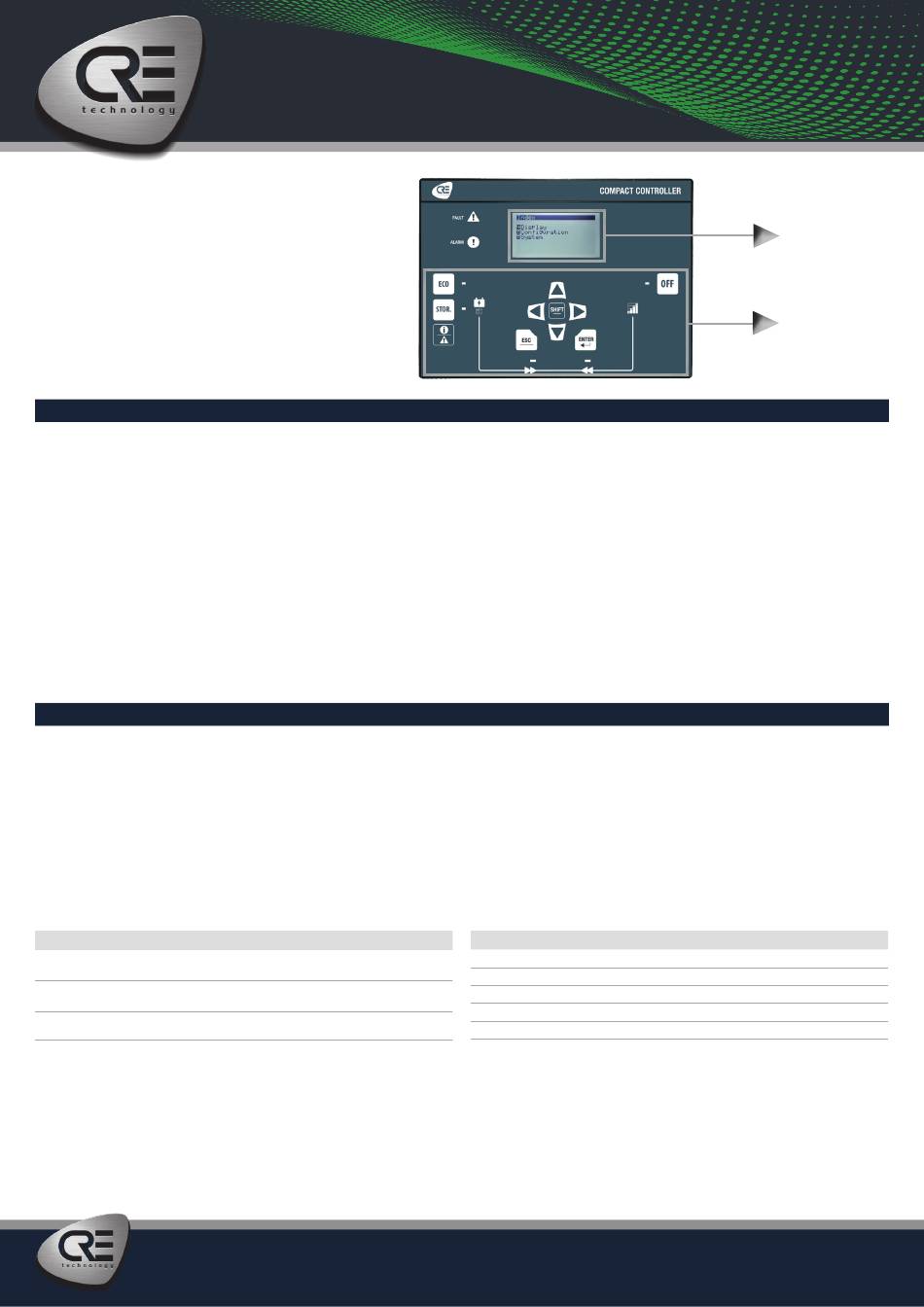

CRE Technology BAT COMPACT Quick Start

The purpose of this document is to allow a fast and easy
handling of the product, nevertheless it is essential that you
refer to the technical documentation (latest version always
available on our website www.cretechnology.com) for the
commissioning.
For any further information on this product, please contact
your local distributor or agent or directly our support team.
• All our products have a 1 year warranty
• Help desk: +33 492 38 86 86
• E-mail: support@cretechnology.com
OPERATIONNAL MODES

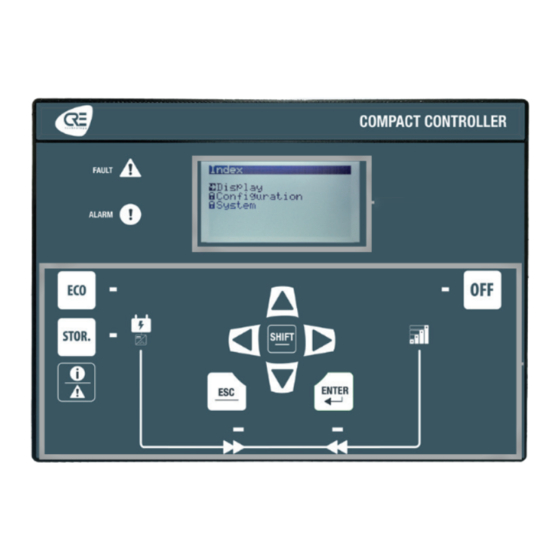

The controller can be configured and controlled using the buttons of the front panel:
• The arrows, ESC and ENTER buttons are dedicated to navigation for displaying measurements and parameters, and for configuring the controller.
• The SHIFT button is used to reset faults when combined with the alarms/faults button
• The ECO button switches to a mode that prioritize battery discharging when necessary and possible.
• The STORAGE button switches to a mode that prioritize battery charging whenever possible.
• The OFF button is used to open the inverter's internal power relay or an external circuit breaker.
MENUS
When the controller is powered up, the home page appears on the screen. The content of this page is dynamic, depending on the status of the power plant. Press "ENTER" to access the index page of
available menus:
• Supervision : Use the arrow buttons to select this menu, then press "ENTER" to access the supervision pages.
• Settings : Use the arrow buttons to select this menu, then press "ENTER" to access the settings pages. A password is required to define the operating mode. To enter the password: Use
the "↑" and "↓" buttons to change character, move to the next/previous character with the "→" and "←" buttons, confirm password by pressing "ENTER". The operating modes are the
following:
• Standard: Provides access to the basic settings recommended to start commissioning your application. The default password is "1".
• Advanced: Provides access to all settings for optimum application commissioning. For complex settings not available on the controller front panel, use the i4Gen Suite software (Easy-
Flex, scheduler, alternative selection, etc.). The default password is "1234".
THE DIFFERENT MENUS WILL APPEAR AS FOLLOW
SUPERVISION
BUS Bus electrical measures: powers and power factor.
Battery storage electrical measures: frequency, voltage, powers,
BATTERY STORAGE
currents, power factor and SOC.
INPUTS/OUTPUTS Real time displays for digital I/Os, and CANopen digital I/Os.
Information about hardware and firmware: serial number, firmware
ABOUT
version.
