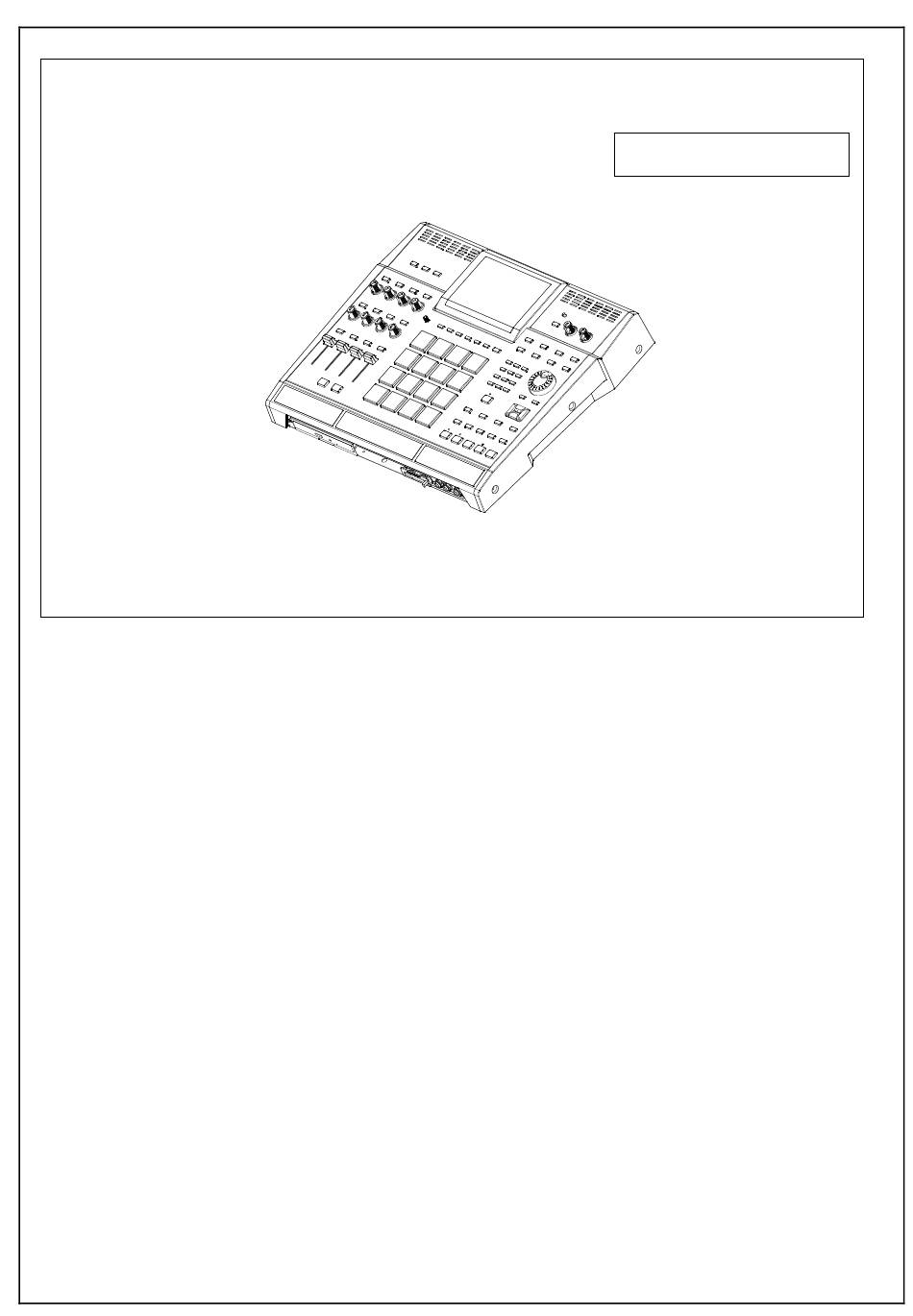

Akai MPC5000 Service Manual

General
Display / 240 x 128 dot graphic LCD w/back light
Memory card slot / Compact Flash (The size of the compact flash
card
that MPC5000 can handle is from32MB to 2GB)
Dimentions (W x H x D) / 18in x 16 1/16 x 3 3/8 (6 7/8 with screen
at max)
Weight / 18.2 lbs
Power reqirement /50W
Sound generator
Sampling rate / 44.1kHz
Memory capacity / 64MB standard ,expandable to 192MB
Recording time / 12m 48sec. (64MB, MONO),38m24sec.(192MB
MONO)
Memory expansion slot / 1 x for optional EXM-E3
Data format / 16-bit linear
Polyphony / 64
Dynamic filtering / 1 State Variable Filter per voice (up to 8 pole,
depending on type)
Filter type / LOW PASS, BAND PASS, HIGH PASS, BAND
BOOST, BAND STOP, ANALOG MODELING, VOCAL
FORMANT
Preset sound memory / 16MB
Number of programs / 128
Effects
Effects / 4 stereo busses with 2 stereo effects per buss, and Master
effect
Master effect/4 band EQ, Compressor
Sequencer
Maximum events / 100,000 notes
Resolution /960 parts per 1/4-note
Sequences / 99
Tracks per sequence / 64
MIDI output channels / 64 (16 channels x 4 outputs)
Song mode / 20 songs, 250 steps per song
Drum pad / 16 (velocity and pressure sensitive)
Drum pad banks / 4
Sync mode / MIDI clock, MIDI Time Code
Transport Controls/MIDI Machine Control
SERVICE MANUAL
SPECIFICATIONS

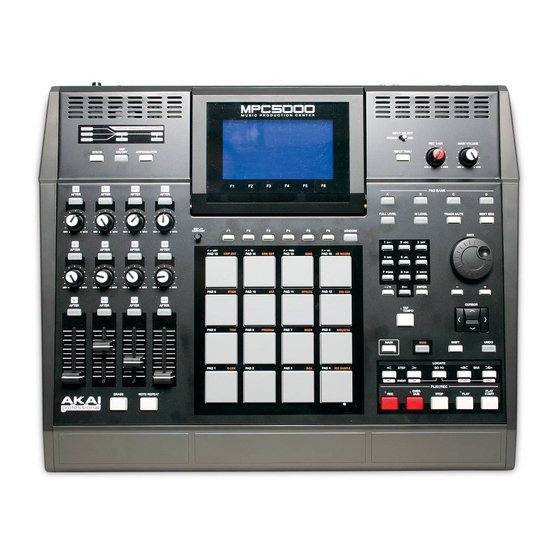

MODEL: MPC5000
Inputs/Outputs
Record input (L and R) / MIC/ 1/4-inch Combo x 2 balanced
-40dBu, input impedance 11k ohms; RCA with PHONO preamp,
Max. Input level /+10dBu
Digital input / RCA-pin x 1 S/PDIF
Stereo output (L and R) / 1/4-inch phone x 2 balanced +11dBu,
output impedance 1k Ohms,
Max. output level/ +22dBu
8 individual outputs / 1/4-inch phone x 4 balanced +11dBu, output
impedance 1k Ohms,
Max. output level /+22dBu
Phones output / 1/4-inch stereo phone x 1, 200mW / 100 ohms
Digital output / RCA-pin x 1 S/PDIF
ADAT Optical x 1 (8 Channels)
MIDI inputs / 5-pin DIN x 2
MIDI outputs /5-pin DIN x 4
USB / Slave connector x 1, USB MASS STORAGE CLASS support
(Windows 2000/Me/XP or later version, or Mac OS 9.x/10.x or later
version. )
Footswitches / 1/4-inch x 2
Standard accessories
Standard accessories / Power cable,Operator's manual
Options
EXM-E3/128MB expansion memory card (Upgrades unit to 192MB
total) CDM-25 CDR/DVD Drive
Data Compatibility
MPC1000 / SEQ, WAV, PGM
MPC2000/2000XL / SEQ, WAV, SND, PGM (Most parameters of
PGM file can be loaded.)
MPC4000 / SEQ, WAV, PGM (DRUM program only. Only note
assign and tune are loaded.)
MPC3000 / SND (THRU Computer)
Z4/Z8 / SEQ, WAV, PGM,(DRUM program only. Only note assign
and tune are loade.)
S5000/6000 / WAV only (THRU Computer)
S1000/3000 / No compatibility
