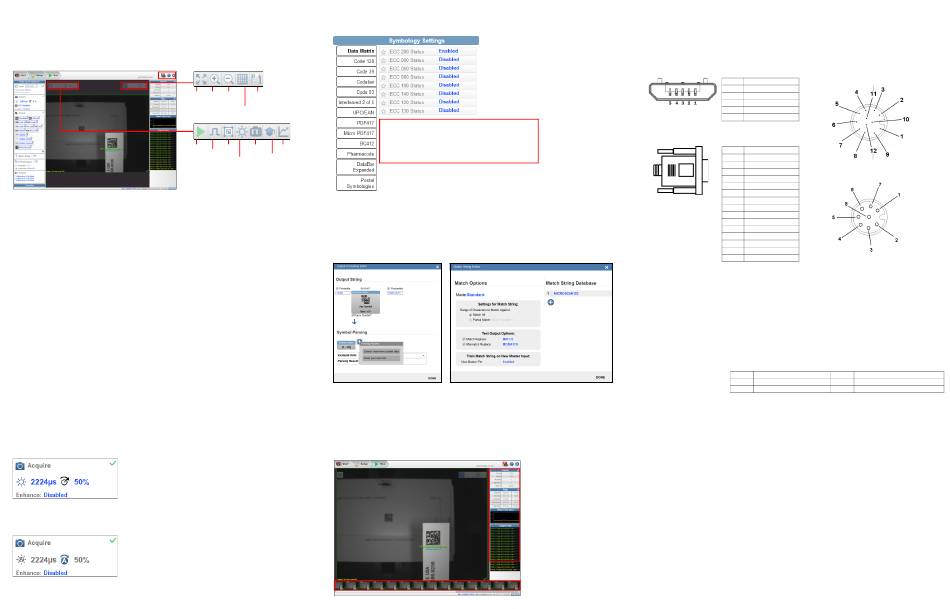

Step 9 — Explore the Setup View
The Setup view allows you to configure all aspects of a setup. Multiple discrete sections of the interface
give you the ability to set Cycle, Acquire, Decode, Match String, Format Output, Output parameters,
and Favorites.
Clicking the Save icon at the upper right saves current settings to the reader's flash memory so the
settings will be available when the reader is rebooted.
The question mark icon at the upper right opens WebLink Help.
The gear icon at the upper right brings up the Application Settings menu.
Resize
image to
fit image
area
Step 10 — Configure Read Cycle Settings
The Cycle section of the Setup view allows you to modify the trigger, determine the number of
symbols for the reader to expect, and set Read Cycle Timeout. A dropdown menu of various Cycle types
provides a variety of options, each with configurable parameters.
Presentation
This mode uses Continuous Read Auto along with Continuous Capture Mode and a Timeout at End of Read
Cycle. Green Flash Mode is set to Static Presentation and the Green Flash Duration is set to 1 second.
Continuous
This mode allows you to set the Read Cycle Timeout and the expected Number of Symbols from 1 to 100.
Triggered
This mode sets the read cycle to Serial Data and Edge, End of Read Cycle is set to Timeout or New
Trigger, and Capture Mode is set to Rapid Capture with 1 capture. You can adjust the Serial Trigger,
Trigger Delay, Timeout, and Number of Symbols.
Start / Stop
This mode uses External Level with a Read Cycle Timeout and Continuous Capture, allowing you to
set Leading Edge and Trailing Edge as well as the Serial Trigger and the Start and Stop Characters.
When Serial Trigger is set to Off, the start and stop characters are set to NULL, meaning that the trigger
is disabled. When Serial Trigger is set to On, the start and stop characters are set to S and E. When the
trigger button is clicked, it will use the current start and stop non-delimited triggers.
Custom
This mode allows you a wider variety of read cycle scenarios, including Continuous Read Auto. Use this
mode to select Trigger mode and to set Serial Trigger Character and Trigger Delay; to select Capture
Mode and to set Number of Captures, Rapid Capture Mode, and Delay between Images; and to
select the End Cycle On setting as well as Timeout and Number of Symbols.
Step 11 — Configure Acquire Settings
Acquire settings allow you to set Exposure (signified by the sun icon) and Gain (signified by the dial and
right-pointing arrow icon). Clicking any of these settings will cause a control to appear, allowing you to
modify that setting. Settings take effect immediately.
Important: See WebLink Help for detailed information about Autofocus and Spot Focus functionality.
Important: There are 4 levels of Gain in SXGA MicroHAWK
ID readers. Each level corresponds to 25 percentage points,
or one quarter turn of the Gain dial shown at left.
• Level 1 = 0% to 24%
• Level 2 = 25% to 49%
• Level 3 = 50% to 74%
• Level 4 = 75% to 100%
Standard
When Auto Photometry is enabled instead of Standard, Exposure and Gain are read-only. The A
shown on the sun and dial icons signifies that Auto Photometry is enabled. Auto Photometry constantly
determines the best Exposure and Gain settings during each read cycle.
Auto Photometry
Copyright ©2019 Omron Microscan Systems, Inc.
Step 12 — Configure Symbology Settings
Clicking the gear icon at the bottom of the Decode section brings up Symbology Settings. This allows
you to configure every parameter for every available code type.
Zoom Zoom Save full-size
In Out image
Show All Images
from Read Cycle
Start WOI Autofocus Optimize
Trigger
and
(Only Train
Stop
Auto
shown
Photometry
when in
Trigger
Mode)
Step 13 — Format Output and Configure Match String
Format Output, when enabled in the Setup View, allows you to determine the many ways in which
barcode data can be formatted and parsed before it is output as a data string. You can also set Preamble
and Postamble in this dialog.
Match Options and Match String Database, accessible by clicking the Match String section in the
Setup View, allow you to set the match code mode, text output, new master, and match string database.
Note: See WebLink Help for information about how to configure output settings.
Step 14 — Run the Application
In the Run view, you can observe the progress of the setup as it follows the parameters you have
defined. The right pane of the UI shows Counts for Inspected, Passed, No-Read, and Mismatch, as
well as Read Rate, Reads per Second, Read Time (shown numerically and visually), and Output Data.
A "filmstrip" in the bottom pane shows each image capture with a
and a red x
Data Matrix error correction parameters are
shown in this example, but you can configure any
parameter for any of the code types supported by
WebLink. All parameter changes for all code types
take effect immediately.
green check mark
for No-Reads.
Power Requirements and Pin Assignments
MicroHAWK ID-20: 5 VDC ± 5%, 350 mA @ 5 VDC (typ.)
MicroHAWK ID-30: 5 VDC ± 5%, 600 mA @ 5 VDC (typ.)
MicroHAWK ID-40: 4.75-30 VDC, 200 mV p-p max ripple, 150 mA @ 24 VDC (typ.)
MicroHAWK ID-45: 10-30 VDC, 200 mV p-p max ripple, 150 mA @ 24 VDC (typ.)
Important: See the MicroHAWK ID-20 / ID-30 / ID-40 / ID-45 User Manual for information about Omron
Microscan's Isolation Mounting Kit (P/N 98-9000064-01) to eliminate ground loops or other external
electrical noise through your MicroHAWK ID-30, ID-40, or ID-45 reader.
MicroHAWK ID-20 Micro-USB Type B Socket
Pin Function
1 Vbus (5V)
2 D–
3 D+
4 N/C
5 Ground
MicroHAWK ID-30 High-Density 15-Pin Dsub
USB/Serial Socket
Pin Function
1 +5VDC
2 TX232
3 RX232
4 GND
5 D+
6 N/C
Note: An accessory
7 Output 1+
cable is required
Default+
8
between the ID-30's
9 Trigger+
15-pin corner-exit
10 D–
cable and the host's
11 Output 3+
USB port.
New Master+
12
N/C
13
14 Output 2+
15 Vbus
MicroHAWK ID Part Number Structure
MicroHAWK ID part numbers follow the format 7ABX-YZZZ-LPPP.
7 = MicroHAWK.
Example Part Number: 7432-2000-1005
Description: MicroHAWK ID-45, IP65/67 Case, 24V Ethernet, SXGA 1.2 Megapixel, Mono, High-Density, Autofocus, Red
Outer LEDs, High-Speed, X-Mode Decoder.
(A) Model
1: Engine, No Case, USB
2: ID-20, IP40 Case, USB
3: ID-30, IP54 Case, 5V, USB
4: ID-40, IP65/67 Case, 24V, Ethernet
(B) Software
1: Auto ID
3: ID-45; same IP rating, power, and comm. as ID-40
(X) Sensor
WVGA
1: WVGA, 0.3 Megapixel, Mono
SXGA
2: SXGA, 1.2 Megapixel, Mono
3: QSXGA, 5 Megapixel, Color QSXGA
(Y) Optics
0: Custom
1: Standard-Density
2: High-Density
3: Ultra-High-Density
4: Long-Range (Autofocus Long Range available for SXGA sensor only.)
5: Ultra-High-Density with Polarizer
(ZZZ) Focus Distance
000: Autofocus
050: 50 mm = 1.96 in.
for good reads
064: 64 mm = 2.51 in. – UHD FF
081: 81 mm = 3.18 in.
102: 102 mm = 4.02 in.
133: 133 mm = 5.23 in.
190: 190 mm = 7.48 in.
300: 300 mm = 11.81 in.
400: 400 mm = 15.75 in. – UHD FF
(L) Outer LED Color
0: N/A (Engine and ID-20)
1: Red (Not available with QSXGA sensor.)
2: White
3: Blue
4: IR
(PPP) Speed and Decoder
000: Standard-Speed, 1D Decoder
001: High-Speed, 1D Decoder
002: Standard-Speed, 1D/2D Decoder
003: Standard-Speed, X-Mode Decoder
004: High-Speed, 1D/2D Decoder
005: High-Speed, X-Mode Decoder
Notes:
• (A) Model: The MicroHAWK Engine is available for OEM-certified partners only.
• (L) Outer LED Color: Outer LEDs provide extra illumination. Base level illumination included with all readers.
• (PPP) Speed and Decoder: 1D omnidirectional decoding functionality is included with all readers. The 1D/2D Decoder
option is useful for printed labels. X-Mode is the full decoder package for 1D, 2D, DPM, and damaged symbols.
• Field Upgrades: Not available for optics or illumination due to factory settings for optical alignment, LED balancing, and
sealing for IP enclosure rating. However, the reader's speed and decoder version are field-upgradeable via licenses.
MicroHAWK ID-40 and ID-45 Connectors
Output 2
Default
New Master
Power
Output 1
RS-232
(Host) TxD
Output 3
Trigger
Ground
RS-232 (Host) RxD
Input Common
Output Common
M12 12-pin Plug
V+
TX (+)
V+
RX (–)
RX (+)
V–
TX (–)
V–
M12 8-pin Socket (Ethernet)
Standard: 10 FPS / High: 60 FPS
752 x 480, 0.3 MP, Mono Global
1280 x 960, 1.2 MP, Mono Global Standard: 10 FPS / High: 42 FPS
2592 x 1944, 5 MP, Color Rolling 5 FPS
