OPERATOR'S
MANUAL
Prestige / 1800 / 2800 / 500 Series
Conquest / 1700 / 2700 / 400 Series
23HP Hydro Tractors
Mfg. No.
Description
2690638
Conquest, 23HP 4WD & 44" Mower
2690656
Conquest, 23HP & 44" Mower (CE)
2690657
YT2344, 23HP & 44" Mower (CE)
2690679
Conquest, 23HP 4WD & 50" Mower (CE)
2690744
Conquest, 23HP 4WD & 50" Mower
2690753
Conquest, 23HP & 44" Mower (CE)
2690754
YT2344, 23HP & 44" Mower (CE)
2690765
YT2344, 23HP 4WD & 50" Mower (CE)
2690789
Conquest, 23HP 4WD & 50" Mower (CE)
2690790
Conquest, 23HP 4WD & 50" Mower (CE)
2690805
Conquest, 23HP & 50" Mower (CE)
2690806
YT2350, 23HP & 50" Mower (CE)
25HP Hydro Tractors
Mfg. No.
Description
2690571
Prestige, 25HP & 50" Mower (CE)
27HP Hydro Tractors
Mfg. No.
Description
2690680
Conquest, 27HP 4WD & 54" Mower
2690681
Conquest, 27HP 4WD & 54" Mower
2690735
Prestige, 27HP 4WD & 50" Mower
2690792
Prestige, 27HP 4WD & 54" Mower
44" Mower Decks
Mfg. No.
Description
1695028
44" Mower Deck (CE)
1695033
44" Mower Deck (CE)
1695391
44" Mower Deck
1695400
44" Mower Deck (CE)
1695401
44" Mower Deck (CE)
50" Mower Decks
Mfg. No.
Description
1695185
50" Mower Deck (CE)
1695213
50" Mower Deck
1695263
50" Mower Deck (CE)
1695265
50" Mower Deck (CE)
1695390
50" Mower Deck
1695392
50" Mower Deck
1695393
50" Mower Deck
1695395
50" Mower Deck
1695417
50" Mower Deck (CE)
1695418
50" Mower Deck (CE)
1695588
50" Mower Deck (CE)
1695589
50" Mower Deck (CE)
54" Mower Decks
Mfg. No.
Description
1695266
54" Mower Deck
1735106
Revision E
Rev. Date 11/2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige 1800 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Briggs & Stratton Prestige 1800 Series

Summary of Contents for Briggs & Stratton Prestige 1800 Series

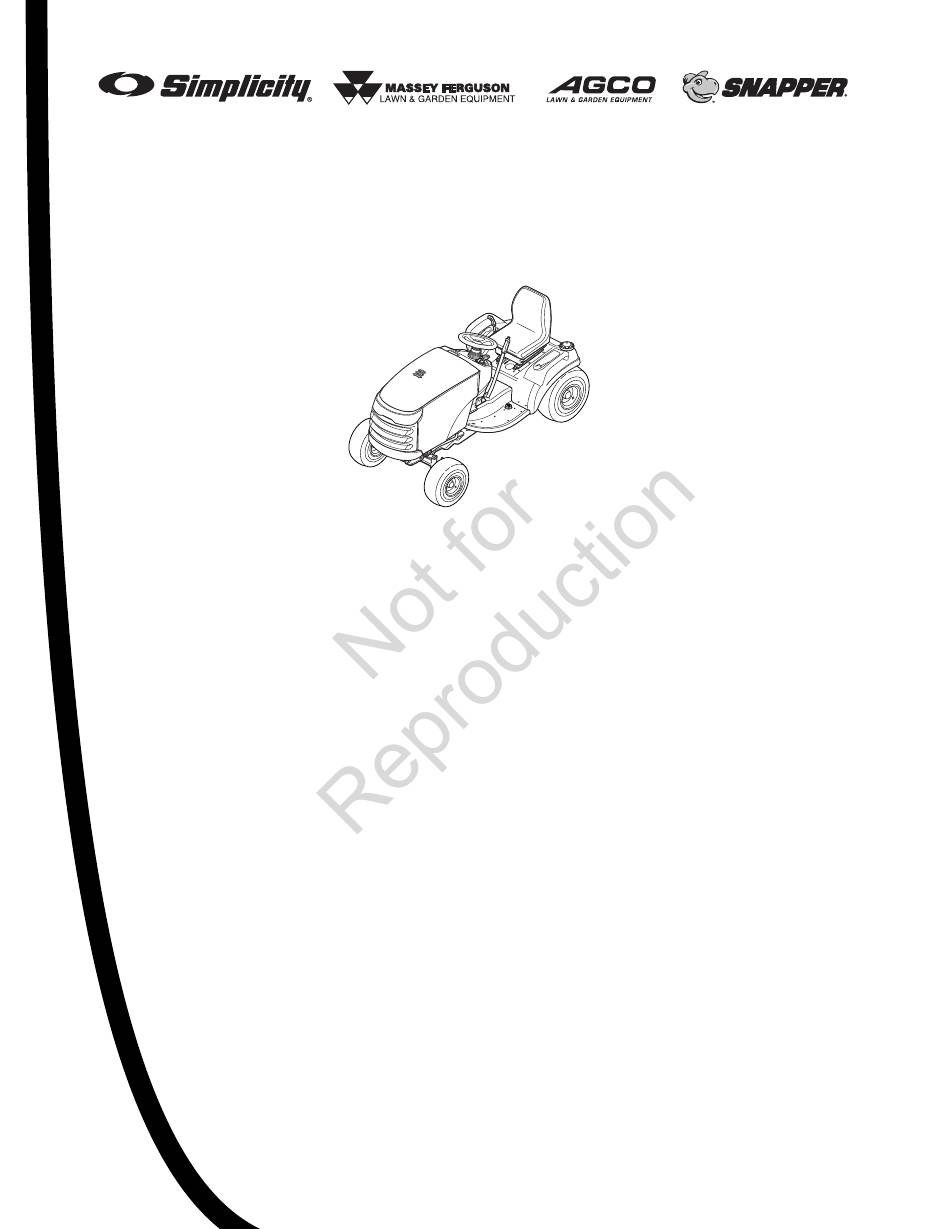

  • Page 1 OPERATOR’S MANUAL Prestige / 1800 / 2800 / 500 Series Conquest / 1700 / 2700 / 400 Series 23HP Hydro Tractors 44” Mower Decks Mfg. No. Description Mfg. No. Description 2690638 Conquest, 23HP 4WD & 44” Mower 1695028 44” Mower Deck (CE) 2690656 Conquest, 23HP &...

  • Page 3: Table Of Contents

    Table of Contents Safety Rules & Information.........2 Regular Maintenance ........18 Maintenance Schedule..........18 Identification Numbers ........7 Checking Tire Pressures ........18 Safety Decals ............8 Safety Interlock System Check......19 Safety Icons ............9 Blade Brake Check..........19 Features & Controls ..........10 Engine Maintenance..........19 Control Functions ..........10 Check / Clean Oil Cooler ........19 Parking Brake Function .........12 Battery Maintenance ..........19...

  • Page 4: Safety Rules & Information

    Safety Rules & Information Operating Safety Congratulations on purchasing a superior-quality piece of lawn and garden equipment. Our products are designed and manufactured to meet or exceed all industry standards for safety. Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you are responsible for your safety and that of those around you.
  • Page 5 Safety Rules and Information Slope Operation You could be seriously injured or even killed if you use this unit on too steep an incline. Using the unit on a slope that is too steep or where you don’t have adequate traction can cause you to lose control or roll over. A good rule of thumb is to not operate on any slope you cannot back up (in 2-wheel drive mode).
  • Page 6 Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
  • Page 7 Safety Rules and Information SLOPE OPERATION WARNING Slopes are a major factor related to loss-of-control and tip-over Never operate on slopes greater than 17.6 percent accidents, which can result in severe injury or death. Operation (10°) which is a rise of 3-1/2 feet (106 cm) vertically in on all slopes requires extra caution.
  • Page 8 Safety Rules & Information SERVICE AND MAINTENANCE Safe Handling of Gasoline 1. Extinguish all cigarettes, cigars, pipes, and other 12. Do not use gasoline containing METHANOL, gasohol sources of ignition. containing more than 10% ETHANOL, gasoline 2. Use only approved gasoline containers. additives, or white gas because engine/fuel system 3.

  • Page 9: Identification Numbers

    Identification Numbers Identification Numbers When contacting your authorized dealer for CE Identification Tag replacement parts, service, or information you MUST have these numbers. A. Manufacturer’s Identification Number B. Manufacturer’s Serial Number Record your model name/number, manufacturer’s C. Power Rating in Kilowatts identification numbers, and engine serial numbers in the space provided for easy access.

  • Page 10: Safety Decals

    Safety Decals Safety Decals All DANGER, WARNING, CAUTION and instructional messages on your rider and mower should be carefully This unit has been designed and manufactured to provide read and obeyed. Personal bodily injury can result when you with the safety and reliability you would expect from these instructions are not followed.
  • Page 11 CE Safety Icons Decals Locations Operating Instructions, CE Models, Part No. 1734027 Ignition Switch Positions Part No. 1722806 CE-Danger, Rotating Blades, CE-Danger, Rotating Blades, Part No. 1720389 Part No. 1720389 Decal - Cutting Height Part No. 1721197 1730264 Decal - Cutting Height Part No.

  • Page 12: Features & Controls

    Features & Controls Electric Hydraulic HOC Models Lift Models Manual Lift Models Manual Manual HOC Models HOC Models Figure 1. Controls Control Functions The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing require the combined use of several controls applied in specific sequences. To learn what combination and sequence of controls to use for various tasks see the OPERATION section.
  • Page 13 Features & Controls Manual Lift Models: The cutting height adjustment knob controls the mower cutting height. PTO Switch The PTO (Power Take-Off) switch engages and Cruise Control (Select Models) disengages attachments that use the PTO. To engage the PTO, pull UP on the switch. Push DOWN to The cruise control is used to lock the ground speed disengage.

  • Page 14: Parking Brake Function

    Features & Controls Manual Lift Models: The attachment lift control lever raises and lowers attachments that utilize the tractor’s Attachment Lift Control Lever manual lift linkage. To lower an attachment: pull the lever When using the mower deck, lift the deck off the ground back slightly, depress the release button, and push the while transporting to and from the job site.

  • Page 15: Dashboard Display & Functions

    Features & Controls Dashboard Display & Functions Display Items Refer to Figure 3. A. FUEL LEVEL Indicates the amount of fuel in the fuel tank. Left is empty; right is full. B. HOUR METER / CLOCK / SERVICE INDICATOR Displays the clock, hour meter, and maintenance reminder. The hour meter measures the number of hours the key has been in the RUN position.

  • Page 16: Operating The Tractor

    Operating the Tractor WARNING Safety Interlock System Tests Gasoline is highly flammable and must be WARNING handled with care. Never fill the tank when the engine is still hot from recent operation. Do not This unit is equipped with safety interlock allow open flame, smoking or matches in the switches and other safety devices.

  • Page 17: Driving The Tractor

    Operating the Tractor Attachment Operation in Reverse Driving The Tractor 1. Sit in the seat and adjust the seat so that you can If an operator chooses to operate a PTO driven comfortably reach all the controls and see the attachment in reverse, the RMO system can be used.

  • Page 18: Adjusting Mower Cutting Height

    Operating the Tractor Adjusting Mower Cutting Height The cutting height is infinitely adjustable between approximately 1” and 3-5/8” (2,5-9,2 cm). Electric Height of Cut Models: The cutting height adjustment switch (D, Figure 5) controls the mower cutting height. This same switch also controls the spout rotator motor when a snowthrower is installed.

  • Page 19: Attaching A Trailer

    Operating the Tractor Attaching a Trailer Storage The maximum horizontal drawbar force allowed is WARNING 444 Newton. The maximum vertical drawbar force is Never store the unit (with fuel) in an enclosed, 222 Newton. This equates to a 396 lbs (180 kg) trailer on poorly ventilated structure.

  • Page 20: Regular Maintenance

    Regular Maintenance MAINTENANCE SCHEDULE & PROCEDURES The following schedule should be followed for normal care of your tractor and mower. TRACTOR AND MOWER ENGINE Every 8 Hours or Daily First 5 Hours Check safety interlock system Change engine oil - see engine manual Clean debris off tractor and mower deck Every 8 Hours or Daily Clean debris from engine compartment...

  • Page 21: Safety Interlock System Check

    Regular Maintenance Safety Interlock System Check Battery Maintenance Check the function of the safety interlock system using Cleaning the Battery and Cables the test procedure in Operating the Tractor. If the tractor WARNING fails any of the tests, see your dealer. When removing or installing battery cables, Blade Brake Check disconnect the negative cable FIRST and reconnect...

  • Page 22: Troubleshooting & Adjustment

    Troubleshooting & Adjustment Troubleshooting WARNING While normal care and regular maintenance will extend To avoid serious injury, perform maintenance on the life of your equipment, prolonged or constant use may the tractor or mower only when the engine is eventually require that service be performed to allow it to stopped and the parking brake engaged.

  • Page 23: Troubleshooting The Mower

    Troubleshooting & Adjustment Troubleshooting the Tractor (Continued) PROBLEM LOOK FOR REMEDY Brake will not hold. Internal brake worn. See authorized dealer. Steering linkage is loose. See authorized dealer. Tractor steers hard or Improper tire inflation. See Check Tire Pressure section. handles poorly.

  • Page 24: Battery Charging

    Troubleshooting & Adjustment Battery Charging WARNING Keep open flames and sparks away from the battery; the gasses coming from it are highly explosive. Ventilate the battery well during charging. A dead battery or one too weak to start the engine may be the result of a defect in the charging system or other electrical component.

  • Page 25: Mower Gauge Wheels

    Troubleshooting & Adjustment Mower Gauge Wheels (Select Models) The mower gauge wheels can be placed in several positions depending on the height of cut. When using higher cutting heights, set the wheels in the lower position. When using lower cutting heights, set the wheels in the upper position.

  • Page 26: Specifications

    Specifications ENGINE K66 TRANSMISSION Type Hydrostatic Tuff Torq K66 23 HP* Briggs & Stratton Hydraulic Fluid 10w 30 Premium Engine Oil Make Briggs & Stratton Capacity 2.6 qt (2,5 L) Model Twin Vanguard (386777) Speeds Forward: 0-5.8 MPH (9.3 km/h) Horsepower @ 3400 rpm Reverse: 0-3.5 MPH (5.6 km/h)

  • Page 27: Parts & Accessories

    Parts & Accessories Replacement Parts Replacement parts are available from your authorized dealer. Always use genuine service parts. Maintenance Items Many convenient and helpful service and maintenance items are available from you authorized dealer. Some of these items include: Engine Oil Tire Sealant Touch-Up Paint Degrimer/Degreaser...
  • Page 32 www.simplicitymfg.com www.MasseyLawn.com www.snapper.com www.AGCOLawn.com Briggs & Stratton Power Products Group, LLC P. O. Box 702 Milwaukee, WI U. S. A. Copyright © 2010 Briggs & Stratton Power Products Group, LLC Milwaukee, WI, USA. All rights reserved.
