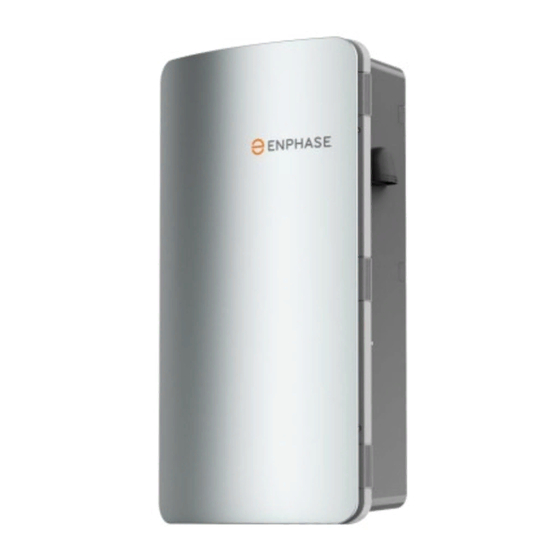

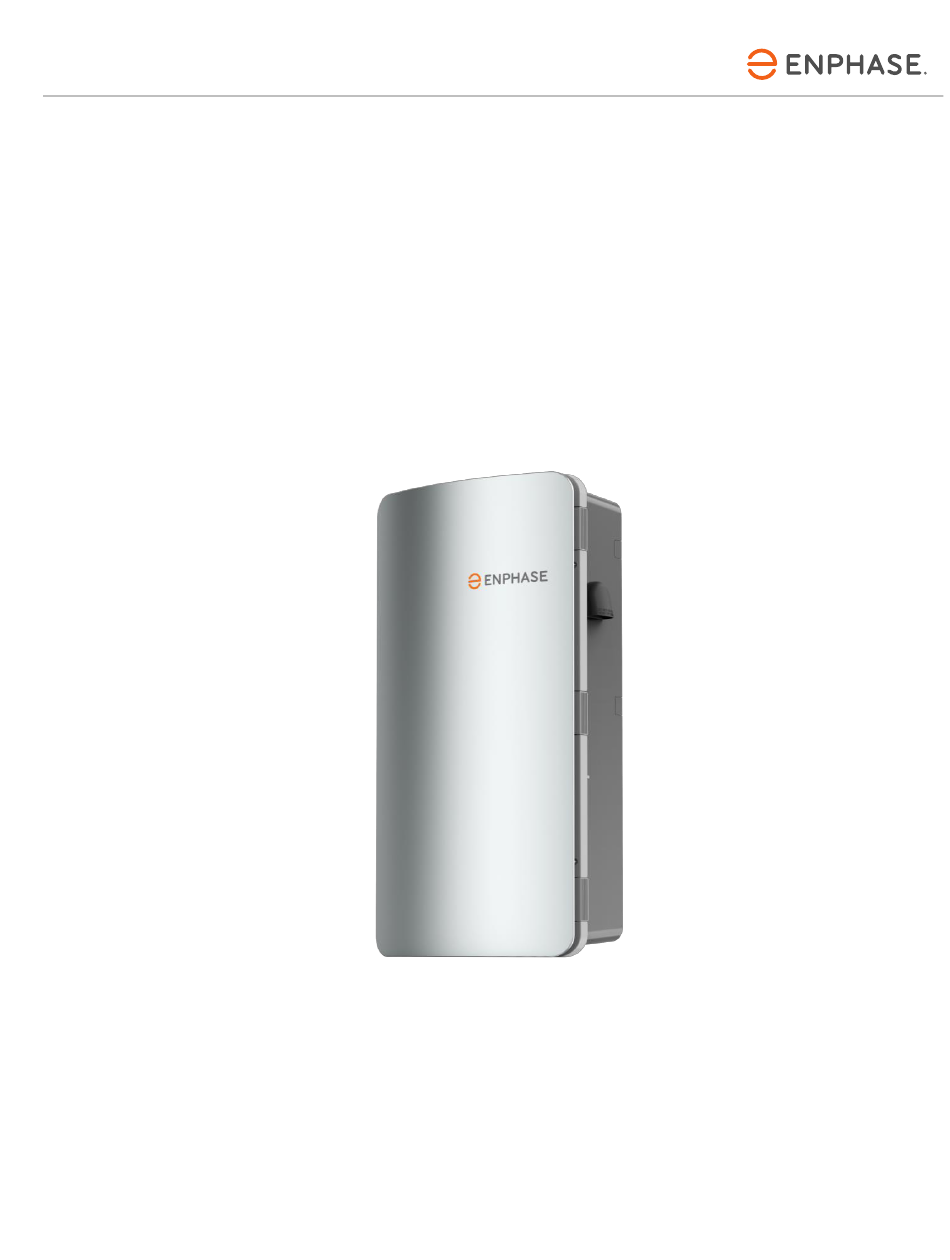

- Page 1 INSTALLATION AND OPERATION MANUAL Enphase Enpower Smart Switch August 5, 2020 141-00046-01...
- Page 2 For warranty text refer to enphase.com/warranty. For Enphase patent information refer to enphase.com/company/patents/. © 2020 Enphase Energy Inc. All rights reserved. Enphase, the Enphase logo, Enpower, Encharge, IQ Envoy, IQ Combiner, IQ Microinverter, Installer Toolkit, Enlighten and other trademarks or service names are the trademarks of Enphase Energy, Inc.
-
Page 3: Table Of Contents
Step 1: Plan a Location for the Enpower......................11 Step 2: Install the Wall-Mount Bracket ......................12 Step 3: Unbox and Mount the Enpower on the Wall ..................13 Step 4: Install Breakers as Needed ....................... 14 Step 5: Wire the Field Connections ....................... 17 Step 6: Close and Energize Enpower ...................... -
Page 4: Important Safety Information
This manual describes the safe installation and operation of the Enphase Enpower™ smart switch. Safety and Advisory Symbols To reduce the risk of electric shock, and to ensure the safe installation and operation of the Enphase IQ System, the following safety symbols appear throughout this document to indicate dangerous conditions and important safety instructions. - Page 5 NOTE: While Enpower provides capability for connection of a generator, it does not presently support use with generators. Do not attempt to connect a generator until Enpower is ready to support a generator. This functionality is reserved for future use and will require an upgrade process to be followed by a qualified electrician.
-
Page 6: The Enphase Ensemble System
Ensemble technology systems include the following Enphase products: 1. Enphase Enpower™ smart switch connects the home to grid power, the Encharge storage system, and solar PV. It provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. -
Page 7: The Enpower Smart Switch
Whole home backup with Enpower as service entrance and PV combiner connected to Enpower. This is the preferred configuration for back up of the entire main load panel. This configuration supports up to an 80A breaker for the PV circuit and an 80A breaker for battery storage. - Page 8 PV combiner circuit is more than 80A. In this configuration, the PV combiner circuit connection space in Enpower is left vacant. When existing PV combiner circuits are connected to the main load panel, and you want to add battery storage to the system, you can keep the PV combiner connected to the main load panel and connect only the battery storage system to Enpower.
-
Page 9: Enpower Installation Preparation And Requirements
Enpower Installation Preparation and Requirements Preparation 1. Inspect the packaging and the Enpower for damage. Do not install or use the Enpower if it has been damaged in any way. 2. Ensure that you have the following: •... -
Page 10: Use The Enphase Installer Toolkit
Eaton BR Series breakers, rated maximum 80A for Encharge storage system and Enphase IQ™ combiner. • If breakers are required at the input or output to Enpower, use Eaton, Type CSR breakers rated 100 A, 125 A, 150 A, 175 A or 200 A. •... -
Page 11: Enphase Enpower Installation
Enpower smart switch installation and operation Enphase Enpower Installation Installing the Enphase Enpower smart switch involves several key steps. Each step listed here is detailed in the following pages. Step 1: Plan a Location for the Enpower Step 2: Install the Wall-Mount Bracket... -
Page 12: Step 2: Install The Wall-Mount Bracket
D. Use the #10, 1/4”, or 5/16” wood screws (or masonry attachments if installing in masonry) to attach the bracket using one screw and washer for each slot. The slot size of the Enpower wall mount bracket is 8.5 mm. Use an appropriately sized washer for each of the screws, and check with a structural engineer and local standards for local requirements. -
Page 13: Step 3: Unbox And Mount The Enpower On The Wall
(upright). Enpower is designed only for vertical installation without inclination (must be level). F. Lift the Enpower slightly above the installed wall mount bracket and allow it to slide down so that the bracket facing hooks set into both the top and bottom shelves of the wall mount bracket. -
Page 14: Step 4: Install Breakers As Needed
Enpower smart switch installation and operation Step 4: Install Breakers as Needed The Enpower includes one two-pole 40A circuit breaker that feeds the neutral forming transformer (NFT). You can install additional breakers, if needed. You must follow all NEC and local electrical codes. - Page 15 L. Use the M4 screw (from the lit kit marked 150-00148 that ships with the Enpower) to secure the mains breaker (not the load breaker). Use a T20 drive to tighten the M4 screw to 1.5 N•m (13.3 lb•in). Do not use any other screw.
- Page 16 Required practices when torquing connections: • Always follow NEC 2017 110.4 (D) dictates. • You must use a calibrated torque tool to achieve the indicated torque values. • Use tamper-proof torque mark/paint after torquing connections. © 2020 Enphase Energy Inc. All rights reserved. 141-00046-01...
-
Page 17: Step 5: Wire The Field Connections
Refer to the conductor rating table on the door of the Enpower. DANGER! Risk of electric shock. Check that all circuits connecting to the Enpower are de- energized before wiring. C. If the Enpower is not installed as service equipment , you must remove the main bonding jumper connected between the grounding bar and the neutral assembly. - Page 18 F. Use the included stowed conductors, as labeled, to wire the circuit breaker(s) for the Encharge batteries, Enphase Combiner, and generator (reserved for future use¹) as needed. The stowed conductors are provided with crimped-on ferrules with end caps to prevent accidental contact.
- Page 19 Enpower smart switch installation and operation © 2020 Enphase Energy Inc. All rights reserved. 141-00046-01...
-
Page 20: Step 6: Close And Energize Enpower
Configure and Activate Use the Enphase Installer Toolkit to commission the Enpower. Once connected to the Envoy, refer to the Installer Toolkit help topics for more information. © 2020 Enphase Energy Inc. All rights reserved. -
Page 21: Troubleshooting
Prior to actuating the Enpower override switch, all power sources feeding the Enpower must be deenergized. The main breaker feeding Enpower must be shut off. Also, shut of the Encharge battery circuit breaker and the IQ Combiner circuit breaker in Enpower. -
Page 22: Manual Override For Enpower
Enphase customer support. You may be instructed to use the function if there is a malfunction in the Enpower main relay or other components of the system that prevents the automatic operation of the main relay in Enpower. -
Page 23: Exiting Manual Override
3. Wait for at least 60 seconds for all residual charge on the control boards to get discharged. 4. Turn the manual override toggle inside the Enpower to the right to manually OPEN the MID relay. 5. CLOSE all the breakers in sequence: a. -
Page 24: Specifications
Enpower smart switch installation and operation Specifications MODEL NUMBER EP200G101-M240US00 Enphase Enpower smart switch with neutral-forming transformer (NFT), Microgrid Interconnect Device (MID), breakers, and screws. Streamlines grid- independent capabilities of PV and storage installations. ACCESSORIES and REPLACEMENT PARTS XA-E3-PCBA-ENS Replacement Enpower controller printed circuit board... - Page 25 CSA 22.2 No. 107.1, 47 CFR, Part 15, Class B, ICES 003, AC156. A. Compatible with BRHDK125 Hold-Down Kit to comply with 2017 NEC 710.15E for back-fed circuit breakers. B. The Enpower is rated 22 kAIC. C. Not included. Installer must provide properly rated breaker per circuit breaker list above.
