Headset Panel - Pro-X XW-IS4 User Manual

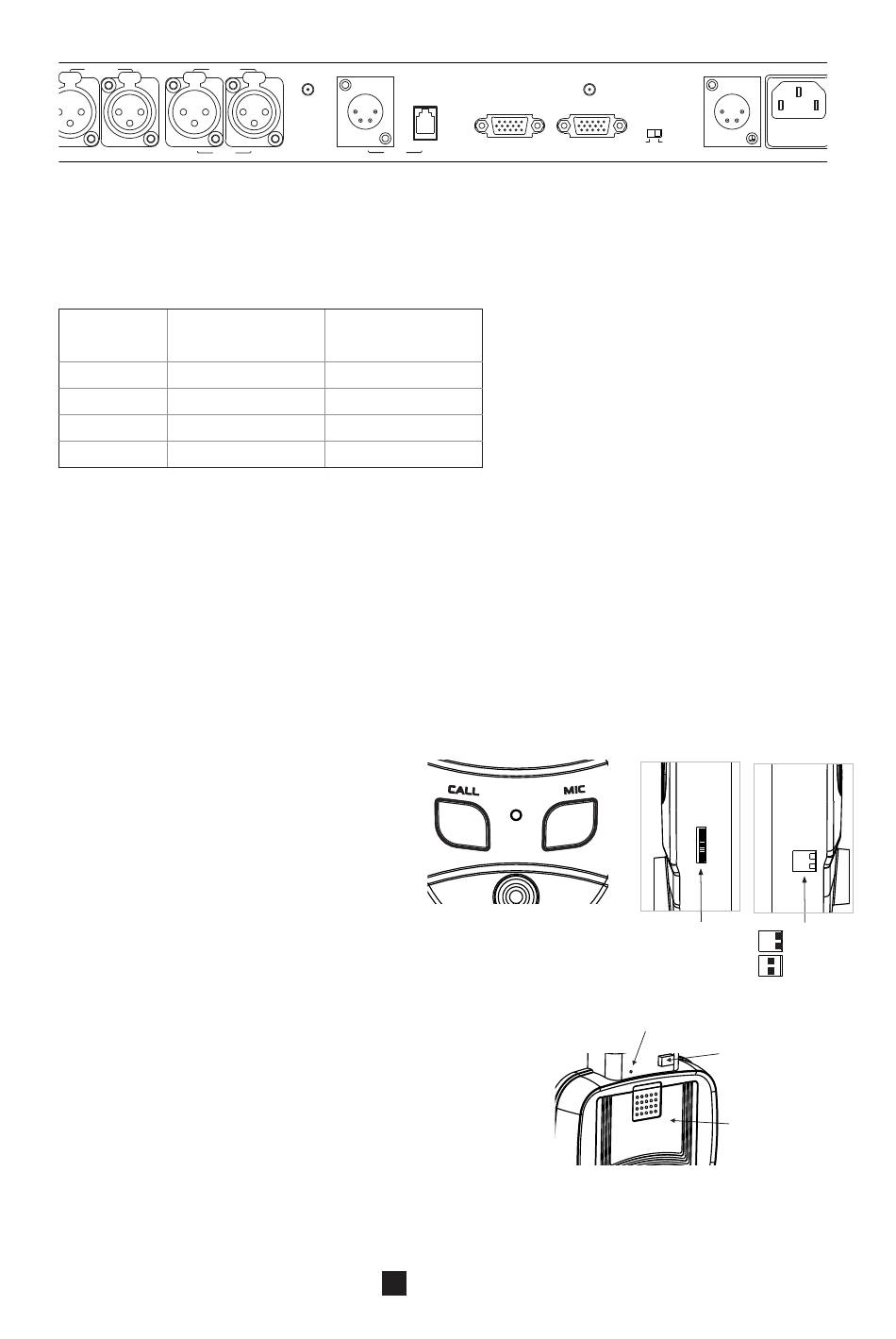

Base Station Back Panel
AUX AUDIO INTERCOM
OUTPUT INPUT 2 WIRE
■AC IN: AC power input
■DC IN: DC power input
■Frequency switch: Convert 1.9G/1.8G
■Tally input(Pin4,9,14 Ground):
Video Red LED
Channel LIVE(On Air)
1
2
3
4
■Intercom
1)4-wire output: 4-wire intercom port (RJ11 and XLR-4F parallel inside)
Pin1, Pin2: Balanced Audio input; Pin3, Pin4: Balanced Audio output
2)2-wire output: 2-wire intercom port (XLR-3F and XLR-3M parallel inside)
Pin1: Public; Pin2: Null Pin3: Audio
■AUX Audio Input/Output: Auxiliary Audio Input/Output
Pin1: Public; Pin2: Audio"+"; Pin3: Audio"-"
Headset Control Panel
■MIC: Turn on/off Microphone
■Call: Headset call Base Station
Headset register with Base Station
■SYS indicator: The light is on
when headset communicate with
Base Station normally
■Dip Switch: Convert 1.9G/1.8G
■VOL Dial: Adjust the volume level
of headset
■Power Switch
■Power Indicator
■Battery Mount: AAA battery×3,
power for Headset
4 WIRE
Green LED
CUED(Next)
Pin 1 Pin 3
Pin 6 Pin 8
Pin 11 Pin 13
Pin 5 Pin 15
4
1.9G 1.8G
TALLY A TALLY B
SYS
VOL Dial
Power
Indicator
10V-20V DC IN AC IN
"Off"1.9G
"On"1.8G
Power
Switch
Battery
Mount
