Overview

XW-IS4 is a full duplex wireless Intercom system. It's designed for live show,
stage, broadcast, and other applications where wireless communication is
required. It features advanced digital wireless and Audio Codec technology
to allow the director, cameraman, control room communicate freely.
Features
□ Full Duplex Intercom;
□ Support 4 wireless Headsets;
□ With digital encryption and frequency-hopping technologies,
automatically detects clear spectrum;
Panel of Base Station and Headset

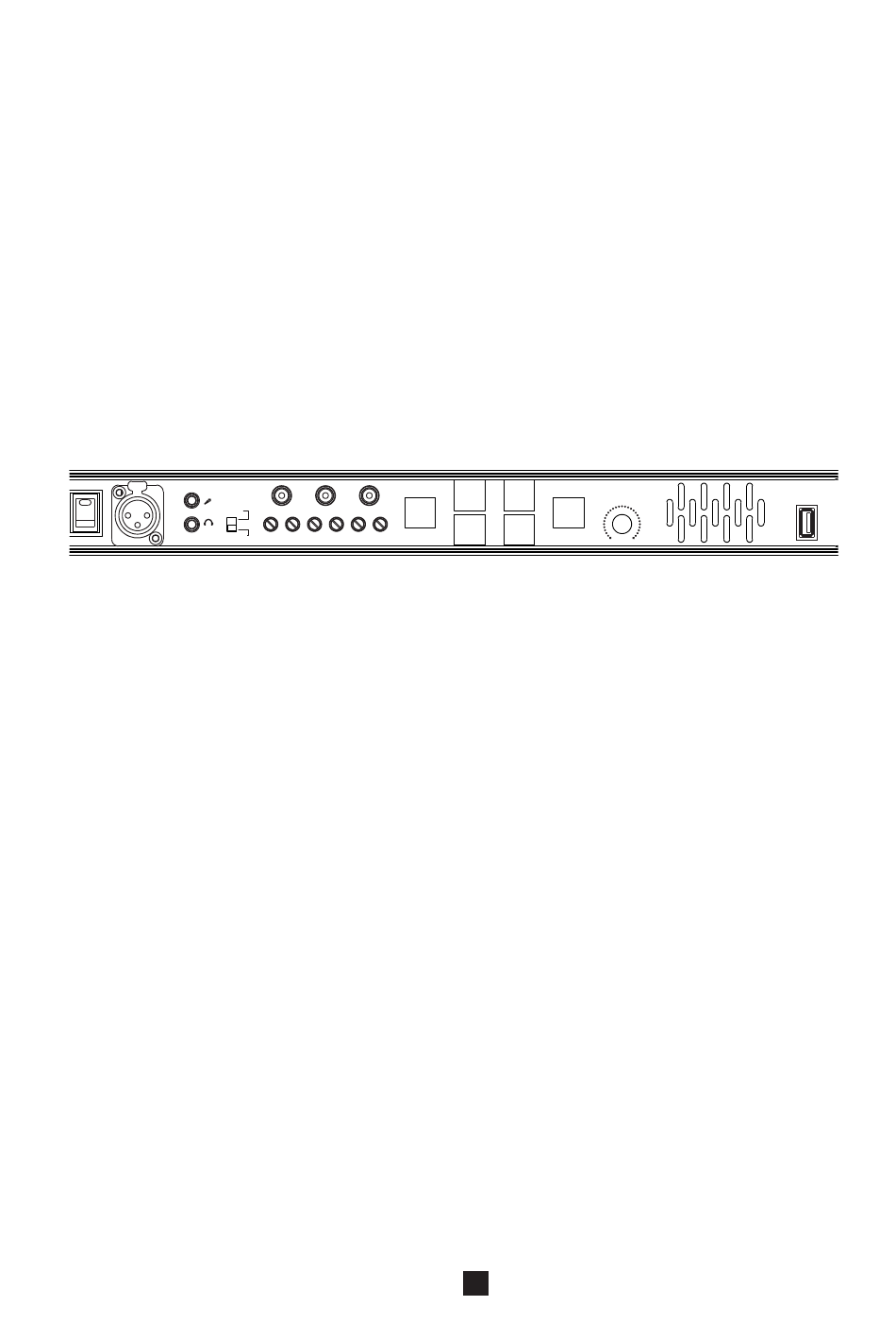

Base Station Front Panel
MIC
HEAD
PHONE
HEAD

PHONE
SPEAKER
POWER MIC
■Power Switch: Turn on the power switch, the red LED light is on
■Audio: 2-channel, input/output
1)MIC: Microphone connector
Speaker inside
2)MIC: Mic connector
Headphone: Headphone connector
■Head Phone/Speaker Switch:
Switch 1st and 2rd Audio input/output channel
■2W/4W: 2-wire/4-wire intercom switch
■VOX: Volume control switch
■AUX: Audio input/output switch
■MIC Level: Adjust volume level of Microphone Audio input
■VOX Level: Volume level trigger
■Intercom Out/in Level: Adjust intercom output/input volume level
■AUX Out/in Level: Adjust the Auxiliary Audio output/input volume level
■All: Switch of all channels
■CH1-CH4: Switch of Headset1 to Headset4
■Mute: Mute switch. The LED light is on when turn on the Mute switch
■VOL: Adjust the volume of headset/speaker
■USB connector: DC 5V output
□ Communicate range up to 250m;
2W/4W VOX AUX
ALL
MIC VOX OUT IN OUT IN
LEVEL LEVEL INTERCOM LEVEL AUX LEVEL
□ Real-time Tally supports;
□ Clear Sound
1 2
MUTE
3 4
MIN
VOL
3
MAX
5V
DC OUT
