Summary of Contents for Pro-X XW-IS4
- Page 1 XW-IS4 Intercom System User's Manual...
-
Page 2: Table Of Contents
Table of Contents 1.IMPORTANT INFORMATION ......1 2.SAFETY PRECAUTIONS ........1 3.STATEMENT ............2 4.OVERVIEW ............3 5.BASE STATION PANEL ........3-4 6.HEADSET PANEL ..........4 7.OPERATION ............. 5-8 8.HEADSET SYSTEM ........... 8 9.TROUBLE SHOOTING ........9 10.PACKING CONTENT ........10... -
Page 3: Important Information
Read this user's manual carefully before use and retain for future reference. It contains important information and notes regarding operation. The XW-IS4 warranty may not apply to the below cases: ■ Repairs or product modification and alterations have been executed by unauthorized service personnel. -
Page 4: Statement
Statement Usage in the following environments, it may cause the talk mistake (noise, voice interrupted). 1. Between the thick wall or obstacle blocked. 2. Close to the truck, large-scale metal objects or crowd. 3. Large transformer or high voltage transformer substation nearby 4. -
Page 5: Overview

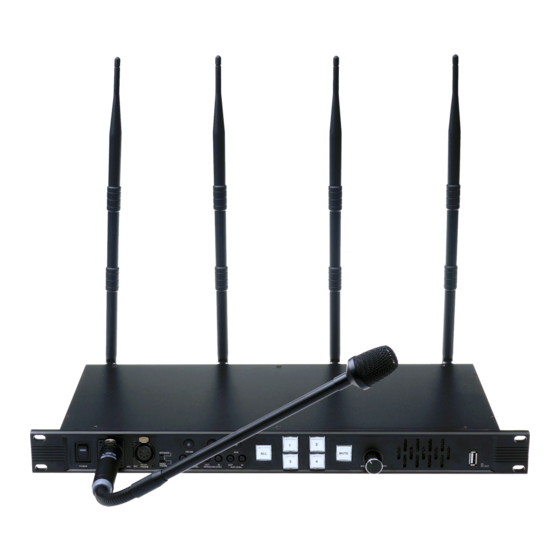

Overview XW-IS4 is a full duplex wireless Intercom system. It's designed for live show, stage, broadcast, and other applications where wireless communication is required. It features advanced digital wireless and Audio Codec technology to allow the director, cameraman, control room communicate freely. -
Page 6: Headset Panel
Base Station Back Panel AUX AUDIO INTERCOM 1.9G 1.8G TALLY A TALLY B OUTPUT INPUT 2 WIRE 4 WIRE 10V-20V DC IN AC IN ■AC IN: AC power input ■DC IN: DC power input ■Frequency switch: Convert 1.9G/1.8G ■Tally input(Pin4,9,14 Ground): Video Red LED Green LED... -
Page 7: Operation
Operation Indicators 1) Full-Duplex: Base Station “CHx” light flashes; Headset “MIC” light flashes; “System” light is on. 2) Half-Duplex: Base Station “CHx” light is on; Headset “MIC” light if off; “System” light is on. 3) Headset call Base Station: Base Station “CHx” indicator light flashes quickly;... - Page 8 Note: 1) After registration between Base Station and Headset, they can't communicate each other until they log out from registration. 2) After Base Station succeeds in registration with Headset, please restart Base Station. Headset will connect with Base Station automatically and go into Half-Duplex communication (When Base Station “CHx”...
- Page 9 Base Station Communicates with Headset and Indicator ■ Base Station Communicates with Headset and Indicator 1. Base Station communicates with all Headsets a. Base Station quit all Headsets from talk, or Base Station is just power on and in Half-Duplex mode, pressing “ALL” button, system including all Headsets goes into Full-Duplex mode.
-
Page 10: Headset System
■Headset Go into Talk Group Briefly Pressing Base Station “ALL” button, all Headsets are quit from a talk group; the system goes into Half-Duplex mode. Pressing Headset “MIC” button at this moment, Headset can go into talk group briefly. “CHx” light and “MIC” light flash (3s OFF, 1s ON);... -
Page 11: Troubleshooting
Troubleshooting Problem Solution The coverage 1. Check if the antenna of Base Station is range is short loose or broken or communication 2. Check if the power of battery of Headset is quality is bad 3. If there is high voltage, high power equipment or high intensity magnetic nearby 4. -
Page 12: Packing Content
Please check whether the following items are present in the package. If any items missed or damaged, please contact your dealer. PRO-X or Description Quantity Mark XW-IS4 Base Station Separate Headset Packing in Soft Bag Antenna(Base Station) Microphone Expanded Antenna...
