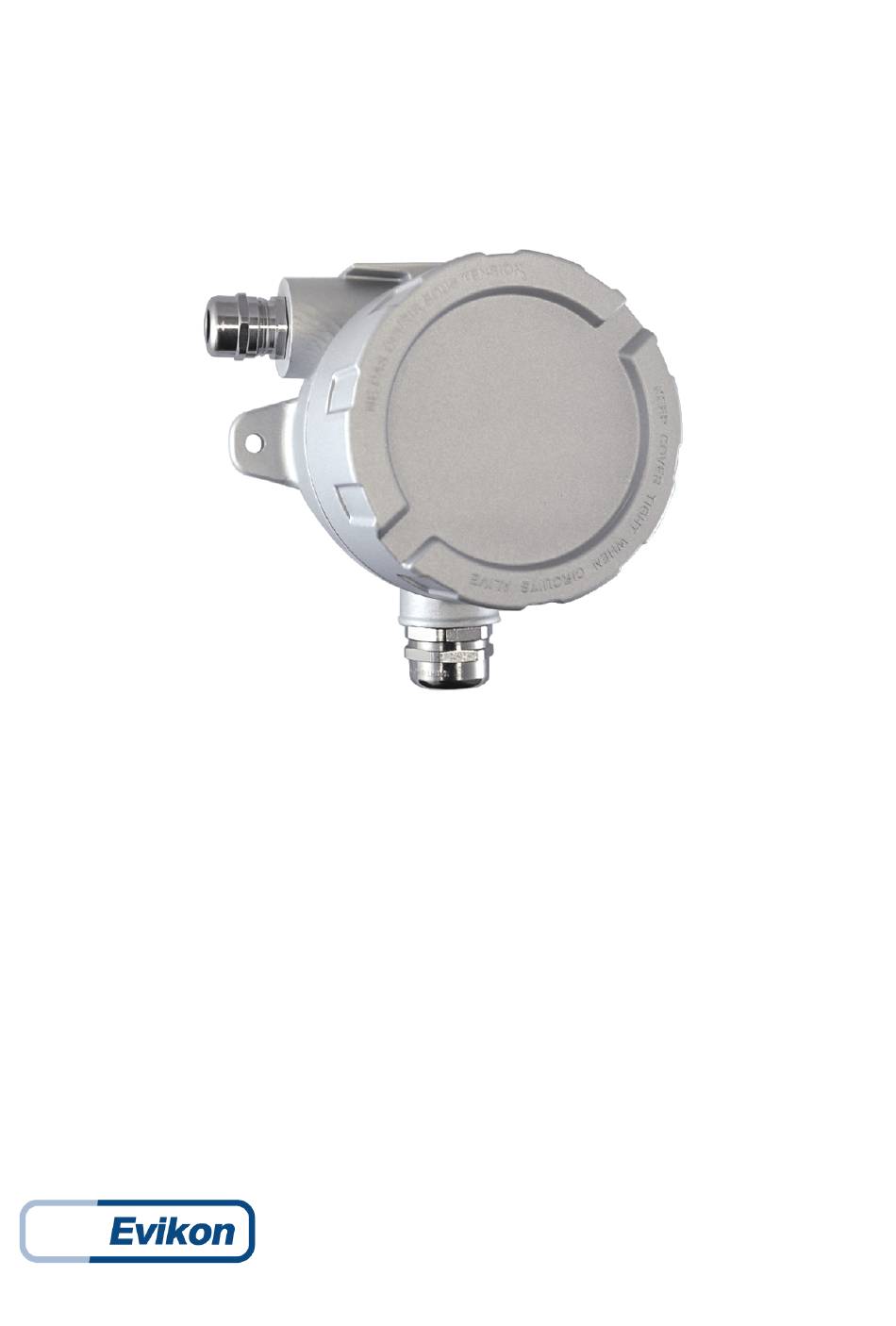

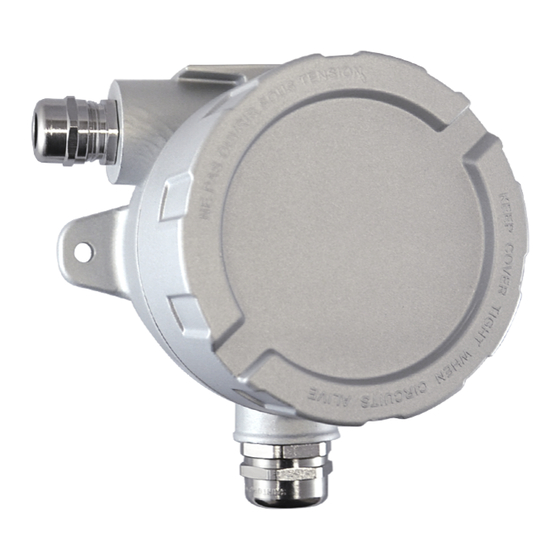

- Page 1 ® PluraSens Flameproof Combustible Gas Detector-Transmitter E2670-LEL User Manual...
-
Page 2: Table Of Contents
E2670-LEL Rev 15.03.2023 Table of contents Acetylene Butane Hexane Hydrogen Methane Octane Propane Specifications Product description Safety requirements Operating conditions Installation guidelines Mounting dimensions Electrical connections Correct and incorrect cabling for 24 VAC Operation Maintenance Calibration Delivery setDetector-transmitter E2670 Order code for E2670-LEL options Configuring Return to default settings Modbus RTU Communication... - Page 3 E2670-LEL Rev 15.03.2023 Modbus holding registers Warranty Manufacturer contacts...
-
Page 4: Acetylene
E2670-LEL Rev 15.03.2023 Acetylene A colorless flammable gas, lighter than air. Mixtures with air are explosive. It results from the interaction of calcium carbide with water. In industrial production, acetylene is mainly manufactured by the pyrolysis of light hydrocarbons. Acetylene is widely used for welding and cutting of metals. The usage of acetylene as a feedstock in the chemical industry declines due to cost and environmental considerations. -
Page 5: Butane
E2670-LEL Rev 15.03.2023 Butane A colorless flammable gas that is heavier than air. The term “butane” is used for any of two structural isomers (n-butane or iso-butane, with unbranched and branched-chain respectively) or for their mixture. Occurs in light petroleum fractions. Butane is used mainly as a fuel and as a feedstock in organic synthesis. -
Page 6: Hexane
E2670-LEL Rev 15.03.2023 Hexane A colorless flammable gas that is heavier than air. Hexane is a constituent component of gasoline. It is widely used in solvents as it is cheap, relatively safe and largely unreactive. It is also used as an industrial cleaner and degreaser and is an ingredient in many consumer products. -
Page 7: Hydrogen
E2670-LEL Rev 15.03.2023 Hydrogen A colorless, odorless, flammable gas that is much lighter than air. Mixtures with air are explosive. Results from the interaction of acids, bases, and water with active metals and from the electrolysis of aqueous solutions. In industrial production, the main source of hydrogen is hydrocarbons. -
Page 8: Methane
E2670-LEL Rev 15.03.2023 Methane A colorless flammable gas, the main component of natural gas, marsh gases. Methane results from bacterial decomposition of plant and animal matter (landfill gas). Methane is widely used as a fuel and chemical feedstock. Synonyms: Marsh Gas, Natural Gas, Carbon tetrahydride, Hydrogen carbide. Chemical formula Molar weight Relative gas density (to air) -
Page 9: Octane
E2670-LEL Rev 15.03.2023 Octane A colorless flammable gas that is heavier than air. Octane is a component of gasoline (petrol). Chemical formula Molar weight 114.23 Relative gas density (to air) 3.86 Conversion* 1 ppm = 4.67 mg/m3 Boiling point 125.6 °C Low explosive limit (LEL), % vol. -
Page 10: Propane
E2670-LEL Rev 15.03.2023 Propane A colorless flammable gas that is heavier than air. It occurs in light petroleum fractions. Propane is used mainly as a fuel and as a feedstock in organic synthesis. It is applied also as a propellant in aerosol sprays and may be used as an ozone-friendly refrigerant. Mixtures of propane with butane and other hydrocarbons are referred to as LPG (liquefied petroleum gas). -
Page 11: Specifications
E2670-LEL Rev 15.03.2023 Specifications Sampling method Diffusion Sensor type Metal oxide semiconductor Catalytic (pellistor) Typical detection range 0…100% LEL 0…100% LEL Resolution / digital unit 0.1% LEL 1% LEL Response time T90 ca. 60 s 10 s ≤ Sensor lifetime >5 years >3 years Operating temperature... - Page 12 E2670-LEL Rev 15.03.2023 IECEx FTZU 12.0017U II 2 G Ex db IIC Gb II 2 D Ex tb IIIC Db Glands: ATEX / IECEx EESF 19 ATEX 023X II 2G Ex db IIC Gb II 2D Ex tb IIIC Db IP66 According to 2014/30/EU and 2014/34/EU, EN 61000-6-3:2020, EN 61326-1:2013 (EMC, Emissions) EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61326-2-1:2013 (EMC,...
-
Page 13: Product Description
E2670-LEL Rev 15.03.2023 Product description E2670 is a series of flameproof gas detectors-transmitters intended for operation in safe zones and ATEX Zones 2 and 22. E2670 series devices are based on the PluraSens® multifunctional platform and provide all its features. The instruments utilize gas sensors of various types with excellent repeatability, stability, and long lifetime. -
Page 14: Operating Conditions
E2670-LEL Rev 15.03.2023 Operating conditions The device should be used in a basic electromagnetic environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Although E2670 series devices are suitable for use in the presence of flammable dust, special precautions should be taken when operating in a dusty environment. - Page 15 E2670-LEL Rev 15.03.2023 The device is fixed on the wall using two fixing holes located outside the sealed area of the device (see dimensional drawing). Unscrew four lid screws and detach the lid from the detector. Fix the detector on the wall and earth the enclosure using an earthing terminal on the side of the device.
-
Page 16: Mounting Dimensions
E2670-LEL Rev 15.03.2023 Mounting dimensions Mounting holes... -
Page 17: Electrical Connections
E2670-LEL Rev 15.03.2023 Electrical connections Unscrew lid from the device. Use the M20 cable gland to let in cables of the power supply and of the external devices. Attach the power cable to the device without turning it on. Using the connection diagram below, connect the analog outputs and digital interface terminals to the relevant devices according to your tasks. - Page 18 E2670-LEL Rev 15.03.2023 Jumpers OUT1 type (open: 4-20 mA; closed 0-10 V) OUT2 type (open: 4-20 mA; closed 0-10 V) Reset Modbus network parameters to default X4 terminals OUT1 4-20 mA / 0-10 V output OUT2 4-20 mA / 0-10 V output 0 V / 24 VAC Neutral (optional) RS485 A / Data + RS485 B / Data -...
-
Page 19: Correct And Incorrect Cabling For 24 Vac
E2670-LEL Rev 15.03.2023 NOTE! The outputs are not galvanically isolated from the external power supply and share a common 0V. Allowed load resistance limits are stated in the Specifications table. To power the instrument from an external power source, connect terminals 0V and +U to the source. -
Page 20: Operation
E2670-LEL Rev 15.03.2023 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 30 minutes, but depending on the sensor type, it can take up to several hours. The operating status is indicated by the LED on the PCB of the device. -
Page 21: Delivery Setdetector-Transmitter E2670
E2670-LEL Rev 15.03.2023 Delivery setDetector-transmitter E2670 ● Mounting accessories: ○ 2 screws with plastic dowels Order code for E2670-LEL options E2670 options Order code Integrated 90...265 V mains power supply module E2670-LEL-230 Integrated 24 VAC power supply module E2670-LEL-24VAC Two SPST relays E2670-LEL-R Glands from both sides E2670-LEL-GBS... -
Page 22: Configuring
E2670-LEL Rev 15.03.2023 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more information. Detectors-transmitters E2670 share all functionalities of the PluraSens® multifunctional platform. The features and options include: Digital output change rate-limiting filter ●... -
Page 23: Modbus Rtu Communication
E2670-LEL Rev 15.03.2023 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU Communication parameters Parameter Permitted values Default... - Page 24 E2670-LEL Rev 15.03.2023 0x0006 6 / 40007 RW Response delay, ms 1...255 1 – No parity bit, 1 stop bit (default after factory reset) 2 – No parity bit, 2 stop bits 3 – Odd parity, 1 stop bit 0x0007 7 / 40008 RW Stop bits, parity bit * 4 –...
- Page 25 E2670-LEL Rev 15.03.2023 0 – none 2 – gas concentration 212 / Parameter tied to relay 0x00D4 9- – control by Modbus 40213 control, state set in MHR / 40215 213 / Forced state for relay 0x00D5 0 –off, 1 – on 40214 RE1*** Forced state for relay...
- Page 26 E2670-LEL Rev 15.03.2023 221 / LOW setpoint for relay 0x00DD 0...65535 (gas units) 40222 Specifications 222 / HIGH setpoint for relay 0x00DE 0...65535 (gas units) 40223 Specifications 223 / LOW setpoint for relay 0x00DF 0...65535 (gas units) 40224 Specifications 224 / HIGH setpoint for relay 0x00E0 0...65535 (gas units)
- Page 27 E2670-LEL Rev 15.03.2023 257 / 0x0101 Raw gas sensor data 0...4095, ADC units 40258 259 / Gas concentration, signed integer, 0x0103 40260 gas units -32000...+32000 (gas units) 261 / 0% value User 0x0105 -32000...+32000 gas units 40262 for analog output 1 defined 262 / 100% value...
- Page 28 Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
