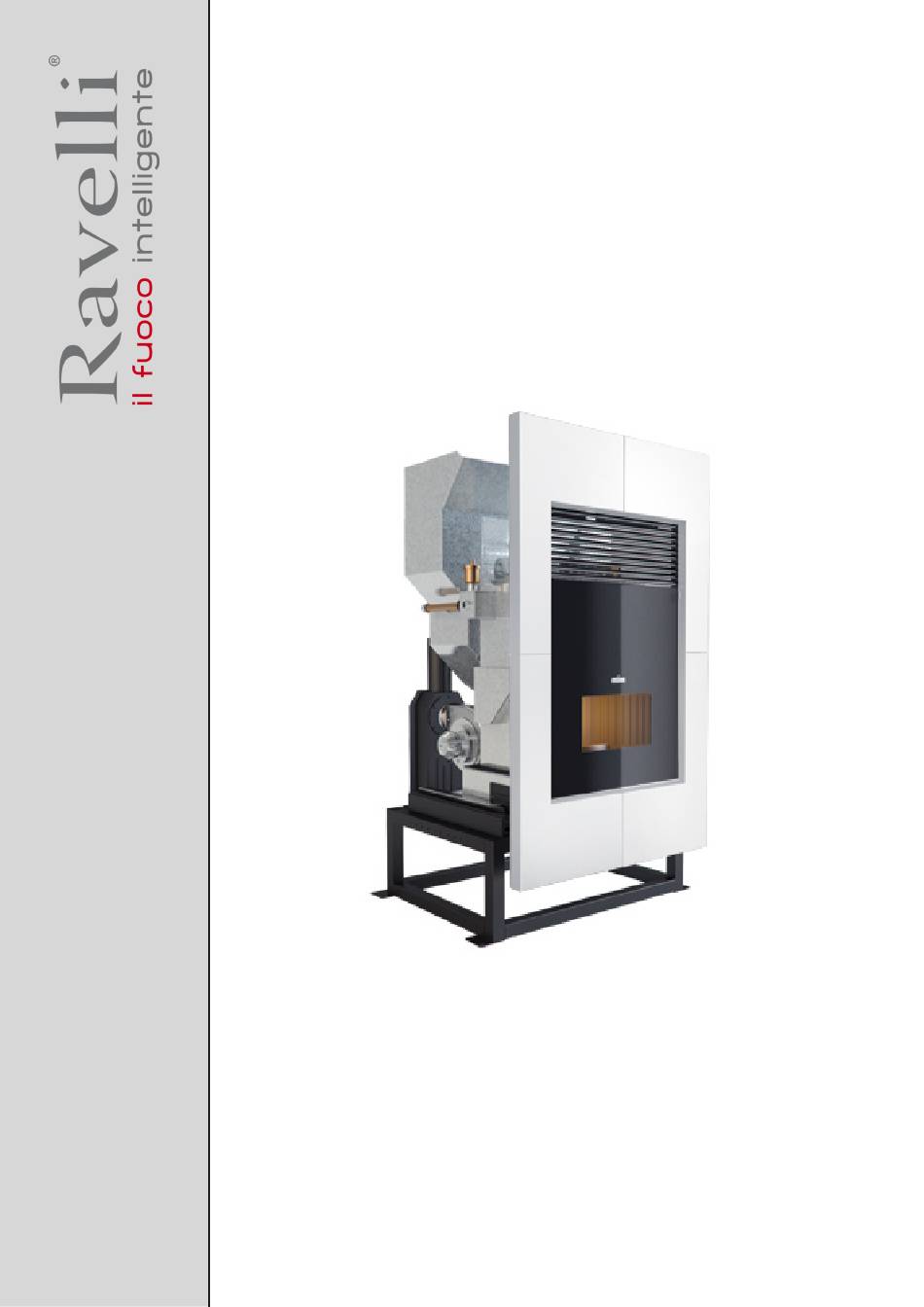

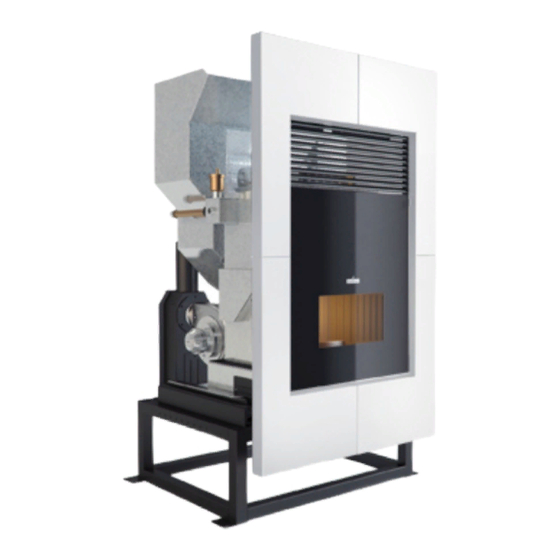

- Page 1 Brochure for HRB160 model...
- Page 2 Brochure for HRB160 model Stove, support and frame: stove FRAME STOVE stove SUPPORT...
-
Page 3: Combustion Chamber
Brochure for HRB160 model Manteinance and cleaning: Before carrying out any maintenance operation take the following precautions: - Make sure that the general power switch has been disconnected. - Make sure that all the parts of the stove are cold. - Page 4 Brochure for HRB160 model How to pull out the insert: In order to pull the stove out push down the unhooking lever (as shown below in the drawing). In order to pull the stove back into the fireplace, keep the lever pushed down until the stove completely fits in the fireplace.
- Page 5 Brochure for HRB160 model Cleaning of “T” discharge: Remove the two “M5” screws that fix the inspection door and the silicone seal to the discharge in order to access it and carry out cleaning operations. GASKET INSPECTION HATCH Cleaning of the tube bundle: The cleaning of the tube bundle is an operation to be carried out daily (WHEN THE STOVE IS COLD) moving 4-5 times TURBOLATORS mounted on the stove (as shown below in the drawing).
- Page 6 Brochure for HRB160 model Access to the debimeter and the electric mother board: In order to access to the debimeter and the mother board, pull the stove completely out along the entire lenght of the tele- scopics guides. MOTHER BOARD...
- Page 7 Brochure for HRB160 model The cable tightener (optional) Placed on the rear part of the support, the cable tightener is designed to avoid that, on extracting the stove, the power supply cable falls between the base of the stove and the support surface of the stove, resulting in damage and disconnection.
- Page 8 Brochure for HRB160 model Fix the drawer grate and pull the drawer in the dedicated space (as shown below in the drawing). In order to load the hopper of the frontal drawer, open the drawer pulling the frontal grate. Then load the pellet and push the pellet inside the hopper using the little shovel supplied togheter.
- Page 9 Brochure for HRB160 model Mount the pellet loading kit and its support as shown below in the drawing:...
- Page 10 Brochure for HRB160 model Frontal view of the stove after having mounted the lateral pellet loading kit. Maximum dimensions are indicated below.
- Page 11 Brochure for HRB160 model Connections to the hydraulic system: ROOM TEMPERATURE PROBE EXTERNAL THERMOSTAT FLOW SWITCH - OUTLET 3/4’’ inches - DISCHARGE Ø 18 - INLET 3/4’’ inches...
- Page 12 Via Kupfer, 31 - 25036 Palazzolo sull’Oglio / BS - ITALY Tel. +39.030.7402939 Fax. +39.030.7301758 Internet : www.ravelligroup.it E-mail : info@ravelligroup.it Ravelli srl is not liable for any errors in this booklet and is free to make changes to the features of its products without prior warning.
