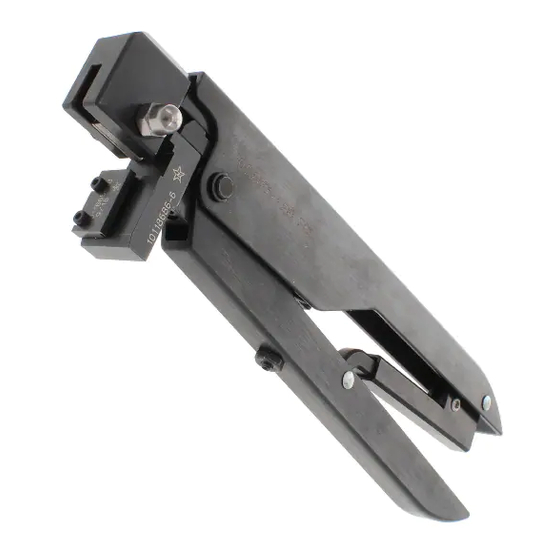

- Page 2 1.25mm WIRE-TO-BOARD (CRIMP-TO-WIRE) HAND TOOL P/N: 10118656-1000 FCI MANUAL P/N 10118656-9090 10118656-9090 FCI USA LLC Manual Part. No. Issued: (2011/09/12) Page 1 of 7 Revision B...
- Page 3 Loose-piece terminals cannot be terminated with this tool and should not be attempted • This tool is designed for prototype or field repair work only and is not intended for production o Request information regarding the availability of a Mini-Applicator from FCI for production quantities using the reeled fed terminals.
- Page 4 • The strip may be removed when the handles are fully open. 10118656-9090 FCI USA LLC Manual Part. No. Issued: (2011/09/12) Page 3 of 7...
- Page 5 (4) Move the terminal strip to locate another terminal into position for the next termination. (5) Lightly oil every third to fourth wire and insulation terminal barrels using terminal lubrication (i.e.: Chemlube #1102). 10118656-9090 FCI USA LLC Manual Part. No. Issued: (2011/09/12) Page 4 of 7...
-
Page 6: Spare Parts
10114827-002LF 28 - 32 1.00 Max 1.40 - 1.90 SPARE PARTS PART NUMBER DESCRIPTION QTY. 10118656-0001 Insulation Crimper 10118656-0002 Wire Crimper 10118656-0003 Anvil 10118656-0004 Cut-Off 10118656-9090 FCI USA LLC Manual Part. No. Issued: (2011/09/12) Page 5 of 7 Revision B... - Page 7 3. The tool may not give a good insulation wrap (crimp) for all insulation sizes. This tool is intended for standard conductor sizes. 4. FCI does not repair hand tools (see warranty). If the crimp tooling is damaged or worn, replacement tooling must be purchased.
-
Page 8: What To Do If You Need Service
Keep the handles partially closed to protect the crimping area from dirt and foreign particles when the hand-tool in not in use. WHAT TO DO IF YOU NEED SERVICE: In the event service or technical help regarding this hand tool is needed, FCI Electronics at 1-800-843- 6911. 10118656-9090 FCI USA LLC Manual Part.
