GENESIS-II DIRECTIONAL
3.4 Moving Mode Opposite Direction
Use the Genesis-II Directional in the Moving Mode
Opposite Direction setting to display the speed of a
target moving toward or away from the moving patrol
vehicle. These targets will be moving towards the patrol
vehicle (using the front antenna) or away from the
patrol vehicle (using the rear antenna).

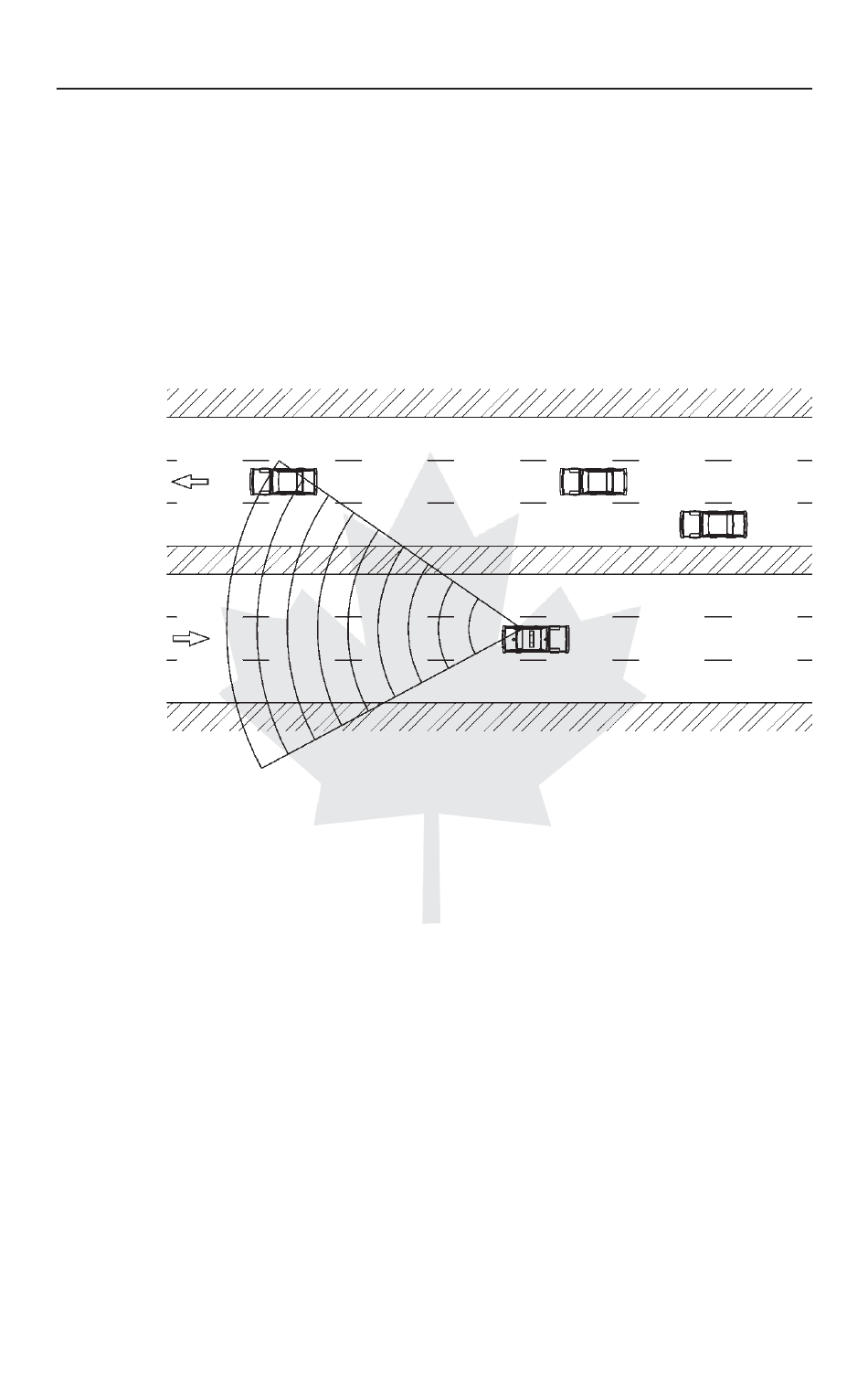

Figure 3.4a A patrol vehicle that is tracking a target
vehicle with the rear antenna while traveling with the
radar unit in Moving Mode Opposite Direction.
To select Moving Mode Opposite Direction, press the
MODE button until the MODE window displays a down
arrow on the left and an up arrow on the right. The
down arrow indicates the target's travel direction. The
up arrow indicates the patrol vehicle's travel direction.
™
USER'S AND INSTALLATION MANUAL
Rev. 02/05
25
