10
$" To install a CPU in the PL-ProMMX upgrade adapter:
1. Loosen the hex nuts at each corner of the provided CPU cooling fan/heatsink.
You should be able to freely move the heatsink up and down.
2. Turn your new CPU over (so that the pins are facing upward) and slide it under
the grooves at the sides of the CPU cooling fan/heatsink.
Pin 1
Pin 1

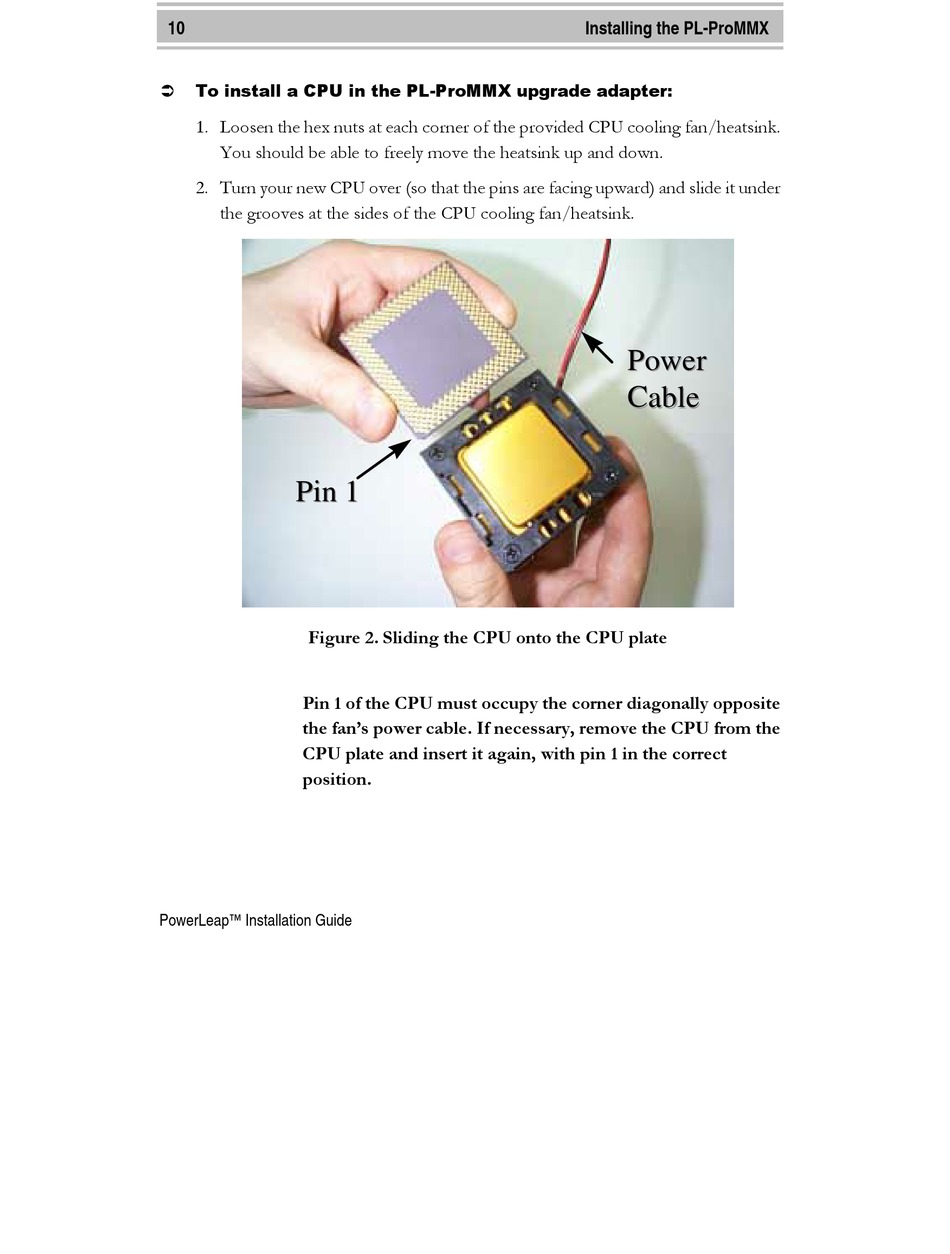

Figure 2. Sliding the CPU onto the CPU plate

Pin 1 of the CPU must occupy the corner diagonally opposite
the fan's power cable. If necessary, remove the CPU from the
CPU plate and insert it again, with pin 1 in the correct
position.
PowerLeap Installation Guide
™
Installing the PL-ProMMX
Power
Power
Cable
Cable
