Powerleap PL/586 133 Installation Manual

Processor upgrade for 486dx4, 486dx2, 486dx, 486sx2 and 486sx systems

Advertisement

Quick Links

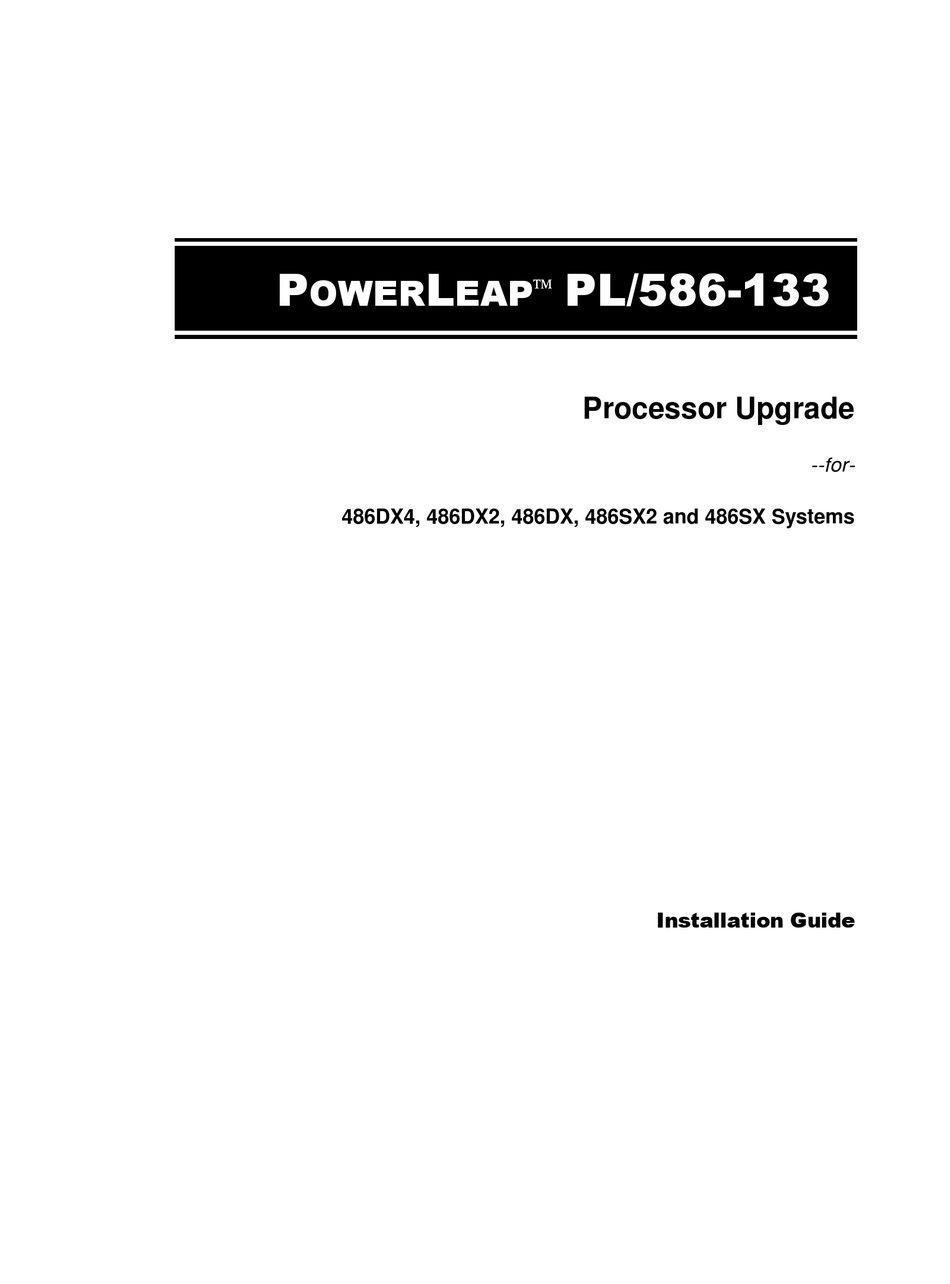

P
L
PL/586-133
OWER
EAP
Processor Upgrade
--for-
486DX4, 486DX2, 486DX, 486SX2 and 486SX Systems
Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the PL/586 133 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powerleap PL/586 133

  • Page 1 PL/586-133 OWER  Processor Upgrade --for- 486DX4, 486DX2, 486DX, 486SX2 and 486SX Systems Installation Guide...
  • Page 2 Copyright  1995-1997 All Rights Reserved. October 1997 v1.01, February 2000 The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 3 Opening Your Computer & Locating the CPU Removing the CPU Setting the SW1 DIP Switch SW1 Position 1: CPU Socket Type Selection SW1 Position 2: WB/WT Selection SW1 Position 3: Clock Multiplier for AMD X5-133 CPU Setting the JP1 Jumper Switch PowerLeap™ Installation Guide...
  • Page 4: Table Of Contents

    Figure 5. Surface-mounted CPU with Overdrive socket ___________________________________ 11 Figure 6. Removing the CPU (standard and ZIF sockets)__________________________________ 13 Figure 7. The PowerLeap™ PL/586-133 SW1 DIP switch ________________________________ 14 Figure 8. Orienting and inserting the processor upgrade (standard and ZIF sockets)_____________ 18...
  • Page 5 Introduction Introduction Your PowerLeap™ PL/586-133 is a clock- tripled/quadrupled processor upgrade for 80486SX/SX2, 80486DX/DX2, and 80486DX4 computers. The PowerLeap™ processor upgrade uses the AMD X5-133 CPU (Am5x86-P75 CPU). PowerLeap™ installs directly into your computer’s existing CPU socket or, if you cannot remove the original CPU, into an Intel Overdrive or 80487SX socket.
  • Page 6 “Setting the JP1 Jumper Switch” later in this manual. You must use the JP1 jumper switch on the PowerLeap™ upgrade to select the 3.3V/3.45V CPU voltage setting. For more information, please see the section “Setting the JP1 Jumper Switch” later in this manual.
  • Page 7 If any of these items is missing or damaged, contact the dealer from whom you purchased PowerLeap™. Save the packing materials for future use. Leave the PowerLeap™ processor upgrade in its original packing until you are ready to install it.
  • Page 8 Introduction PowerLeap™ Installation Guide...
  • Page 9 Installing PowerLeap™ PL/586-133 Installing PowerLeap PL/586-133 ™ The PowerLeap™ PL/586-133 processor upgrade can be installed in a wide variety of 486SX/SX2, 486DX/DX2, and 486DX4 computers. The installation process will depend on your computer’s CPU configuration. Getting Started To compare the performance increase provided by PowerLeap™, we suggest running the Landmark System Speed Test both before and after installation.
  • Page 10: Figure 1. Locating Pin 1

    Installing PowerLeap™ PL/586-133 Locating Pin 1 When you install the processor upgrade, pin 1 must be installed in the pin 1 hole of the motherboard’s CPU socket. The pin 1 corner of the processor upgrade is indicated by a triangular tab.
  • Page 11 • Surface-mounted: the CPU is soldered directly to the motherboard • Socketed: the CPU is inserted in either a standard or ZIF socket The PowerLeap™ offers several installation options to match your computer’s CPU configuration. For socketed configurations, you can remove the computer’s original CPU and install the processor upgrade in the CPU socket.
  • Page 12: Figure 2. Socketed Cpu

    For this option, remove the computer’s original CPU and install the PowerLeap™ processor upgrade in the computer’s original CPU socket. Figure 2. Socketed CPU Before installing the PowerLeap™ processor upgrade, make sure that position 1 of SW1 is OFF. PowerLeap™ Installation Guide...
  • Page 13: Figure 3. Socketed Cpu With Overdrive Socket

    (refer to the figure below). The Overdrive socket is not used. Figure 3. Socketed CPU with Overdrive socket Before installing the PowerLeap™ processor upgrade, make sure that position 1 of SW1 is OFF. PowerLeap™ Installation Guide...
  • Page 14: Figure 4. Surface-Mounted 80486Sx Cpu With 80487Sx Socket

    (refer to the figure below). You will not be able to remove the surface-mounted 80486SX CPU from the motherboard. Figure 4. Surface-mounted 80486SX CPU with 80487SX socket Before installing the PowerLeap™ processor upgrade, make sure that position 1 of SW1 is ON. When you install the PowerLeap™ in the 80487SX socket, you may have to set jumper switches for the socket on the motherboard (see the documentation that came with the board).
  • Page 15: Figure 5. Surface-Mounted Cpu With Overdrive Socket

    (refer to the figure below). You will not be able to remove the surface-mounted CPU from the motherboard. Figure 5. Surface-mounted CPU with Overdrive socket Before installing the PowerLeap™ processor upgrade, make sure that position 1 of SW1 is ON. When you install the PowerLeap™ in the Overdrive socket, you may have to set jumper switches for the socket on the motherboard (see the documentation that came with the board).
  • Page 16 Installing PowerLeap™ PL/586-133 Opening Your Computer & Locating the CPU Turn the computer off and disconnect all power cables from the computer. Remove the cover from the computer (as described in the computer’s documentation). Locate the CPU on the computer’s motherboard. The CPU will be clearly labeled with the manufacturer’s name (such as “Intel”), and markings identifying the CPU...
  • Page 17: Figure 6. Removing The Cpu (Standard And Zif Sockets)

    • If the CPU is installed in a ZIF socket, unlatch the sidebar lever, retaining screw, or overhead bar. When the CPU is loosened, lift it out of the socket with your fingers. Figure 6. Removing the CPU (standard and ZIF sockets) After removing the CPU, store it in the PowerLeap™ packaging. PowerLeap™ Installation Guide...
  • Page 18: Figure 7. The Powerleap™ Pl/586-133 Sw1 Dip Switch

    Before installing the processor upgrade, you must set the SW1 DIP switch on the PowerLeap™. You can find SW1 on the top of the Power Leap™ PL/586-133. The SW1 DIP switch is shown in the following figure and described below.
  • Page 19 Installing PowerLeap™ PL/586-133 SW1 Position 1: CPU Socket Type Selection The PowerLeap™ offers several installation options to match your computer’s CPU configuration. Before installing the processor upgrade, you must specify the selected socket type by setting position 1 of the SW1 DIP switch. This position is set to OFF by default.
  • Page 20 3 CPU socket), the system BIOS will automatically set the CPU to run in WT mode. SW1 Position 3: Clock Multiplier for AMD X5-133 CPU The PowerLeap™ is a clock- tripled/quadrupled processor upgrade for 80486SX/SX2, 80486DX/DX2, and 80486DX4 computers. By default, the processor upgrade is set to clock-quadrupled mode.
  • Page 21 Installing PowerLeap™ PL/586-133 The following table shows the recommended SW1 settings for available PowerLeap™ upgrades. Position 3 Original CPU & Speed Upgrade Speed 80486DX2-80 120MHz 80486DX-40 ( 3x ) 80486SX/DX-33 133MHz 80486DX2-66 ( 4x ) 80486DX4-100 80486SX/DX-25 100MHz 80486DX2-50 ( 4x )
  • Page 22: Figure 8. Orienting And Inserting The Processor Upgrade (Standard And Zif Sockets)

    Installing PowerLeap™ PL/586-133 Orienting & Inserting PowerLeap™ Before starting installation, locate pin 1 on the PowerLeap™ processor upgrade and the pin 1 hole on the motherboard CPU socket (see the figure below). When you install the processor upgrade, pin 1 of the processor upgrade must be installed in the pin 1 hole of the motherboard CPU socket.
  • Page 23 Installing PowerLeap™ PL/586-133 Inserting PowerLeap™ in a Standard or 80487SX Socket Align the pins of the processor upgrade with the holes of the socket. If you are installing the processor upgrade in a 238-pin socket (socket 3), make sure that the processor is positioned in the center of the socket.
  • Page 24 If the computer does not boot, refer to the “Troubleshooting” section later in this guide. Because PowerLeap™ does not require any software drivers, there is no software installation to perform. However, we recommend that you run the Landmark System Speed Test to compare the performance increase provided by PowerLeap™.
  • Page 25 • • The SW1 DIP switch on Use SW1 to select the correct the PowerLeap™ is not CPU socket type (refer to the set correctly. section “Identifying the CPU Configuration & Choosing an Installation Option”). PowerLeap™ Installation Guide...
  • Page 26 486SX CPU to coprocessor. set correctly. the PowerLeap™, set the CPU type jumper switch to change the CPU type from SX to DX. For details, refer to the documentation that came with your computer.
  • Page 27 32KB. Because the (Cyrix) 5X86 CPU’s 16KB on-chip cache is a four-way set associative write-back design, your system performance will still be better than a traditional cache design, even after reducing the on-board cache size. PowerLeap™ Installation Guide...
  • Page 28 Troubleshooting PowerLeap™ Installation Guide...
  • Page 29 Running the Landmark System Speed Test Running the Landmark System Speed Test To compare the performance increase provided by PowerLeap™, we suggest running the Landmark System Speed Test® both before and after installation of the processor upgrade. The Landmark System Speed Test® is provided on the software distribution floppy disk.
  • Page 30 <F10>. Perform the test for xx seconds, the quit. The following table shows the approximate Landmark System Speed Test® results for the PowerLeap™ and other 80486 CPUs. Note that the results may vary slightly for different systems. CPU Model...
