The PowerLeap PL-ProMMX
™
Cyrix/IBM 6x86MX CPU
6x86MX-PR233GP (66/3.0x)
#6x86MX-PR233GP (75/2.5x)
#6x86MX-PR266GP (83/2.5x)
# For systems with an external clock speed faster than 66MHz.
Cyrix/IBM MII CPU
MII-300GP (66/3.5x)
#MII-333GP (75/3.5x)
# For systems with an external clock speed faster than 66MHz.
SW1 Settings: Clock Multiplier and Voltage
Settings
This section shows the SW1 clock multiplier and voltage settings for Intel, AMD,
Cyrix/IBM and IDT CPUs. To reduce power consumption, dual-voltage CPUs
use two separate supply voltages: an I/O interface voltage and a lower core voltage
for the processor.

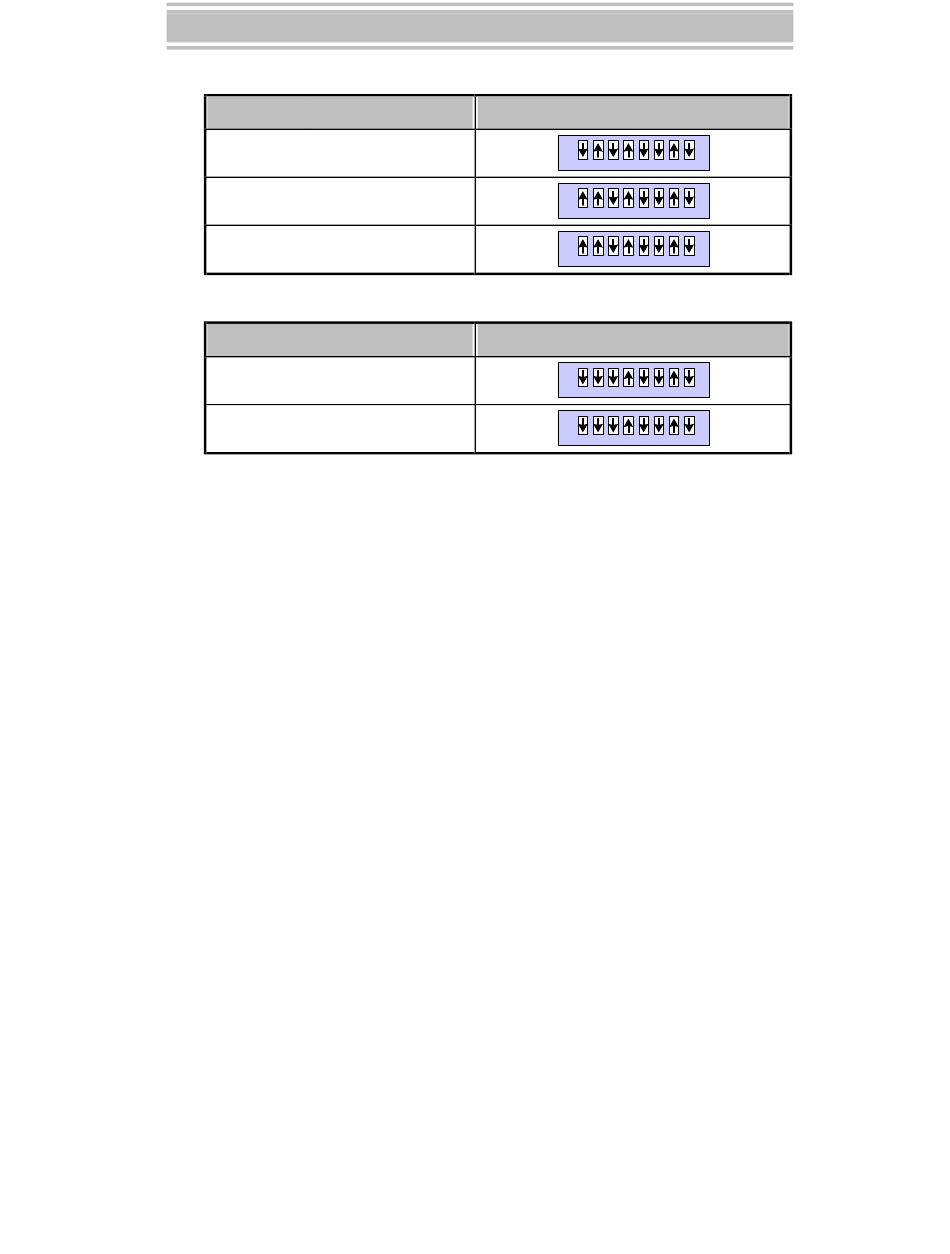

SW1 Settings
O N
1 2 3 4 5 6 7 8
O N
1 2 3 4 5 6 7 8
O N
1 2 3 4 5 6 7 8
SW1 Settings
O N
1 2 3 4 5 6 7 8
O N
1 2 3 4 5 6 7 8
PowerLeap Installation Guide
™
7
