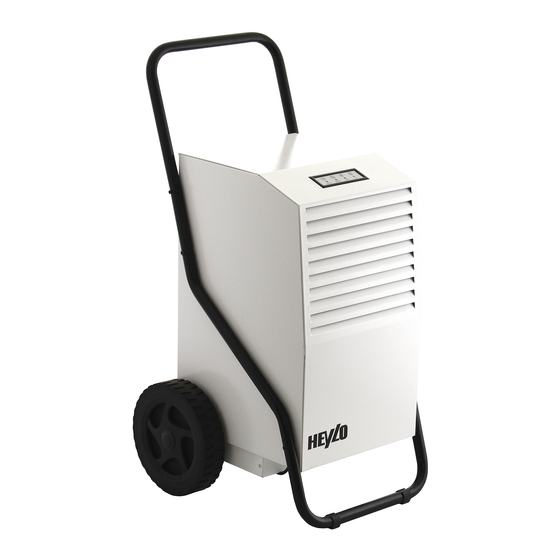

Summary of Contents for Heylo DT 850

  • Page 1 Stand: 01/2020 Profi-Technik f Art.-Nr. 1 110 602 DER EXPERTE FÜR PROFIS DT 850 ENTFEUCHTER BEDIENUNGSANLEITUNG USER MANUAL Entfeuchter Dehumidifier...
  • Page 2: Table Of Contents

    Typ: DT 550, DT 650, DT 750, DT 850, DT 950 HEYLO GmbH, Im Finigen 9, 28832 Achim, erklärt, dass die genannten Maschinen, wenn sie gemäß Bedienungsanleitung und nach den anerkannten Regeln der Technik installiert, gewartet und gebraucht werden, den grundlegenden Sicherheits- und Gesundheitsanforderungen der Richtlinie „Maschinen“, sowie folgenden Bestimmungen und Normen entsprechen.
  • Page 3: Sicherheitshinweise

    Hersteller keine Haftung. Kinder fernhalten: Kinder nicht mit dem oder in der Nähe des Geräts spielen lassen. Elektrischer Anschluss: HEYLO Bautrockner sind für den Betrieb mit 230V/50Hz ausgelegt. Nur mit Schukostecker verwenden! Genutzte Steckdosen müssen geerdet sein, bzw. mit einem Fehlerstromschutzschalter in der Hausinstallation abgesichert sein.
  • Page 4: Aufstellen Des Kondensationstrockners

    Luft auf den nassen Bereich gerichtet ist und die warme, trockene Luft darüber fließt. Die Öffnung sollte mindestens einen Meter von der Wand entfernt sein. Der HEYLO-Kondensationstrockner erwärmt die Luft, der er die Feuchtigkeit entzieht. In kleineren Räumen kann dadurch die Temperatur beträchtlich ansteigen. Zimmertemperaturen zwischen 20° und 27°C bieten allgemein gute Bedingungen für das Trocknen.
  • Page 5 Das Kontrollfeld befindet sich in der oberen Abdeckung des Gerätes und ist mit vier Kontrollleuchten versehen. Den Regulierdrehknopf (A) zum Ein- und Ausschalten und zum Einstellen des Feuchtegrades finden Sie auf der Rückseite des Entfeuchters. Kontrollfeld Unter jeder Kontrollleuchte ist in Kurzform die Funktion beschrieben. Tankanzeige (FULL 1) Grünes Licht „FULL”...
  • Page 6: Anschluss Kondensatablauf

    5.1. Was tun, wenn der Luftentfeuchter nicht einschaltet oder nicht entfeuchtet? Zuerst sollte man sich vergewissern, dass die rote Kontrollleuchte “POWER” leuchtet. Damit ist sichergestellt, dass das Gerät mit Strom versorgt ist, andernfalls kontrolliert man, ob der Stecker richtig eingesteckt ist und ob die Steckdose auch wirklich mit Strom versorgt ist. Vergewissern sie sich, dass die grüne Kontrollleuchte „FULL”...
  • Page 7: Periodische Wartung

    Luftrichtungssinn von der engen zur weiten Seite den Filter spült. Nach ca. ½ Jahr sollten die Filter ausgetauscht werden. Bitte beachten Sie, dass durch den Einsatz sauberer Filter die Effektivität des Entfeuchters sehr stark angehoben werden kann. Diese Filter können bei HEYLO als Ersatzteile bezogen werden, bitte sprechen Sie uns an! 8. Technische Daten Elektrischer Anschluss...
  • Page 8: Ersatzteilliste

    9. Ersatzteilliste...
  • Page 10 Pos. HEYLO Art.-Nr. Beschreibung DT850041 Steuerelektronik DT850039 Schalteinheit DT850040 Schaltknopf DT950011 Bedienpanelhalterung DT950012 Bedienpanel DT850006 Gehäusewand Rechts DT850007 Gehäusewand Links DT850050 Gehäusefront DT850009 Verdampfereinheit DT850010 Kondensatwanne DT850011 Abdeckung Verdampfer oben DT850012 Verflüssiger DT850013 Ventilatorflügel 14+15 DT850014 Ventilatormotor + Haltebügel DT850016...
  • Page 11: Schaltplan

    10. Schaltplan...
  • Page 12 DT 550, DT 650, DT 750, DT 850, DT 950 HEYLO GmbH of Im Finigen 9, D-28832 Achim, Germany, declares that, if they are fitted, maintained and used in conformity with the operating instructions and the generally accepted engineering standards, the machines mentioned are in keeping with the fundamental safety and health requirements of the “Machine Ordinance”...
  • Page 13: Safety Guidelines

    E-mail. (2) Mode of operation and demoisting performance DT 850 is a dehumidifierr. The dehumidifying function is produced by blowing moist ambient air across the cold evaporation unit. The humidity condenses on the cold surface and drips down. The condensate produced is passed into the condensation tank and can be removed by the optional condensate delivery pump or drain hose.
  • Page 14: Setting Up The Dehumidifier

    The opening should be at least one meter away from the wall. HEYLO dehumidifier heats the air which is drawn from the humidity. In smaller room, the temperature may increase considerably. Room temperatures of between 20 deg. and 27 deg. C offer good drying conditions as a rule.
  • Page 15 The control panel is in the upper cover of the device and equipped with four indicator lamps. The setting knob (A) for switching the device on and off and for setting the degree of moisture is located on the back side of the dehumidifier. Control panel Under each indicator lamp, the function is described in brief.
  • Page 16: Connection To Condensate Discharge

    After about six months the filter should be replaced. Please note that the use of a clean filter may increase the effectiveness of the dehumidifier very much. These filters can be obtained from HEYLO as spare parts - please get in touch!
  • Page 17: Technical Data

    (8) Technical data Electric connection V/Hz 230/50 Dehumidification performance 30 deg. C / 80 per cent rh l/24h Dehumidification performance max. l/24h Air flow rate cum/h Power input, max. 0.58 Current consumption Operating temperature °C 0.5 - 35 Large water tank Coolant Type R407c...
  • Page 18: List Of Spare Parts

    (9) List of spare parts...
  • Page 20 Item HEYLO Art. No. Description DT850041 Control electronics DT850039 Switching unit DT850040 Control button DT950011 Control panel bracket DT950012 Control panel DT850006 Housing wall right DT850007 Housing wall left DT850050 Housing front DT850009 Evaporator unit DT850010 Condensate tub DT850011 Cover evaporator top...
  • Page 21: Wiring Diagram

    (10) Wiring diagram...
  • Page 22 Fax +49 (0) 42 02 – 97 55 97 E-Mail: info@heylo.de Mieten Sie HEYLO-Produkte Hire HEYLO products Für Ihre Baustelle, Produktion oder Event über das HEYLO-Miet-Netzwerk: For your construction site, production facility or event via the HEYLO rental network: www.heylo-mietservice.de HEYLO GmbH Im Finigen 9 28832 Achim info@heylo.de...
