Summary of Contents for hanshow HS-AT3511
- Page 1 Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual V1.0.0 HS-SIGNAGE-AT3511001 For more information, visit our website at: http://www.hanshow.com...
- Page 2 Hanshow. Offenders will be liable for any and all damages caused by their offence hereof and will be subject to all remedies that Hanshow is entitled to seek under applicable laws.
-
Page 3: About The Document
The manual mainly introduces functions, structure, hardware parameters, performance, installation, and precautions for shelf edge digital signage HS-AT3511. Thank you very much for shelf edge digital signage HS-AT3511. Please read the product manual carefully before using this product, retain the document for subsequent use or for the next owner. -
Page 4: Explanation Of Terms
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual EXPLANATION OF TERMS Term Expanded form Description Local Area Network Local Area Network Liquid Crystal Display Liquid Crystal Display Radio Frequency Radio Frequency RS232 EIA-RS-232 EIA-RS-232 Universal Serial Bus Universal Serial Bus... -
Page 5: Table Of Contents
4.1.1 Wi-Fi settings ...................... 11 4.1.2 Ethernet settings ....................13 4.2 System upgrade ......................14 5 Activation ..........................15 6 Packing list ..........................16 6.1 Packing diagram ......................16 6.2 Package contents ......................16 Hanshow Copyright Reserved © Zhejiang Hanshow Technology Co., Ltd. - Page 6 Figure 2-1 HS-AT3511 physical interfaces ............6 Figure 2-2 HS-AT3511 nameplate ................. 7 Figure 3-1 HS-AT3511 installation ................. 9 Figure 3-2 HS-AT3511 standard installation accessories ........10 Figure 3-3 HS-AT3511 assembly diagram ............10 Figure 4-1 Network settings selection page ............11 Figure 4-2 Turn on wireless network connection ..........
- Page 7 List of Tables List of Tables Table 1-1 HS-AT3511 basic configuration ............. 2 Table 2-1 HS-AT3511 specifications ..............4 Table 2-2 HS-AT3511 interface functions .............. 6 Table 2-3 HS-AT3511 nameplate information ............8 Table 2-4 HS-AT3511 appearance parameters ............. 8 Table 4-1 Wireless network static IP configuration options .........
-
Page 8: Overview
1 Overview HS-AT3511 is the first-generation shelf edge digital signage independently developed by Hanshow. With its high integration, HS-AT3511 meets the requirements for higher performance, nice appearance, shelf match, appropriate space, and low power consumption of shelf edge digital signage; thus providing users with better marketing business experience. -
Page 9: Performance
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual 1.2 Performance HS-AT3511 is an important component of Hanshow digital shelf and marketing system. As a terminal display device, it is responsible for displaying the data transmitted from the data center server. Connected with the digital marketing system through wireless network interface (Wi-Fi), HS-AT3511 establishes two-way 2.4G/5GHz wireless... -
Page 10: Functions
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual Name Description Video format: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV, and other video formats Up to 1080p Media playback Image format: JPG, BMP, PNG, GIF and other image formats Rotate/slide show Up to 4096*4096 1.3 Functions... -
Page 11: Hardware Features
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual 2 Hardware features This chapter describes specifications, physical interfaces, nameplate information, and appearance parameters of HS-AT3511. 2.1 Specifications Table 2-1 describes HS-AT3511 specifications. Table 2-1 HS-AT3511 specifications Power module Input voltage DC 12V Maximum current 2.5A... - Page 12 Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual Ultra-high sensitivity ＜-70dBm Ethernet module Connection rate 10/100M (adaptive) Auto-negotiation Supported Polarity adaptation Supported DHCP Supported Bluetooth module Working frequency 2402MHz ~ 2480MHz Channel bandwidth ＜20M Modulation mode FHSS/GFSK/DPSK/DQPSK Transmission rate 1M/2M/3M...
-
Page 13: Physical Interfaces
USB 2.0 port extended from Type-C port. Used to connect salve USB port devices such as U disk. Extended from Type-C port to connect DC power adapter. Hanshow Power port provides standard 12V-2A adapter. The port can also provide 12V output power. -
Page 14: Nameplate
USB 2.0 port extended from Type-C port. Used to connect salve USB port devices such as U disk. Note: Be sure to use the cables provided by Hanshow. For more information, see Hanshow Cable User Manual. 2.3 Nameplate HS-AT3511 nameplate is as shown in Figure 2-2. -
Page 15: Appearance Parameters
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual Table 2-3 describes the information on HS-AT3511 nameplate. Table 2-3 HS-AT3511 nameplate information Area Description NAME: Product category Upper-left gray box MODEL: Unique model name in Hanshow area RATING: Rated voltage and current... -
Page 16: Installation

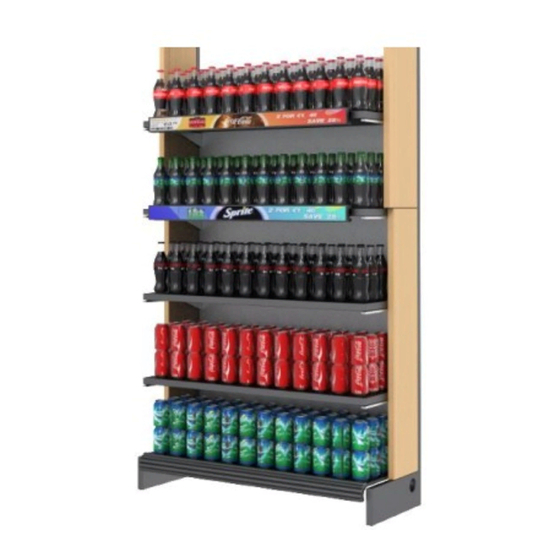

Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual 3 Installation This chapter introduces HS-AT3511 installation and required accessories. 3.1 Description HS-AT3511 needs to be installed on the shelf end for better effects of visual playback and marketing campaign, as shown in Figure 3-1. -
Page 17: Installation Accessories
It’s recommended to use hanging installation method, as shown in Figure 3-3. Figure 3-3 HS-AT3511 assembly diagram Note: For information of detailed installation instructions and other installation methods, see Hanshow Shelf Edge Digital Signage HS-AT3511 Installation Manual. Hanshow Copyright Reserved © Zhejiang Hanshow Technology Co., Ltd. -
Page 18: Operations
This chapter describes network settings and system upgrade of HS-AT3511. 4.1 Network settings HS-AT3511 currently only supports direct operation of the device for network settings. HS-AT3511 support both Wi-Fi and Ethernet connections. You can configure network environment according to actual use scenarios. -
Page 19: Figure 4-3 Enter Wireless Network Password
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual connects to the wireless network, as shown in Figure 4-3. If the entered password is correct, the system connects to the wireless network successfully, and shows message indicating successful network connection. This completes the DHCP (dynamic IP assignment) configuration of the wireless network. -
Page 20: Ethernet Settings
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual Configuration item Description IP address IP address, can be configured when IP setting is set to static. Gateway address, can be configured when DHCP is selected for IP Gateway settings. The bit length of the network prefix, usually 24, can be configured Network prefix length when DHCP is selected for IP settings. -
Page 21: System Upgrade
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual 3. Select DHCP or Static IP. If Static IP is selected, the bottom of the page shows some configuration items, as shown in Table 4-2. Table 4-2 Ethernet static IP configuration options... -
Page 22: Activation
2. Make sure to use the standard 12V power adapter. 3. After power-on, the backlight of HS-AT3511 display is on, and the system starts to start. 4. The startup time is about 35 seconds. After system startup, the screen displays standard system interface or preset playback content. -
Page 23: Packing List
Hanshow Shelf Edge Digital Signage HS-AT3511 Product Manual 6 Packing list This chapter introduces the packing diagram and contents of HS-AT3511. 6.1 Packing diagram Figure 6-1 shows the packing of HS-AT3511. Figure 6-1 HS-AT3511 packing diagram 6.2 Package contents HS-AT3511 package contains: ...
