OWNER'S
MANUAL
Product May Vary Slightly From Picture
MADE IN TAIWAN
Excessive
Exercise can present a health risk. Consult a physician before beginning any
exercise program with this equipment.
If you feel faint or dizzy, immediately discontinue use of this equipment. Serious bodily injury
can occur if this equipment is not assembled and used correctly. Serious bodily injury can also
occur if all instructions are not followed.
Keep children and pets away from equipment when in use. Always make sure all bolts and nuts
are tightened prior to each use. Follow all safety instructions in this manual.
CAUTION: WEIGHT ON THIS PRODUCT SHOULD NOT EXCEED 136KG / 300LBS.
VERSION: V.1
Advertisement
Related Manuals for Orbit Fitness ST-0216
Summary of Contents for Orbit Fitness ST-0216
- Page 1 OWNER’S MANUAL Product May Vary Slightly From Picture MADE IN TAIWAN Excessive Exercise can present a health risk. Consult a physician before beginning any exercise program with this equipment. If you feel faint or dizzy, immediately discontinue use of this equipment. Serious bodily injury can occur if this equipment is not assembled and used correctly.

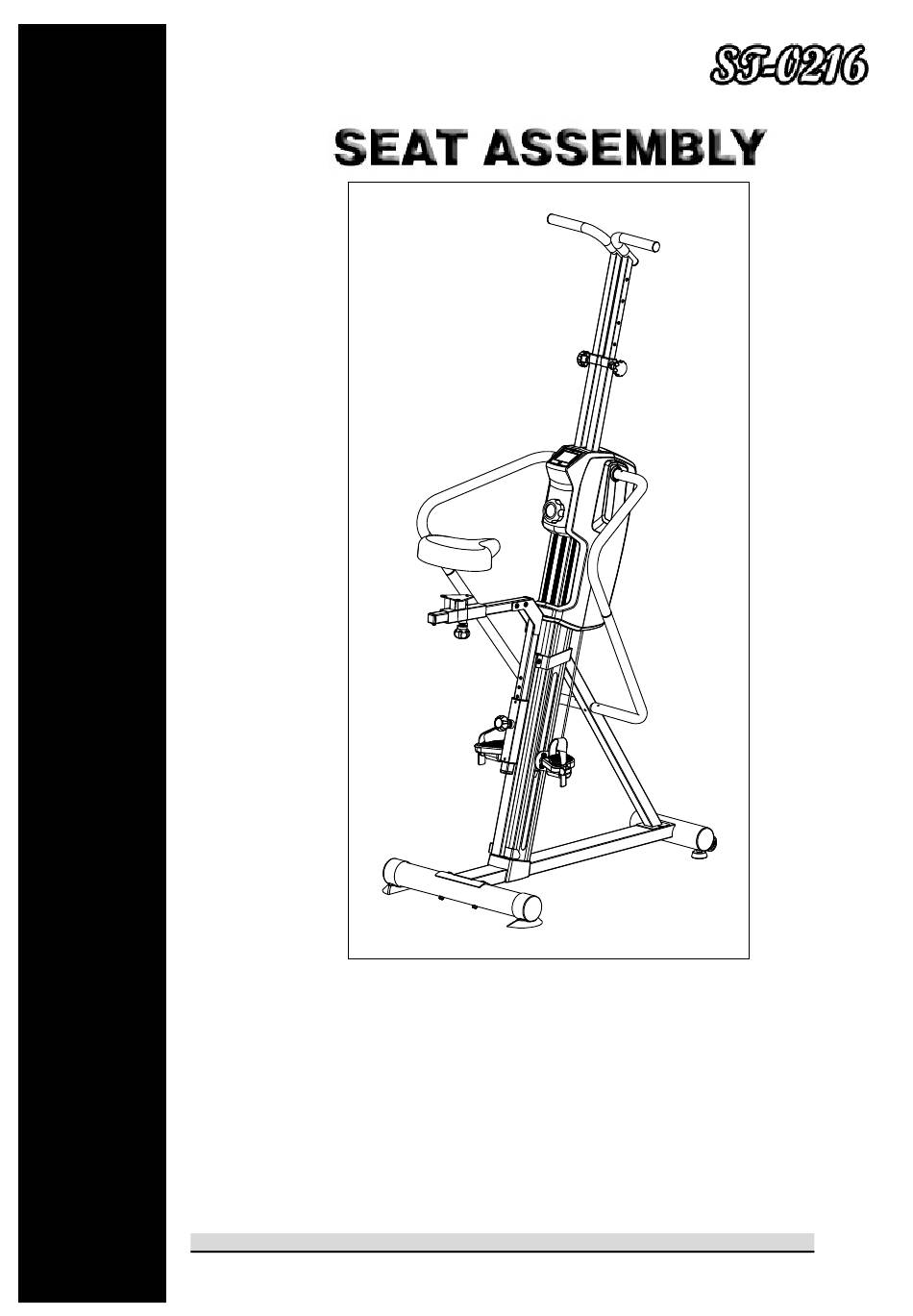

- Page 2 “A SSEMBLE NSTRUCTIONS” – TEP 1 Support Bracket Assembly a. Remove 2pcs Bolts (98) at the front aluminum rail. b. NOTE: 2pcs Screws, Flat Head (M8x20mm)(a) have pre-attached to the Seat Tube (b). c.Remove the above screws from the Seat Tube (b).
- Page 3 d. Follow FIG.1, slightly loosen 2 pcs Bolts (97) a little on the back of Main Frame, so the Support Bracket (103) can slide between two bolts (97) and Main Frame. NOTE: Do not tighten at this moment. e. Attach the Seat Tube (b) and fully tighten with 2pcs Screws (a) and 2pcs Bolts (98).
- Page 4 j.Unfold the Seat Linkage (c) and fully tighten with 2pcs Screws (a). k.Slide the Seat Linkage (c) to the Seat Tube (b). l.Find the proper position on the seat height and seat position and fully tighten with 2pcs Adjustment Knob (d). m.NOTE: 2pcs Lock Washers (M8)(f) &...
