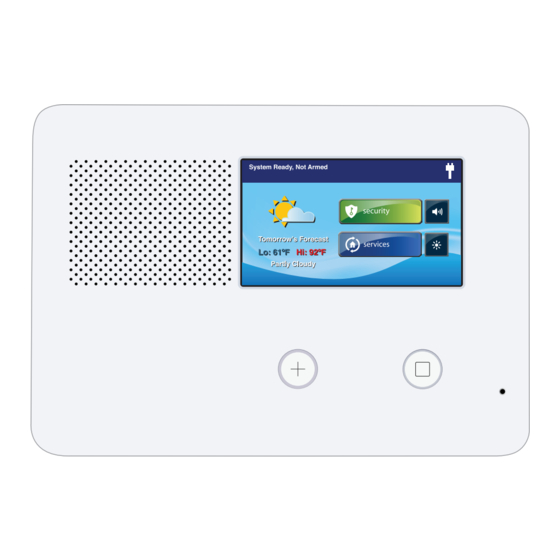

GC2e Panel
Installation and Programming Guide
WIRELESS SECURITY SYSTEM
WARNING: OWNER'S INSTRUCTION NOTICE. Not
to be removed by anyone except occupant.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2GIG eSeries GC2e and is the answer not in the manual?

Questions and answers

Related Manuals for Nortek 2GIG eSeries GC2e

Summary of Contents for Nortek 2GIG eSeries GC2e

  • Page 1 GC2e Panel Installation and Programming Guide WIRELESS SECURITY SYSTEM WARNING: OWNER’S INSTRUCTION NOTICE. Not to be removed by anyone except occupant.

  • Page 3: Table Of Contents

    ANSI/SIA CP-01 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2GIG is a registered trademark of Nortek Security & Control LLC.
  • Page 4 Q47: Trouble Resound After Hold Off (0-7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 2GIG is a registered trademark of Nortek Security & Control LLC.
  • Page 5 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 2GIG is a registered trademark of Nortek Security & Control LLC.

  • Page 6: Introduction

    Failure to follow ETL requirements voids this system’s ETL Listed mark . Failure to install the Control Panel and accessories in accordance with the ETL requirements documented in this manual voids its ETL Listed Mark. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 7: Installing The System In Commercial Settings

    (iPhone, Android, etc,) . • * Feature requires the optional LTE (Cellular) Radio module and an active account with an Remote Service Provider. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 8: Optional Accessories

    The Image Sensor 3 can be used with the GC2e by replacing the XCVR2a with a 2GIG-XCVR5e-345, which is compatible with Image Sensor 3, eSeries sensors and legacy security sensors. (2GIG-XCVR5e-345 is not compatible with TS1 keypads .) 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 9: System Configuration

    Provider (RSP) Piezo Server Siren Input Power Infrastructure Remote Remote Sirens Door Locks Lighting Controls Thermostat Services Provider Website Database 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 10: Control Panel Features

    Flashes BLUE when all sensors are closed (ready to arm) Flashes ORANGE when any sensor is open (not ready to arm) Flashes RED while system is armed 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 11: Internal Features

    Wireless Touch Screen Keypad). Third-Hand Hanger Strap Hooks onto mounting plate during installation to hold the Control Panel while wiring. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 12: Installation Outline

    “Installer Testing” on page 61 . Educate the end user(s) about basic system operations and provide them with the Control Panel’s User Guide. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 13: Wireless Installation Tips

    3 ft. Large Wall above metal slab appliance Min. Concrete Concrete (refrig.) slab slab Feet SENSOR SENSOR CORRECT CORRECT INCORRECT 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 14: Sensors And Accessories

    • Standard Battery Pack (UL 1023) • Extended Battery Pack (UL 985) • Replacement Power Supply • Go!Bridge™ IP Communicator • Hardwire Conversion Kit 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 15: Installation

    Use mounting plate as a template to mark wire cutout hole in dry wall (four screws). Hanger Mount Hole 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 16: Wireless Sensors

    820Ω resistor in parallel with the sounder. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 17: Lte (Cellular) Radio Module

    The antenna drops into the wall or mounts in the attic with the cable passing through the slot in the Control Panel’s mounting plate. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 18: Control Panel Wiring Diagram

    4 – Bell (+) ALL output CONTROL PANEL 5 – Bell (–) voltages are Class 2 6 – Hardwire Zone 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 19: Control Panel Wiring

    53 . 14 VDC Power Input (+) 14 VDC Power Input (-) Common Ground (GND) Bell (+) Bell (-) Hardwired Zone 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 20: Control Panel And Power Supply Mounting

    NOTE: In the United States (and other countries where it is required), use the power supply retaining bracket. In Canada, the power supply retaining bracket is not required. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 21: Commercial Installations

    Contact Locks Glass Break Detector Control Panel Camera Glass Break Detector Glass Break Glass Break Glass Break Detector Detector Detector 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 22: Nfpa Standard 72

    IMPORTANT: Regulation pertaining to smoke alarm installations vary. For more information, contact your local re department or local authority having jurisdiction. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 23: Main Display Screens

    Voice Select this check box to enable voice announcements for the system . Voice announcements always sound during alarm conditions. Under the appropriate conditions, additional buttons include: 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 24: System Status Screen

    One option button for Silence is displayed; it temporarily stops the announcement of the system status during the status display . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 25: Toolbox And Installer Toolbox

    Access the Installer Toolbox . See Accessing the Installer Toolbox above . At the Installer Toolbox screen, tap the System Configuration button. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 26: System Configuration Screens

    . Installers can access the System Configuration screens as described in Accessing the System Configuration for System and Sensor Programming . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 27: System Status Icons

    Test Mode Figure 34 Test Mode This icon displays when the system is in Walk Test mode . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 28: Programming Navigation

    They navigate as follows. Questions with sub-options display a Skip button during the question. The Skip button advances to the next programming question/section. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 29: Additional Buttons

    • Tap Paste to repeat the last sensor serial number entered . • Tap Exit to exiting the programming module. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 30: Programming Outline

    If the LTE (Cellular) Radio Module is installed,the date and time sets automatically. Press the button to return to the Home screen. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 31: Programming Question Table

    (1) Audible Select Quick Arming (0 to 1) (1) Enabled Select Swinger Shutdown Count (1 to 6) (2) Two Trips‡ 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 32 (1) Enabled Select Force Bypass Reports (0 to 1) (0) Disabled Select Event Log (0 to 3) (3) All Events 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 33 ** To comply with UL 1610: Central-Station Burglar-Alarm Units, Q96and Q97 must beset to (1) enabled. UL 1610 compliance also requires that Q91: Select Radio Modem Supplier be set to (1) Radio Modem Supplier 1. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 34: Zone Numbering

    Wireless Zones 47-48 Wireless Cross-Sensor Zone 49-50 Wired Zones 51-58 Keyfobs 59-62 Keypads 63-74 Wireless Zones Duress Fire Medical Police Panic 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 35: Sensor Types (Zones)

    SIGNAL FROM THE INDICATED CIRCUITS. THE TOTAL DELAY (CONTROL UNIT PLUS SMOKE DETECTORS) SHALL NOT EXCEED 60 SECONDS. NO OTHER SMOKE DETECTOR SHALL BE CONNECTED TO THESE CIRCUITS. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 36: Sensor Type (Zone)

    † Indicates Sensor types that are not allowed for hardwired loops . * Sensor Type Reporting is only supported on Alarm .com . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 37: Description

    EXTERIOR HOUSE CHECK EXTERNAL NOT READY CHEST FAILURE INSIDE NO DELAY CHILDREN’S FAMILY INSTANT NO ENTRY DELAY CHIME INTERIOR NURSERY 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 38 VIDEO SECURITY THIRTY PORCH SENSOR THREE CORNER SENSORS BELL SESSION TOOL BOY’S TRANSMITTED CAMERA SEVEN TRANSMITTER CAVE SEVENTEEN TROUBLE DAUGHTERS 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 39 2GIG Bypass Sensor 1065 2GIG Flood Sensor 1067 2GIG Repeater 1068 2GIG Translator 1069 2GIG FireFighter SMKT/CO Listener 9999 Alarm.com Image Sensor 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 40: 2Gig Eseries Equipment Codes

    See “Q: Select chime options for the sensor. RF Sensor # Equipment Type” on page 40 . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 41: Q1: Rf Sensor Programming Outline

    **Tap Insert for each word . To select from the list, you can use (07) 24-Hour Audible Alarm* the keypad or tap the ← or → arrows. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 42 (0) Disabled, and this sub-question is skipped for these sensor for the sensor being programmed . Tap Shift to access types . alphabetic characters. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 43: Wired Sensor Programming

    • Q: Wired Sensor # Reports . Specify whether or not to send digital communicator reports for the sensor . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 44: Q2: Wired Sensor Programming Outline

    To exit programming, tap Skip then End and Exit . Upon exit, the panel takes several seconds to restart (02) Exit/Entry 2 (03) Perimeter 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 45 (next page): • If this wired sensor is already installed, select (1) Existing . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 46: Wireless (Rf) Key Fob Programming

    Reports as Sensor# • Q: Select Fob # Key # Output. Select an action for the key fob auxiliary button. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 47: Key Fob Programming Outline

    Upon exit, the panel takes several seconds to restart . TIP: “RF Keypad Tap Skip to jump to question Q4. See Programming Questions” on page 47 . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 48: Wireless (Rf) Keypad Programming

    Tap Insert again for the next word. Up to five words are allowed . To remove a word, tap Delete . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 49: Rf Keypad Programming Outline

    • The Control Panel displays “RF Keypad (#1-4)” to identify the exit, the Control Panel takes several seconds to restart . keypad . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 50 Tap Insert again for the next word. Up to five words are allowed. To remove a word, tap Delete . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 51: Control Panel Programming

    The default setting of 45 sets the timer to 45 seconds. • To change the timer setting, enter a value between 30‐240 seconds . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 52: Q16: Police Emergency Key (0-2)

    The default setting (2) Two‐Trips sets the swinger shutdown count at two (2) trips . • To change this count, select (1-6). 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 53: Q25: Radio Modem Network Failure Reports (0-1)

    To change the number of days, enter a value between one (1) to 255 days . • To disable this feature, select (0) Disabled . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 54: Q35: Abort Window Dialer Delay (0-2)

    When AC power is lost, they system displays a power loss alert after the specified time length. When power is restored, the alert is automatically cleared after one (1) minute. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 55: Q45: Lock Default Programming (0-2)

    To turn off Control Panel low battery reports, select (0) Disabled . • To delay re-sounding trouble beeps for CO and Fire sensors, select (1-7) days 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 56: Q54: Rf Low Battery Reports To Cs (0-1)

    To allow bypass restore reports, select enabled (1) Enabled . OFF . • To turn on RF jam detection, select (1) Enabled . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 57: Q66: Daylight Saving (0-1)

    . • To have manually bypassed sensors remain bypassed when the system is disarmed, select (0) Disabled . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 58: Q76: Force Bypass Reports (0-1)

    The default setting (1) Enabled shows the Thermostats button. • audio session . • To hide the Thermostats button, select (0) Disabled . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 59: Q87: Keyfob/Remote Arming Mode On System Not Ready (0-2)

    (5) Radio Modem Supplier 5 SecureNet • (6) Port 6 (6) Radio Modem Supplier 6 • (7) Port 7 • (8) Port 8 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 60: Q93: Enter Broadband Network Failure Time (1-255)

    Conflicts can be resolved by defaulting the user codes or changing the existing pin codes so that no first four digits of the pin codes are the same . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 61: Final Installation Setup

    . Use the following steps only if you want to change the date and time. Figure 52 User Management Screen 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.
  • Page 62 At the Confirmation screen, tap OK. • To return to the Security screen, tap Back . • To return to the Home screen, press 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 63: Access The Installer Toolbox

    At the Installer Toolbox screen, tap Enable Sounder . At the Sounder Enabled screen, tap OK . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 64: Radio Status Test

    LTE (Cellular) Radio Module is registered . When the results are successful, tap OK to return to the Toolbox (3 of 3) screen . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 65: Restore Default System Configuration

    Release the buttons only after both the Emergency and Home buttons are lit and the Control Panel screen appears . 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 66: Regulatory Information

    CAUTION: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 67: Commercial Regulatory Listings

    IMPORTANT: A local alarm sounding device, alarm housing, and control unit shall comply with the mercantile requirements in UL 365: Police Station Connected Burglar Alarm Units and Systems. 2GIG is a registered trademark of Nortek Security & Control LLC. ©2020 Nortek Security & Control LLC. All rights reserved.

  • Page 68: Limited Warranty

    Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Nortek Security & Control LLC for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation, or reinstallation.
