Summary of Contents for M3 Mobile SM15 Series

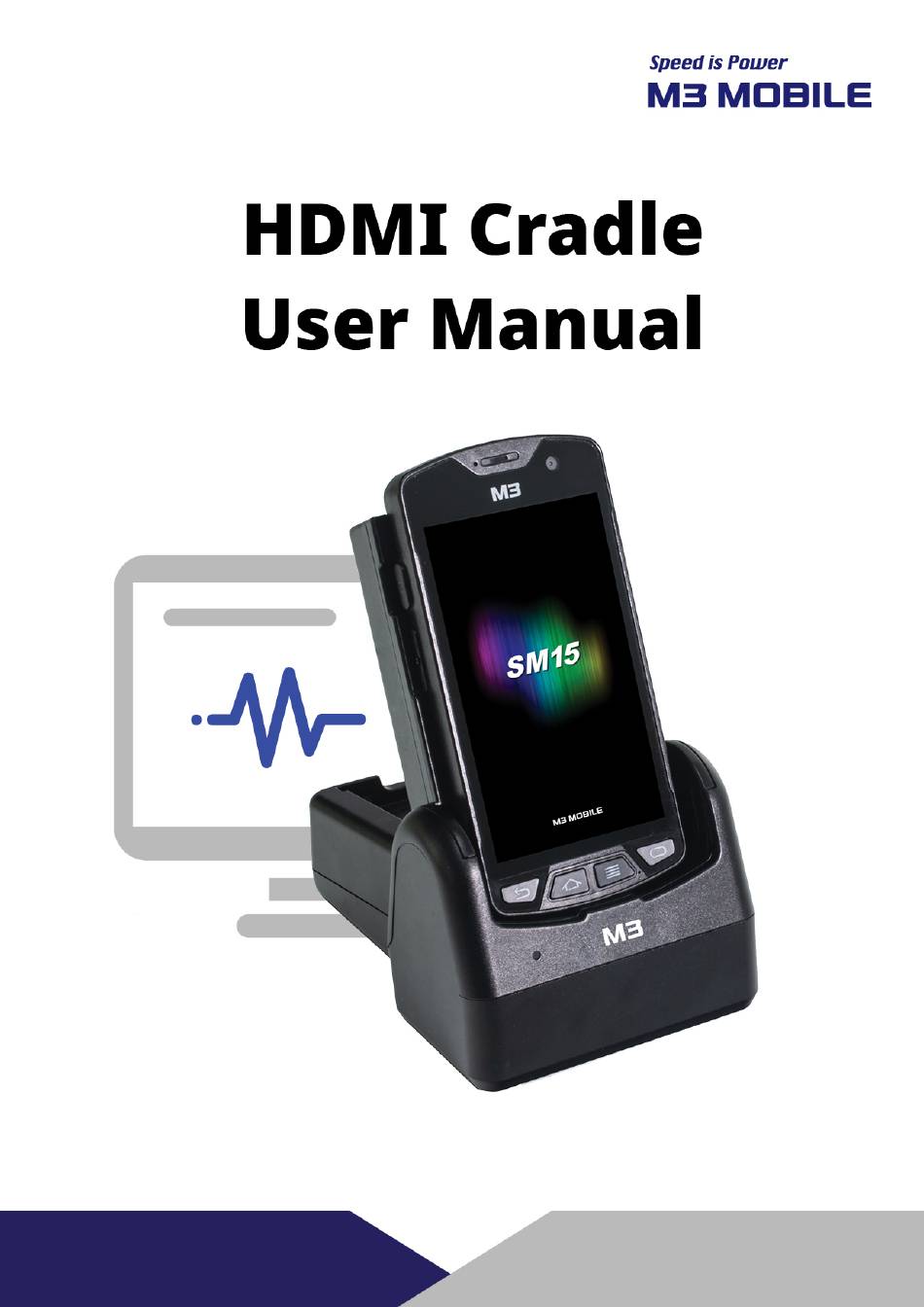

- Page 2 SM15 series HDMI Cradle User Manual Revision Release date of version 1.0: Apr. 2020 Initial distribution ⚫ Release date of version 1.1: June 2020 Update of StartUp setting ⚫ Copyright © 2000-2020 M3Mobile Co., Ltd. All rights reserved. M3Mobile Co., Ltd. is the designer and manufacturer of M3Mobile handheld...
-
Page 3: Table Of Contents
SM15 series HDMI Cradle User Manual Table of Contents Contents HDMI C ..........................4 RADLE PECIFICATION ..................................4 Ethernet Connection and USB Sync ....................4 HDMI Screen Mirroring Function – Touch Monitor ..............5 HDMI Screen Mirroring Function - General Monitor ..............9 Copyright ©... -
Page 4: Hdmi Cradle Pecification
USB Sync Ethernet Connection You can use Local Area Network Via Data connection SM15 series with Ethernet Cradle You can use the HDMI Cradle in various businesses. *Simple switch in the cradle (Plug 5V/5A) Select Switch 1. Client for USB 2. -
Page 5: Hdmi Screen Mirroring Function - Touch Monitor
SM15 series HDMI Cradle User Manual 2.2 HDMI Screen Mirroring Function – Touch Monitor Plug to the HDMI Display (Screen) → Mount the device to the cradle → Plug HDMI and USB cable to the HDMI Cradle Detailed instructions for use are as follows: 1) Connect power to the monitor. - Page 6 SM15 series HDMI Cradle User Manual 4-1) Set enable/disable in Soft navigationBar (default - disable) (a) Enter StartUp - Add – ETC (b) The Navigation bar setting can be checked at the bottom of the ETC screen. Copyright © 2000-2020 M3Mobile Co., Ltd. All rights reserved. M3Mobile Co., Ltd. is the designer and manufacturer of M3Mobile handheld...
- Page 7 SM15 series HDMI Cradle User Manual (c) After changing the settings, reboot the device. 4-2) When Soft navigationBar is enabled. (a) When the device boots, the navigation bar is automatically disabled. (b) When attaching the HDMI cradle, enable navigation bar.
- Page 8 SM15 series HDMI Cradle User Manual 5) The HDMIControl app ( ) enables the following settings *Note: After selecting the setting and pressing the save button, please make sure to reconnect the HDMI cradle and the device. *Display of screens based on Orientation settings Portrait Portrait –...
-
Page 9: Hdmi Screen Mirroring Function - General Monitor
SM15 series HDMI Cradle User Manual 2.3 HDMI Screen Mirroring Function - General Monitor Plug to the HDMI Display (Screen) → Mount the device to the cradle → Plug HDMI cable to the HDMI Cradle Note: All settings and usage guides are the same as how to use a touch monitor, but there is no USB host connection on a general monitor.
