Summary of Contents for M3 Mobile M3 ORANGE Pistol Grip

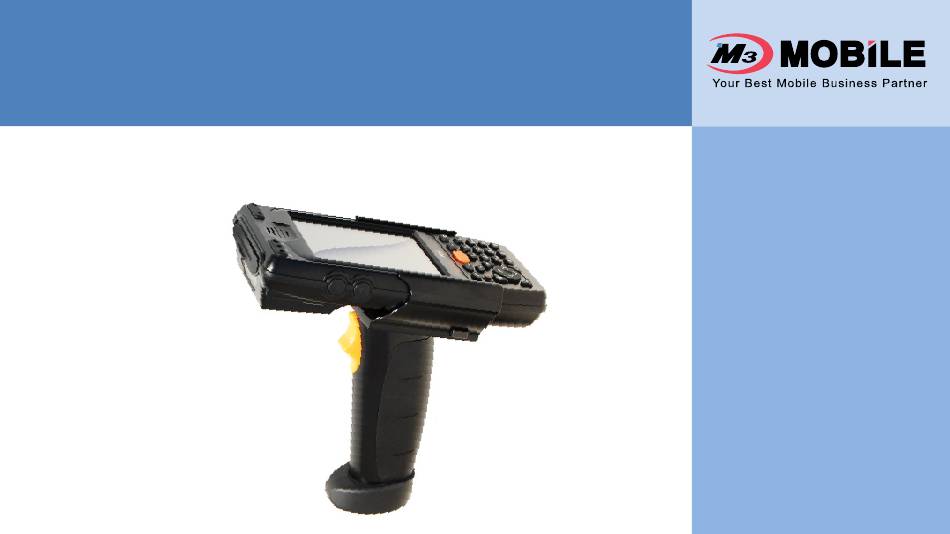

- Page 1 M3 ORANGE Pistol Grip User Guide Product Number: A-0PG-STD0-060-R00 Compatible Device(s): M3 ORANGE Version 2.1 Released in March 2013...
-
Page 2: Table Of Contents
Contents Copyright and Agreement ..... 3 Notice ………….………………………. 4 Warnings and Cautions for Safety Usage ……………….………………….. 8 ……………………………..….. 8 Description How to use ........9 Services and Support ....10... -
Page 3: Copyright And Agreement
Copyright and Agreement in Usage All contents of this user manual are protected by the Microsoft, Windows, MS Office, Outlook, ActiveSync, copyright laws, and M3 Mobile Co., Ltd. owns all rights Internet Explorer, Windows Logo, and Windows CE, related to them. -
Page 4: Notice
Notice – General Notices The contents of this user manual were made based on the M3 Mobile does not guarantee the quality of the programs “current state” of the product, and this manual may produced by third party software companies installed after contain technical and editing errors or omissions the release from the factory of M3 mobile. - Page 5 Notice – Revision History Version 2.1 – March, 2013 Change address and M3 Mobile technical support webpage Version 2.0 – Mar , 2011 First release of separate user manual for Pistol grip. Version 1.0 – May, 2010 First release of printed version.
-
Page 6: Warnings And Cautions For Safety
If the device is lost or stolen, then immediately report the incident to the service provider. Refrain from using the device while driving. When service for the product is required, request services through the designated service center of M3 Mobile. - Page 7 Warnings and Cautions for Safety – Cntd. Cautions in Carrying and Storing Do not modify the product Do not use the product in high temperature or high Do not try to modify the product by any means. humidity environments as this may quickly cause damage to the product.
-
Page 8: Usage
Usage – Description A-0PG-STD0-060-R00 is one of the M3 Mobile’s optional 1. Device Slot accessories for ease of scanning function. 2. Conductor Description Refer to next images (A-0PG-STD0-060-R00) for Pistol-Grip parts and descriptions. 5. Release Button 1. Device Slot – A PDA slides into the slot for barcode data scanning. -
Page 9: How To Use
Usage – how to use How to use Step 1. Make sure that the Scanner Program is running. Step 2. Slide in PDA to the Pistol Grip as shown in the left diagram. It clicks when a PDA is on the right position. Step 3. -
Page 10: Services And Support
Services and Support Should you require any services or technical support on M3 Mobile’s products, contact your supplier or visit M3 Mobile technical support webpage http://itc.m3mobile.net. Desired or relevant manuals can be downloaded from Knowledge Center or FAQ in technical support webpage.
