M3 Mobile M3 Sky Quick Manual

www.m3mobile.net
All information of user manual and programs in CD can be downloaded at www.m3mobile.net

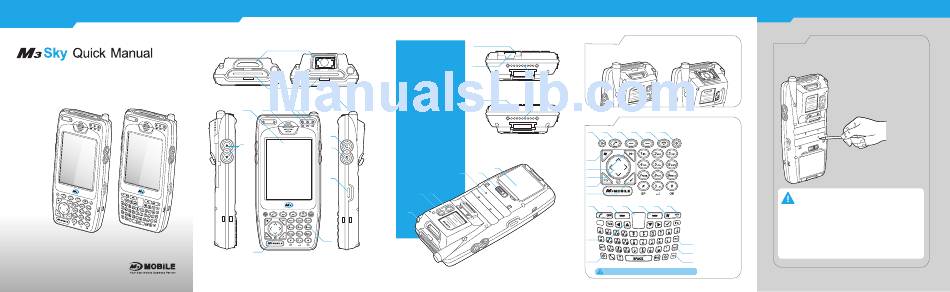

FEATURES
1D Laser Scanner 2D Imager
1
2
9
4 5 6 7 8
10
3
11
12
14
13
AlphaNumeric
1 Barcode Scanner Window
2 Memory Card Cover
3 Up/Down Button
4 Touch Screen
15
(with screen protector)
5 Speaker
6 Charging Status LED
7 Radio Status LED
8 Scan LED
16
9 Antenna
QWERTY
10 Camera Button
11 Scanner Button
12 Infrared Communication Port
(IrDA)
13 Microphone
14 Keypad
15 24pin Connector
(Alpha-numeric 24-pin connector)
16 I/O Connector
17 Stylus Pen
18 Camera Flash
19 Camera
20 Reset Switch 22
20 21
21 Battery Lock
22 Battery
18 19
17
RFID Design
HF RFID (13.56MHz)
1D + RFID
2D + RFID
Input Key
1 Alphanumeric
1 2 3 4 5 6
2 Talk
3 Left Soft Key
4 Right Soft Key
5 End
6 Power
7
7 Start
8
8 Backspace
9 Navigation
9
10 Function
10
11 Action
11
1 2 3 4 5 6 1 Talk
2 Left Soft Key
3 Scan Button
4 Right Soft Key
5 Start
6 End
7 7 Navigation
9
8 Power
9 Backspace
10
10 Enter
8 11
11 Microphone
Some Key functions might not be supported, depending on the option.
RESET
Soft Reset
Soft reset makes your device to get a
fresh start, similar to rebooting a computer.
1. In case that back-up battery is discharged completely, the device can
not be booted by power button and soft-reset. Users are supposed to
press the reset button for more than 5 seconds.
2. When the abnormal working (1.white screen 2. lock-up 3. etc) suddenly
happen on the LCD display and the device can not be turned on by
pressing power button. Please do soft reset.(Press the reset button with
stylus pen.)
3. The device in sleep mode will be waken up when the device is put on
cradle.
