SCO R P IO
The following instructions describe attaching the SL-2 to the Scorpio.
For this assembly you will need:
•
Scorpio Mixer-Recorder (not included)
•
SL-2
•
2x Rear Keyhole Pegs
•
6x Screw 6 mm STEEL M3 low-profile
•
Scorpio Front Bracket
•
SL-2 Rear Bracket
•
2 mm Allen Wrench Hex 2-1/16"L
•
#4 Phillips Screwdriver (not included)

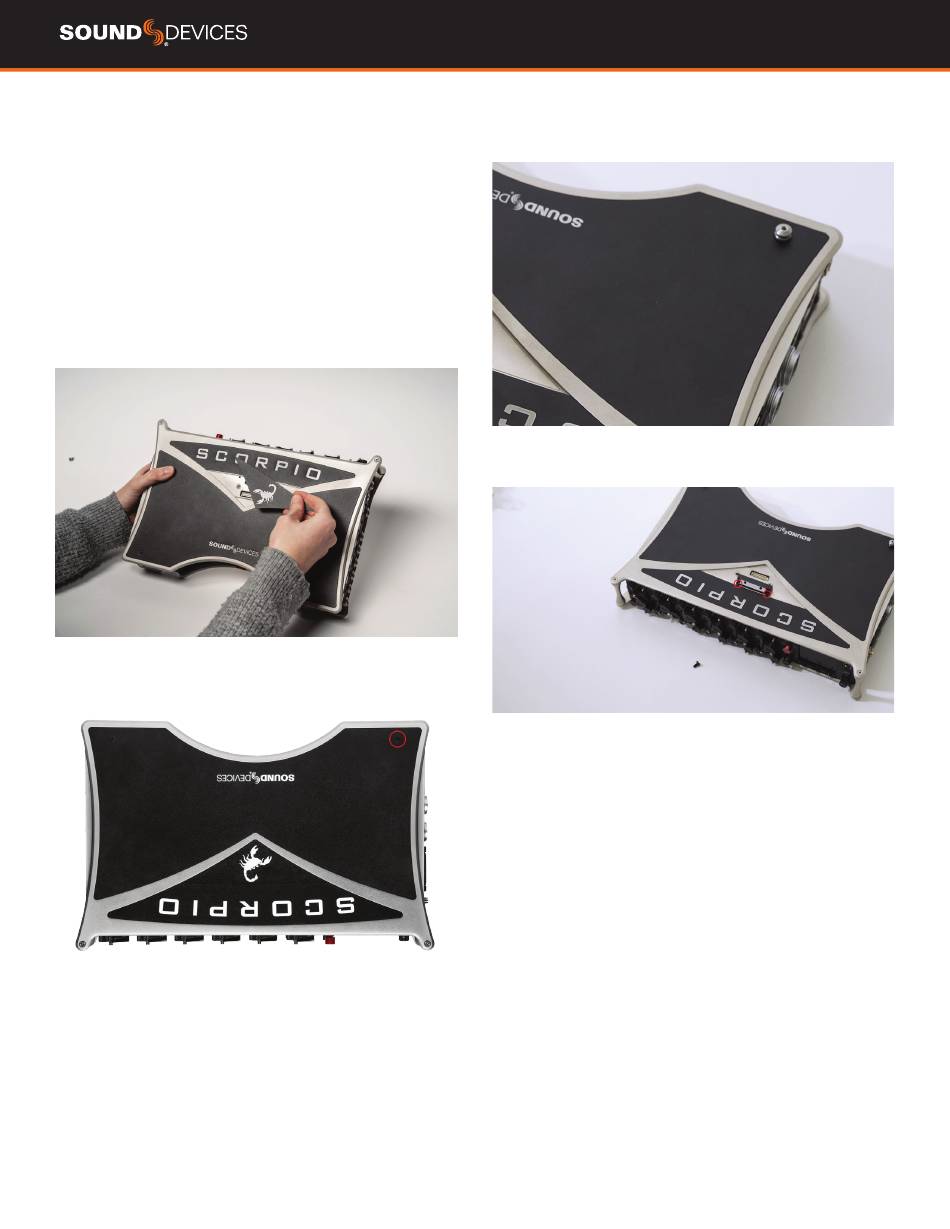

STEP 1 Remove the magnetic expansion port cover on the top of the
Scorpio by prying up gently to break the magnetic connection. Attach
the connector cover to the bottom of the Scorpio for safekeeping.
STEP 2 Using a #4 Phillips Screwdriver, remove the black
phillips screw from the Scorpio top panel as shown in the
image below. Keep these screws in a safe place as they need
to be re-installed if the SL-2 is removed from the Scorpio.
SL-2 User Guide
STEP 3 Using the provided 2 mm Allen Wrench,
screw in two Rear Keyhole Pegs into the threads
where you removed the screws in Step 2.
STEP 4 Position the Scorpio Front Bracket on the top panel of the
Scorpio as shown in the image below. Secure the Scorpio Front
Bracket with two 6 mm screws using the supplied 2 mm Allen Wrench.
