Summary of Contents for Sound Devices SL-2
- Page 1 SL-2 DUAL SUPERSLOT WIRELESS MODULE FOR 8-SERIES MIXER-RECORDERS USER GUIDE...
- Page 2 U.S. and other countries. All other trademarks herein are the property of their respective owners. WEEE Statement If you wish to discard a Sound Devices product in Europe, contact SL-2 User Guide | Rev 7/2020 Sound Devices UK Service Center: +44 (0)1494 511711 for further This document is distributed by Sound Devices, LLC in online electronic (PDF) information.

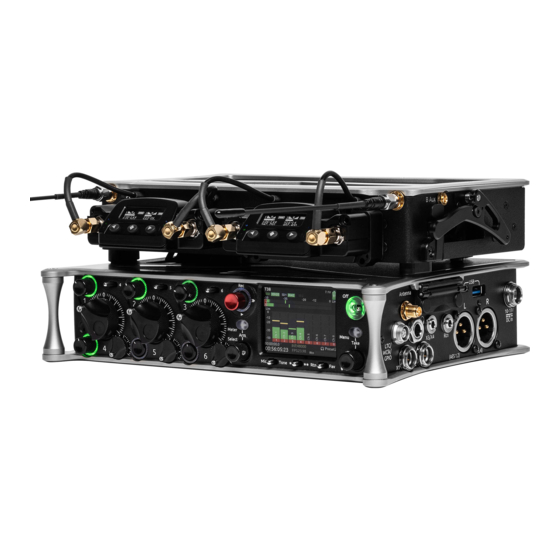

- Page 3 Lectrosonics, Wisycom, and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot. An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers - no external DC connector needed. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity.
-
Page 4: Table Of Contents
Table of Contents PANEL VIEWS ATTACHING THE SL-2 833 & 888 SCORPIO INSERTING RECEIVERS IN THE SL-2 REMOVING RECEIVERS FROM THE SL-2 SPECIFICATIONS DECLARATION SL-2 User Guide... -
Page 5: Panel Views
Connects via DB-25 connector. SL-2 automatically locks the receiver DC OUTPUTS 1 & 2 Each Hirose 4-pin male connector provides 6-18 in place. No screws are necessary to secure the receiver in the SL-2 slots. Cover empty slots with the included Rubber Slot Protector when V DC at 500 mA [pin-4=+, pin-1=-]. -
Page 6: Attaching The
Align the SL-2’s bottom panel hooks with the Rear Keyhole Pegs on the 833/888. The SL-2 should be tilted with the front panel slightly higher than the rear. Take care not to bump the SL-2 expansion connector against the 833/888 top panel. Once the SL-2’s Bottom Panel hooks and Rear Keyhole Peg’s machined... - Page 7 STEP 5 Make sure that the SL-2 Expansion Connector mates with the 833/888 Expansion Port. Then gently press down on the SL-2 to fully seat the pins of the connector. STEP 6 Using the supplied 2 mm Allen Wrench, secure the SL-2 to the 833/888 top panel with the two captive screws as shown in the image below.
-
Page 8: Scorpio
STEP 2 Using a #4 Phillips Screwdriver, remove the black phillips screw from the Scorpio top panel as shown in the image below. Keep these screws in a safe place as they need to be re-installed if the SL-2 is removed from the Scorpio. SL-2 User Guide... - Page 9 STEP 5 Position the SL-2 Rear Bracket on the rear panel of the STEP 8 Secure the SL-2 to the Scorpio Front Bracket with SL-2 as shown in the image below. Secure the SL-2 Rear Bracket two 6 mm screws using the supplied 2 mm Allen Wrench.
-
Page 10: Inserting Receivers In The
Inserting Receivers in the SL-2 It is important to turn off power to the SL-2 slot prior to removing and inserting receivers to avoid potential hardware damage. Slot power can be turned off in the Menu>System>Expansion Port menu, Menu>SuperSlot>Options>Slot Power, or by turning the 8-Series Mixer-Recorder Off. -
Page 11: Specifications
Specifications Specifications are subject to change without prior notice. For the latest information available on all Sound Devices products, visit our website: www.sounddevices.com. POWERING All power supplied by host 8-Series machine ANTENNA IMPEDANCE 50 ohms ANTENNA POWERING 12 V at 200 mA, menu selectable on/off Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc. -
Page 12: Declaration
