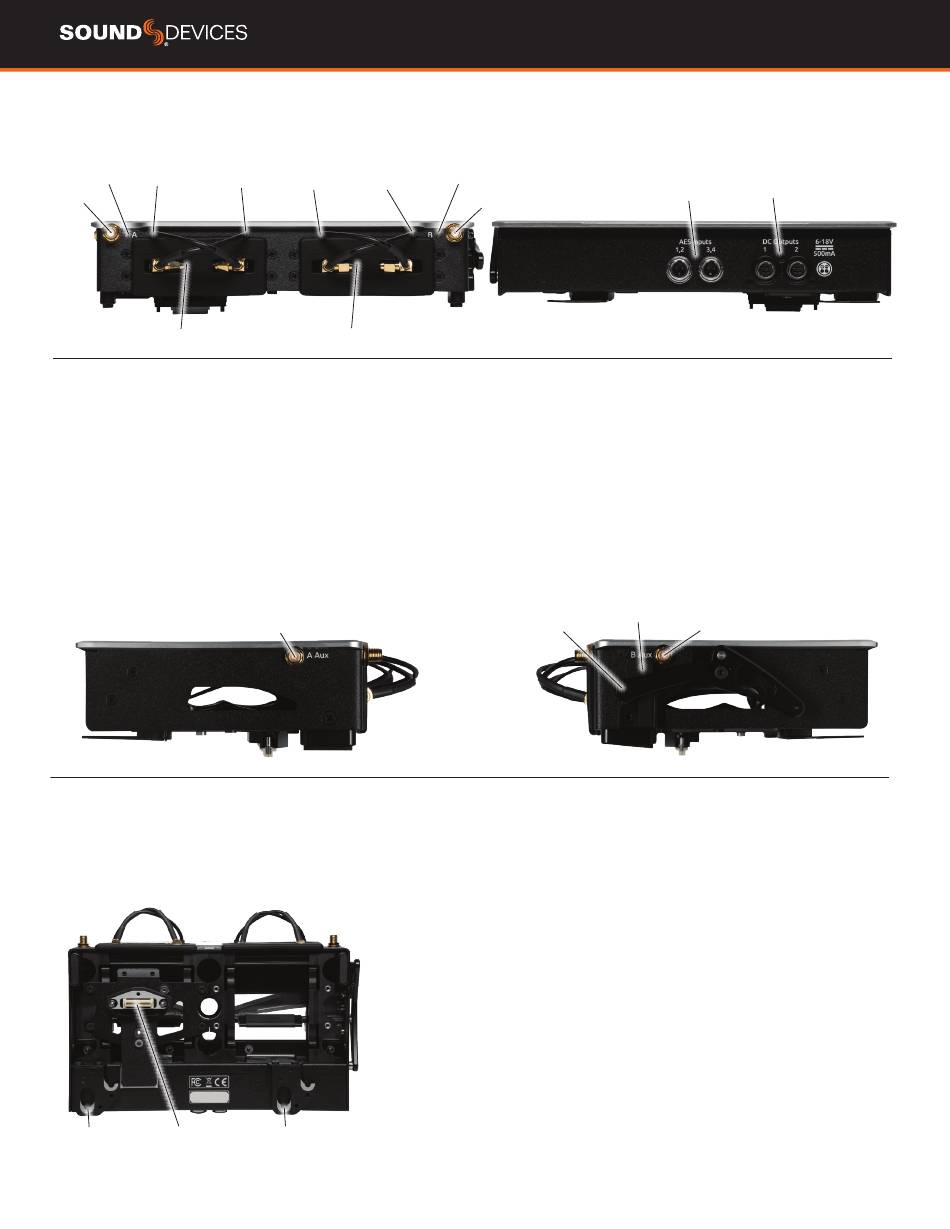

Panel Views

FRON T
Antenna A
RF Overload LED
Slot A Antenna
A Lead
Antenna A SMA
Rx Slot A
ANTENNA A & B SMA CONNECTORS Connects antenna to the
SL-2. Both SMA antenna connectors can provide 12 V bias power up
to 500 mA via a menu option. RF frequency range covers 470 - 1260
MHz. RF Filtering is available in the menus.
RX SLOT A & B Accepts Slot-in Unislot or SuperSlot receivers.
Connects via DB-25 connector. SL-2 automatically locks the receiver
in place. No screws are necessary to secure the receiver in the SL-2
slots. Cover empty slots with the included Rubber Slot Protector when
not in use.
SLOT A & B ANTENNA A LEAD Distributes Antenna A to the left
SMA connector of your receiver.
SLOT A & B ANTENNA B LEAD Distributes Antenna B to the right
SMA connector of your receiver.
LEFT
MCX Connector
A & B AUX ANTENNA MCX CONNECTORS Distributes Antenna A
and B to external receivers.
BO TT OM
Mounting Hook 8-Series Expansion
Connector
SL-2 User Guide
Slot A Antenna Slot B Antenna
Slot B Antenna
B Lead A Lead B Lead
Rx Slot B
A Aux Antenna
Mounting Hook
Antenna B
RF Overload LED
Antenna B SMA
AES INPUTS 1 - 4 Accepts up to four AES3 signals via the TA3-M
input connectors. Each connector accepts two channels of AES3.
Incoming signal can be routed to 8-Series Mixer-Recorder channels via
the menus. Input type: AES3, balanced, TA3F connectors, Impedance:
110 ohms, Sensitivity: 200 mV or higher accepted
Wiring: pin 1 = ground; pin 2 = +; pin 3 = –.
DC OUTPUTS 1 & 2 Each Hirose 4-pin male connector provides 6-18
V DC at 500 mA [pin-4=+, pin-1=-]. Useful for providing power to other
paripherals such as RF equipment. Power can be defeated in the
menus.
ANTENNA A & B RF OVERLOAD LEDS Each antenna input on the
front panel of the SL-2 has an associated LED that displays incoming
RF overload status. Red = Overload, Orange = approaching overload,
Off = no overload.
Safety Catch
Receiver Quick
Release Lever
RECEIVER QUICK RELEASE LEVER & SAFETY CATCH To eject
slotted in receivers, press in on the Safety Catch with one finger then
push the lever down. Continue holding the lever down, then pull the
receivers out of the slot with your other hand.
8-SERIES EXPANSION CONNECTOR Proprietary connector for
attaching the SL-2 to the 8-Series. Provides all power, data, and audio
signal needed for SL-2 and 8-Series functionality.
MOUNTING HOOKS These hooks are used to attach your 8-Series
Mixer-Recorder. See Attaching the SL-2 for more details.
AES Inputs 1-4 DC Outputs 1 & 2
TA3-Male Hirose 4-pin Male
B Aux Antenna
MCX Connector
RE AR
RI G HT
