REQUIRED SOFTWARE
The Time Sync module requires Aparian Slate software to setup and configure. The
software installation can be found at www.aparian.com/software/slate.
MODULE INSTALLATION

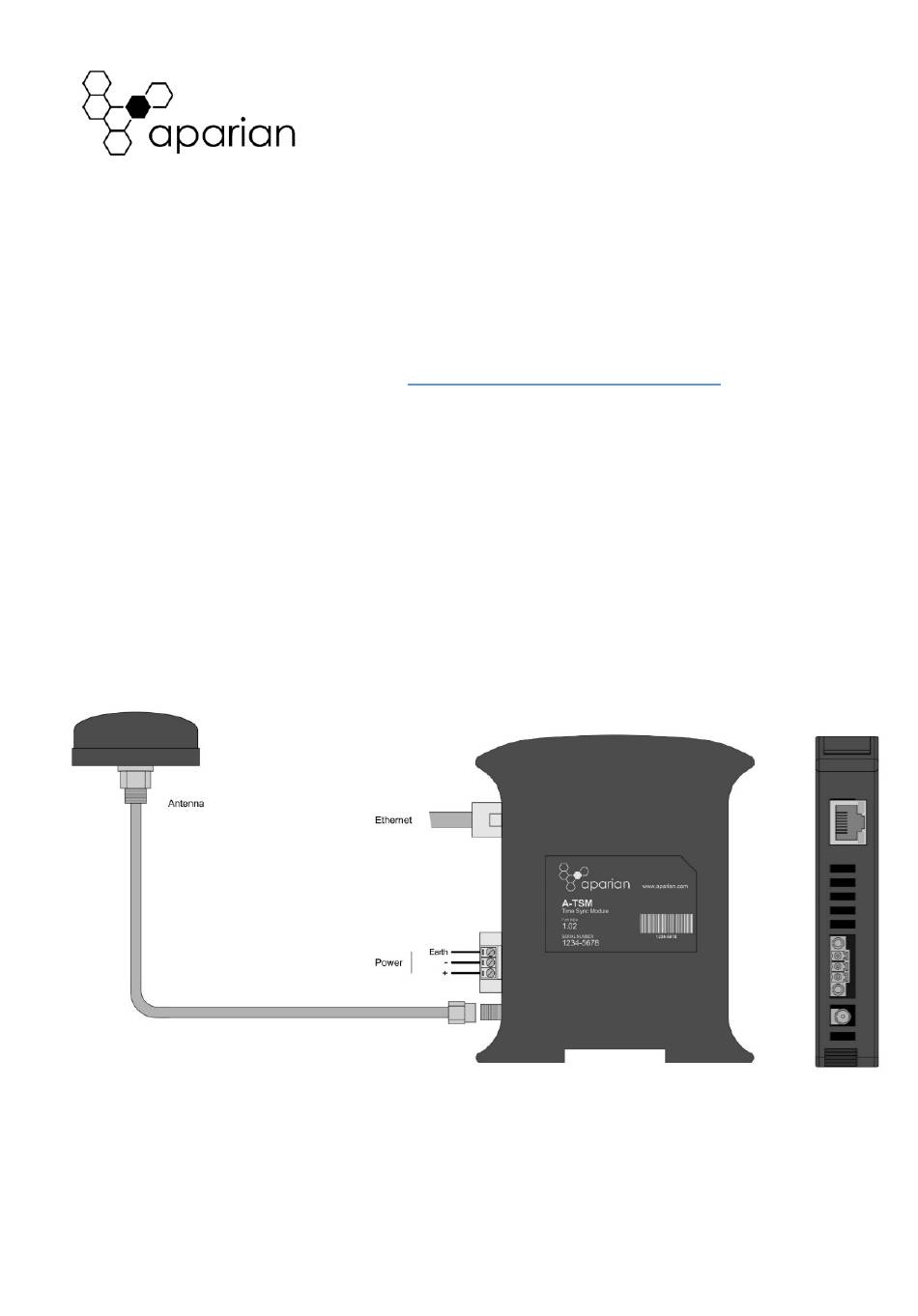

1. Mount GPS Antenna in a position with a clear view of the sky.
2. Place GPS antenna Attached GPS Antenna to SMA Connector.
3. Connect module to Ethernet Network by plugging cable into Ethernet port.
4. The Time Sync module requires input power of 10-28Vdc. The wiring of the power
connector can be found in the wiring diagram below. Power up the module.
NETWORK SETUP
1. Launch the Aparian Slate Configuration Software. Select the DHCP Server under
the Tools menu. DHCP is enabled as factory default.
2. Click the Assign button and set the IP Address. Row turns green if successful.
Document No. D107-008
Time Sync
Quick Start Guide
Page 1 of 2
Revision 1.0
04/2015
A-TSM
Advertisement
Table of Contents
Related Manuals for APARIAN Time Sync
Summary of Contents for APARIAN Time Sync
- Page 1 3. Connect module to Ethernet Network by plugging cable into Ethernet port. 4. The Time Sync module requires input power of 10-28Vdc. The wiring of the power connector can be found in the wiring diagram below. Power up the module.
- Page 2 Once the module has been assigned an Ethernet address the module will be ready to run as a PTP and NTP time server without any further configuration. Additional configuration can be achieved using the Aparian Slate utility. 1. In Slate start a new project under File, New.
