Revision 1.0
IP Point HART
05/2016
Quick Start Guide
A-IP.HART-I
A-IP.HART-O
REQUIRED SOFTWARE
The IP Point HART In/Out requires Aparian Slate software to setup and configure. The software
installation can be found at www.aparian.com/software/slate.
MODULE INSTALLATION
The IP Point HART In/Out requires input power of 12-28Vdc (the voltage requirements for the
field device must also be considered).

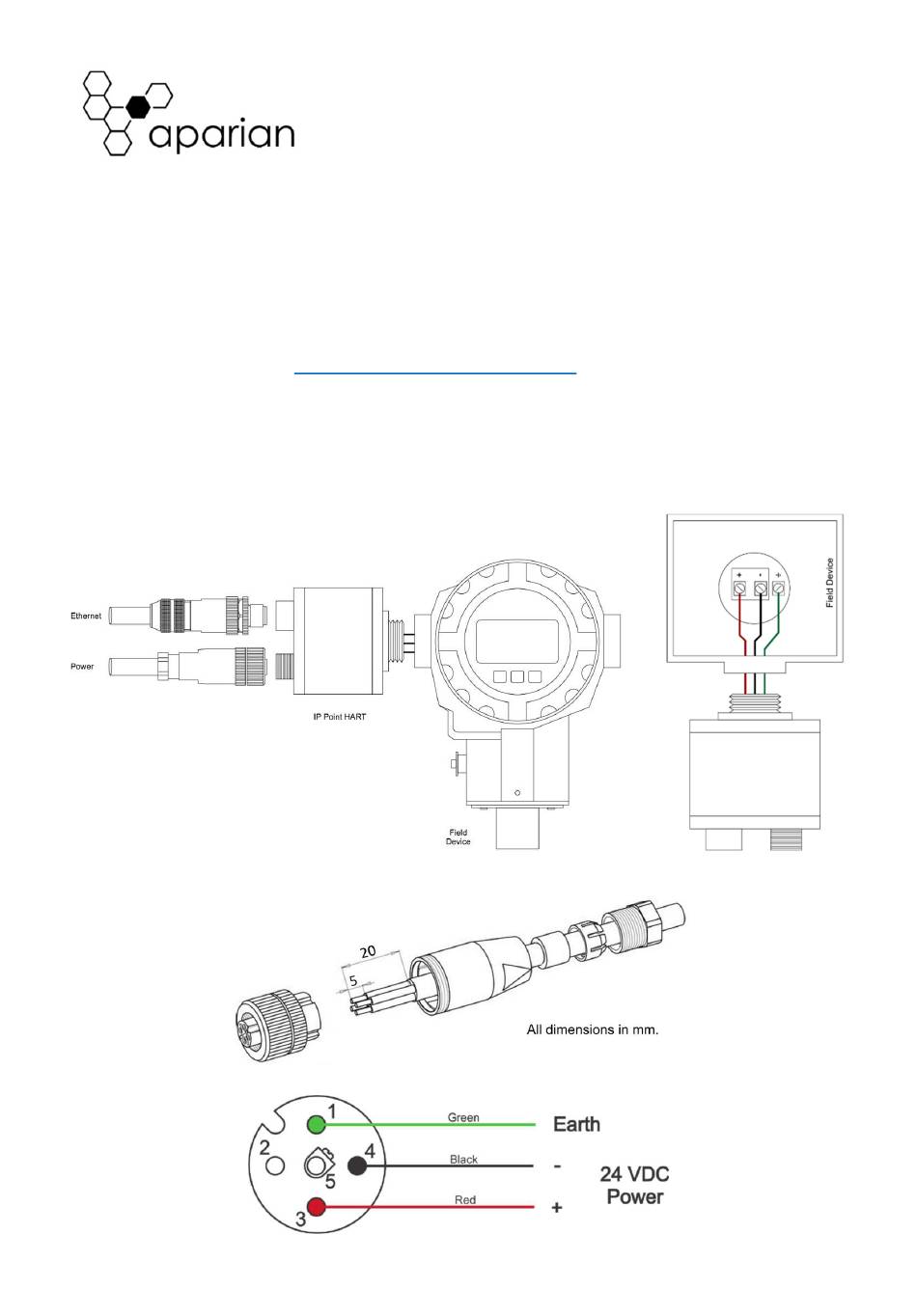

The wiring of the power connector can be found in the wiring diagram below.
Document No. D112-017
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for APARIAN IP Point HART
Summary of Contents for APARIAN IP Point HART
- Page 1 A-IP.HART-I A-IP.HART-O REQUIRED SOFTWARE The IP Point HART In/Out requires Aparian Slate software to setup and configure. The software installation can be found at www.aparian.com/software/slate. MODULE INSTALLATION The IP Point HART In/Out requires input power of 12-28Vdc (the voltage requirements for the field device must also be considered).
- Page 2 The wiring of the Ethernet connector can be found in the wiring diagram below. NETWORK SETUP The IP Point HART In/Out will have DHCP enabled as factory default. This the user must use a DHCP server to assign an Ethernet network address to the module. Refer to the additional information section for DHCP servers.
