DFRobot DFR0012 Manual

Nano i / o shield for arduino nano

www.domko.ru

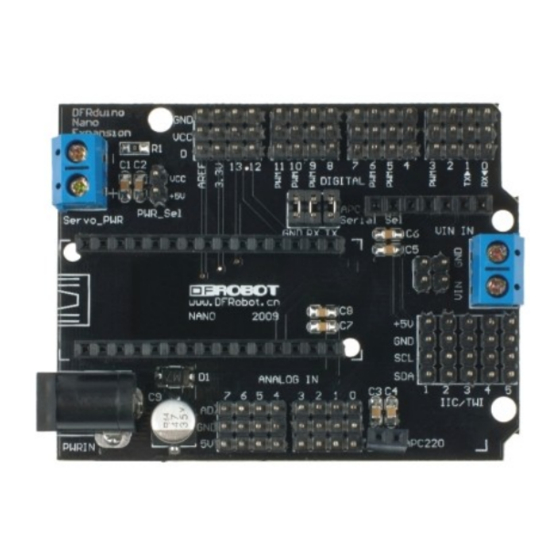

Introduction

The Arduino Nano I/O Shield acts as a breadkout board for the Arduino Nano and DFRduino Nano microcontrollers. There are

several different options for power input and the footprint of the DFRduino board is the same as the Arduino Duemilanove. In

addition, each pinout includes 5V and GND pins for easy connection to sensors or servos. Unit comes fully assembled. The board

also has a space specifically for the DFRobot bluetooth module.

NOTE:This shield only support Nano 2.0/2.3. There is small issue with latest v3.0 Nano on IO Shield.

•

Power supply: +5 V

•

Size: 69x54mm

Documents

Manual

•

Introduction

Arduino Nano IO Shield (SKU: DFR0012)

The Nano IO Shield extends the Digital I/O with Power and GND Pins. A communication module socket

provides an easy way to integrate

Bluetooth module (SKU:TEL0026)

device connection.

DFRobot

Nano I / O Shield For Arduino Nano

DFR0012

APC220 Radio Data Module(SKU:TEL0005)

which brings a wireless solution. A separate set of I2C pins make the I2C

www.electronshik.ru

Check out this link.

and

DF-BluetoothV3

Table of Contents

Do you have a question about the DFR0012 and is the answer not in the manual?

Page 1 DFRduino board is the same as the Arduino Duemilanove. In addition, each pinout includes 5V and GND pins for easy connection to sensors or servos. Unit comes fully assembled. The board also has a space specifically for the DFRobot bluetooth module. Check out this link.
Page 2 Diagram Arduino Nano IO Shield Sample Code Not available Compatible Table Diecimila Duemilanove Mega Nano Romeo IO Shield Motor Shield Ethernet Shield LCD&Keypad Shield Input Shield XBee Shield Nano IO Shield...
Page 3 Stackable Table Shield Name Stackable IO Shield Motor Shield Ethernet Shield LCD&Keypad Shield Input Shield XBee Shield Nano IO Shield Control Pin Table Shield Name Control Pin IO Shield None Motor Shield 6,7,8(5),9(4) Ethernet Shield 10,11,12,13 Digital Pin: 4,5,6,7,8,9,10 LCD&Keypad Shield Analog Pin: 0 Digital Pin:3,4,5 Input Shield...
