2.2 Detailed Settings of the Communication Setting Mode

2.2.1 Setting of the Communication Protocol
Settings
2.2.2 Data Length
Settings
2. 2. 1. This can be set only if the setting of the communication protocol is "2"
2.2.3 Parity Check
Settings
2.2.4 Stop Bit Length
Settings

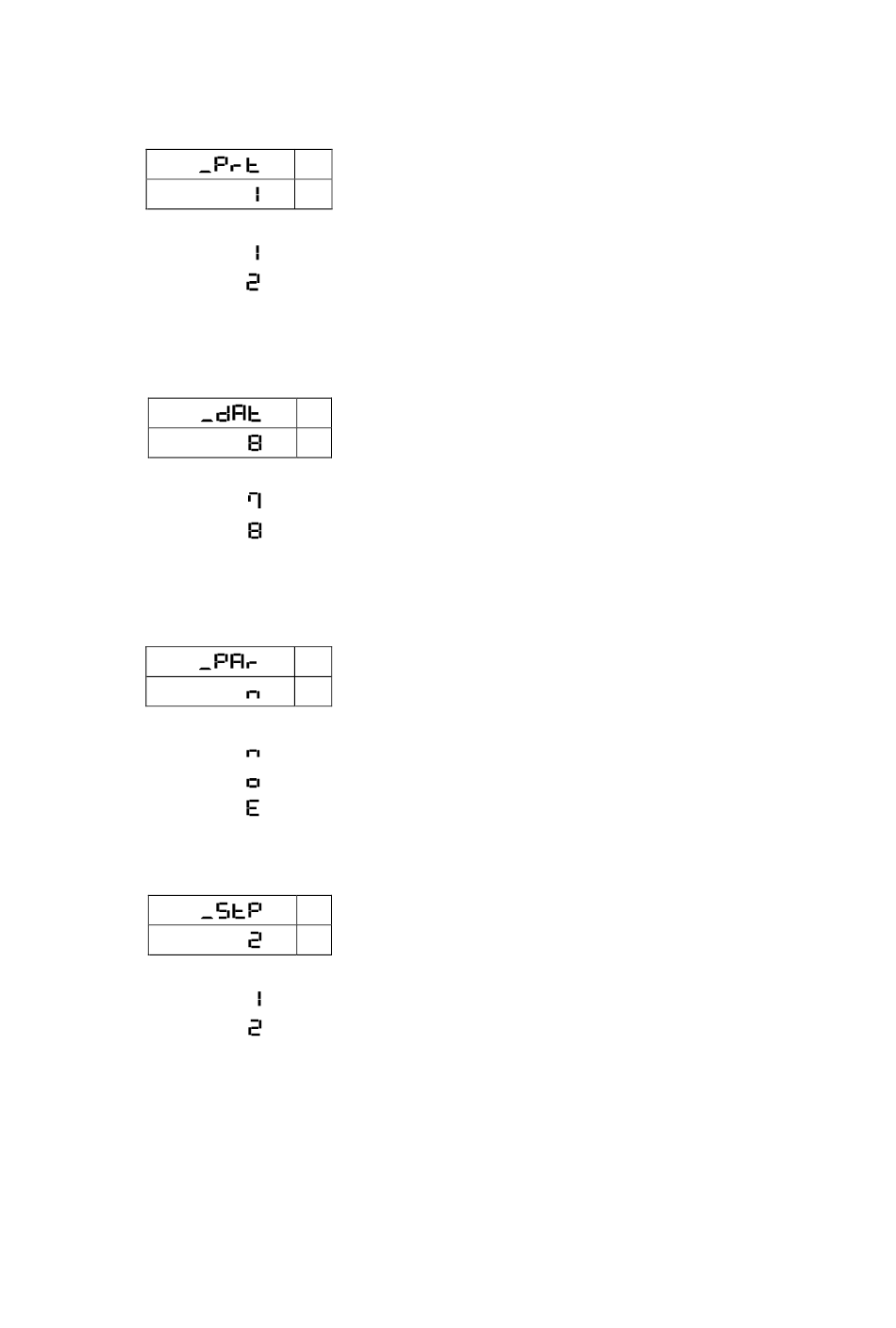

PV Please set the communication protocol.
SV Initial Value
: Modbus(RTU)
: Modbus(ASCII)
PV Please set the data length.
SV Initial Value
: 7 bits
: 8 bits
PV Please set the parity check.
SV Initial Value
: OFF
: Odd
: Even
PV Please set the stop bit length.
SV Initial Value
: 1 bit
: 2 bits
