Door prop alarm

Advertisement

FUNCTIONAL DESCRIPTION:

The ES411 provides a solution for the common security
problem of a Door "Held" or "Propped" open.
The unit is typically mounted near the monitored door.
When the door is held open beyond a user adjustable
time interval (0-60sec.), the local alarm sounds to
advise the door should be closed. Once closed, the
alarm silences and the timer is reset.
A Normally-Closed alarm relay output will open at the
end of the preset time interval and reset when the door
is closed.
The K1 option includes an LED that is illuminated when the unit is shunted, and a Key Switch to bypass the
unit and reset an alarm.

INSTALLATION:

Place a grounded electrical box at an
accessible spot on the wall near the
door to be monitored.
This unit should be protected from direct
exposure to moisture, sunlight or other
similar elements.
Connect the box, the cable shield (if
available), and the Green ESD ground
wire to building Ground.
Note: Using the Green wire and
"B" crimp, properly ground the
unit to the grounded box. This
will prevent damage from
electrostatic discharge that will
not be covered under warranty.
Connect Terminal Connections as follows:
#1& 2 to a 12 /24 Volt AC/DC 100mA power supply.
#3& 4 to the N/C monitored input dry contact.
#5& 6 to the N/C Alarm Status Relay output
Adjust Alarm Delay for desired access period (0-60 seconds)
NOTE: Clockwise=Longer Time (see Side View diagram for location of adjustment)
800 272 3555
Fax 512 321 9181
INS411 311002
DOOR PROP ALARM

SPECIFICATIONS:

Model:
Power:
Adjustment:
Input:
Mounting:
Output:
(in-line Diodes for 24 Volt operation only. Remove for 12V)
(none of these connections are polarity sensitive)
DESIGNED SECURITY INC
1402 Hawthorne Street
Bastrop, Texas 78602

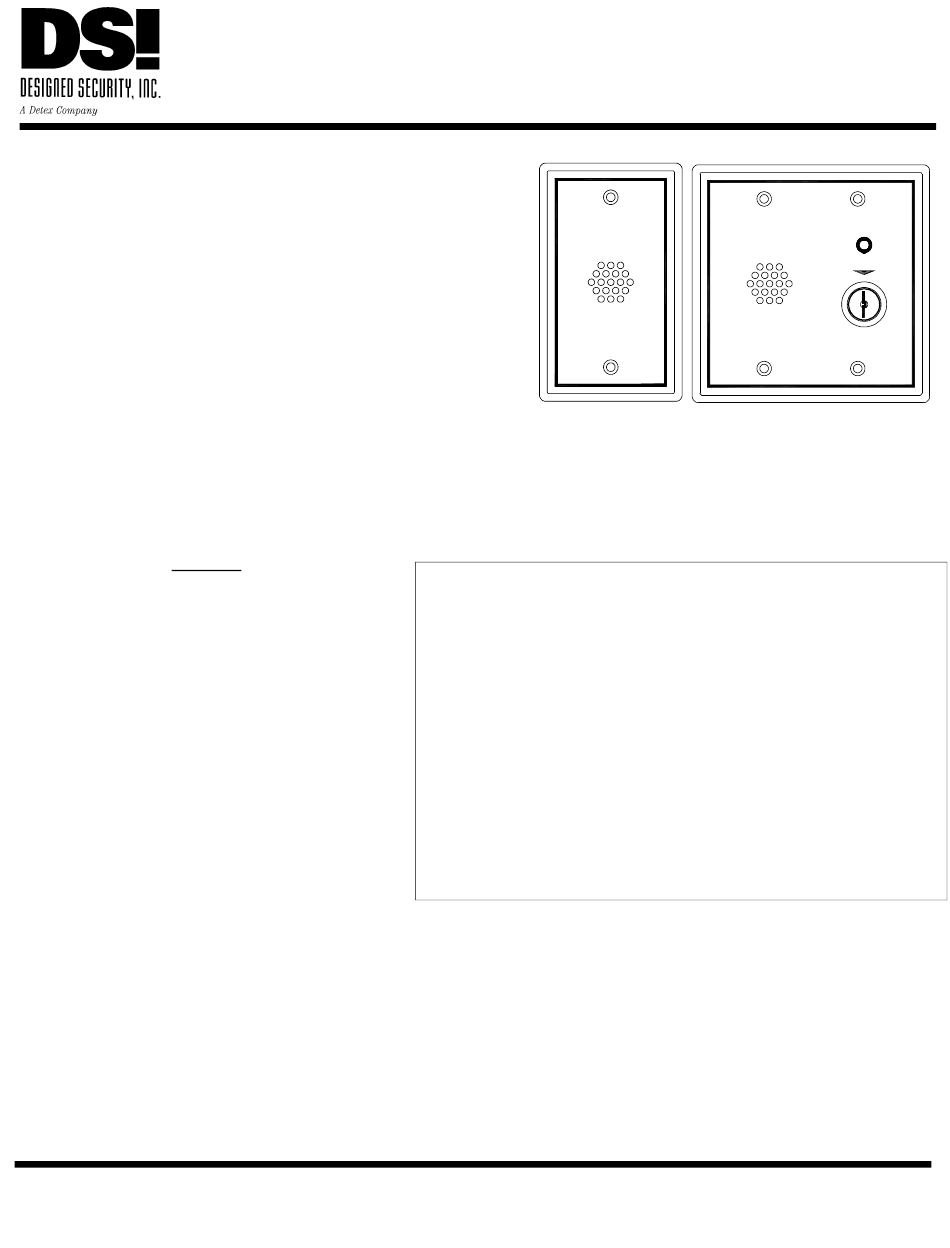

ES411-K0
ES411
12-24 VAC/VDC At 100mA
Access Period 0-60sec.
N/C Door Contact
Key Switch (K1 model only)
1 gang x 2.5"d elect. box (ES411-K0)
2 gang x 2.5"d elect. box (ES411-K1)
N/C Alarm Contact rated at 500mA @ 30 VDC
LED (K1 Model only)
Audible: 80 db @ 3 ft.
www.dsigo.com
Email: dsi@dsigo.com
ES411
ES411-K1
1
