RTSS-X502N
User Manual
Realtimes Beijing Technology Co., LTD.
Fax：+86 010-84284669 / 84280996 / 84278927
Email:
info@realtimes.cn
Web Page:
http://www.realtimes.cn
Address:
9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang
District, Beijing 100013,P.R.China
RTSS-X502N Reference Manual V2.0
Advertisement
Table of Contents
Related Manuals for RTimes RTSS-X502N
Summary of Contents for RTimes RTSS-X502N
- Page 1 RTSS-X502N User Manual Realtimes Beijing Technology Co., LTD. Fax：+86 010-84284669 / 84280996 / 84278927 Email: info@realtimes.cn Web Page: http://www.realtimes.cn Address: 9th Floor, Block B, 20th Heping Xiyuan, Pingxi Street, Chaoyang District, Beijing 100013,P.R.China RTSS-X502N Reference Manual V2.0...
- Page 2 Revision History Applicable Revision Date Reason for change Modified by hardware version V1.0 2020.2 Initial release V1.0 V2.0 2020.6 Add notes and indicators V2.0 V2.0 2020.9 Modify interface information and add line package configuration RTSS-X502N Reference Manual V2.0...
- Page 3 Therefore, it is recommended to observe anti-static safety precautions when handling any circuit board component (including RTSS-X502N). Anti-static safety protection measures include, but are not limited to the following: a) The smart box should be placed in an anti-static bag during transportation and storage, and then the board should not be taken out during installation and deployment.
- Page 4 3) Burn in verification of all BSP support packages provided by the company; 4) The company released burn environment construction, entry-level use. ; 5) Various peripheral module drivers released by the company; 6) The company's product fault diagnosis and after-sales maintenance services; 2. Scope of technical discussion RTSS-X502N Reference Manual V2.0...
- Page 5 Updates of subsequent documents, BSP, driver files and other official account will be updated in time. We will pay close attention to our developments in order to ensure that your information is up to date. We will push through WeChat public. RTSS-X502N Reference Manual V2.0...
-
Page 6: Table Of Contents
4.8 LED...................................12 4.9 HDMI ............................12 CONNECTOR 4.10 E ........................... 13 THERNET CONNECTOR 4.11 USB3.0 ............................13 CONNECTOR 5 HARDWARE UPDATE HISTORY........................14 6 PRODUCT SIZE DIAGRAM..........................14 7 SOFTWARE/BSP DETAILS..........................15 8 TECHNICAL SUPPORT............................15 TERMS OF WARRANTY............................16 RTSS-X502N Reference Manual V2.0... -
Page 7: Product Introduction
1 Product introduction RTSS-X502n is a cloud intelligence box designed based on NVIDIA Jetson™ TX2. It integrates NVIDIA Jetson™ TX2 modules based on the brand new NVIDIA Pascal™ architecture. It comes with 256 NVIDIA CUDA cores and 64-bit ARM Cpus, with over 1 teraflop of data processing power. -
Page 8: Ordering Information
Convert USB interface to standard USB3.0 interface turn RJ45 connector Convert the DB9 interface to the standard RJ45 interface Micro HDMI turn HDMI Convert Micro HDMI to standard HDMI connector turn connector Convert DB9 interface to standard 232 interface RTSS-X502N Reference Manual V2.0... -
Page 9: External Interface Function And Location

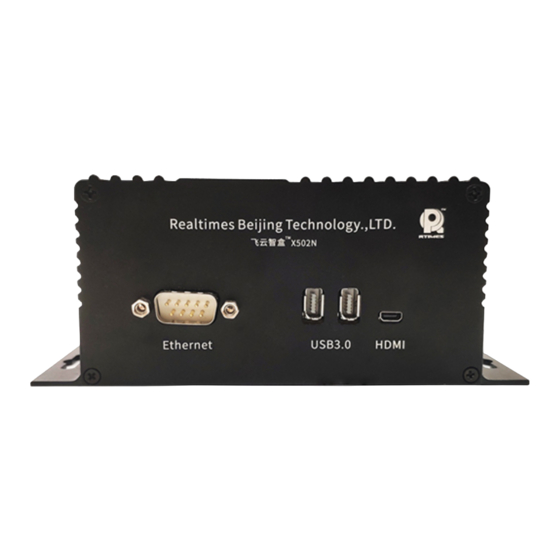

Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html 2 External interface function and location RTSS-X502N FRONT RTSS-X502N BACK RTSS-X502N Reference Manual V2.0... -
Page 10: Installation And Use
To enter Recovery mode: a) Turn off the system power supply. b) Use a USB cable to connect the OTG-USB port of the RTSS-X502N and the USB port of the Jetson development host. c) Short-circuit the 3 and 5 pins of the GPIO connector to power the system. Keep the power supply for more than 3 seconds, and then disconnect the 3 and 5 pins of the GPIO connector. -
Page 11: Connectors Description
RXD4 TXD4 Pin 1 location: The green frame on the right. The COM3 ~ 4 serial ports are RS232 signals. The mapping files in the Linux system are ttyTHS1 and ttyTHS3 in the / dev directory. RTSS-X502N Reference Manual V2.0... -
Page 12: Gpio And Function Button Connector
Pin 1 location: The green frame on the right. CAN bus interface function is not available when used with Jetson TX1 module. 4.4 WiFi antenna connector WiFi antenna interface Function AT1 AT2 marking ipex to sma female Type RTSS-X502N Reference Manual V2.0... -
Page 13: Antenna Connector
4.7 Power switch button Power switch Function On/Off marking 4.8 LED Mandatory Sign Functional Description Status description Power Power indicator Normally on - Power on 4.9 HDMI connector HDMI output interface Function HDMI marking Micro HDMI connector Type RTSS-X502N Reference Manual V2.0... -
Page 14: Ethernet Connector
Pin 1 location: The green frame on the right. 4.11 USB3.0 connector USB3.0 connectors Function USB3.0 marking Hirose: IX61-A-10P Type OTG interface: the green frame on the right. Function The USB2.0 port of this connector can work in OTG mode description for system programming. RTSS-X502N Reference Manual V2.0... -
Page 15: Hardware Update History
Realtimes Beijing Technology Co.,LTD www.realtimes.cn/en/index.html 5 Hardware update history RTSS-X502N hardware update history edition Updata description V1.0 Initial release 6 Product size diagram RTSS-X502N Reference Manual V2.0... -
Page 16: Software/Bsp Details
7 Software/BSP Details The RTSS-X502N board works on systems that burn using the official original NVIDIA Linux For Tegra (L4T) ,HDMI, gigabit Ethernet, USB2.0, serial port, GPIO, SD card, I2C bus, fan interface, can be supported. But Mini-PCIe, USB3.0, SPI，fan interface, can't work normally. -
Page 17: Terms Of Warranty
The logo and part number on the product have been deleted or removed. f) The product is out of warranty. RTSS-X502N Reference Manual V2.0... - Page 18 Rev.C 6/2020 RTSS-X502N Reference Manual V2.0...
