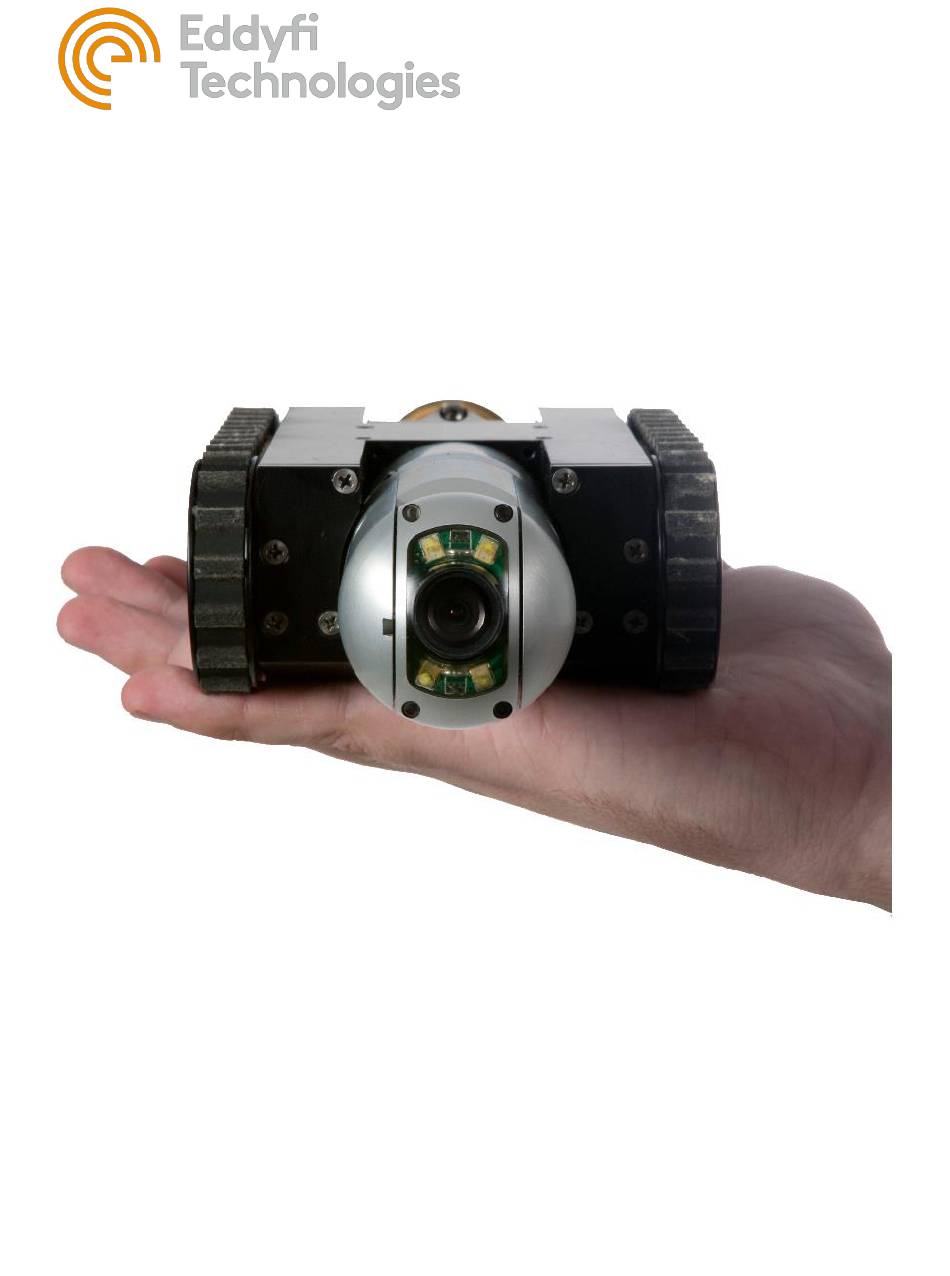

- Page 1 2569 Kenworth Road, Suite C Nanaimo, BC, V9T 3M4 CANADA +1.250.729.8080 info@eddyfitechnologies.com www.eddyfitechnologies.com INUKTUN NANOMAG™...
-
Page 2: Table Of Contents
Nanomag™ Table of Contents About This Manual ............................4 Description ..............................4 Specifications ............................4 Safety ................................ 5 System Setup ..............................6 Working Environment ..........................6 Controller System Options For Nanomag ....................6 Avoiding Tether Damage .......................... 6 System Operation ............................7 Pre-Operations Inspection ........................ - Page 3 Nanomag™ Limited Warranty Policy ..........................17 Declaration of Conformity ..........................18 Document: UMAM000196.docm Revision: A06 Created by: JS Date: 26 Sep 2019 IPN: 3024835-A06 Source Location: C:\ePDM\ISLEng\products\am-nanomag\manuals\UMAM000196.docm Page 3 of 19...
-
Page 4: About This Manual
Furthermore, schematics or pictorials and detailed functionality may differ slightly from what is described in this manual. Eddyfi Technologies reserves the right to change and/or amend these specifications at any time without notice. Customers will be notified of any changes to their equipment. -
Page 5: Safety
Under no circumstances should this equipment be used in a potentially explosive atmosphere. • If the equipment is powered from a source other than an Eddyfi Technologies provided controller, the power supplied to the product must have reinforced isolation from the mains with no reference to earth ground. -
Page 6: System Setup
Nanomag™ • Due to the varying range of operational requirements and environmental factors encountered at different locations, it is recommended that a Task Based Risk Assessment is performed before deploying the equipment. Caution: Disconnect the power source before servicing the product; otherwise, damage may result. System Setup Working Environment The NanoMag™... -
Page 7: System Operation
Nanomag™ System Operation Pre-Operations Inspection Before each mission: 1. Ensure that all fasteners are in place and secure. 2. Check all the controller connections. 3. Check that there is no mechanical damage to the vehicle and tether. 4. Power up the system and test each function to ensure proper operation before sending it on its mission. -
Page 8: Magnet Installation And Removal
Nanomag™ 4. Install the new belt. 5. Tension the new belt by pulling forward on the idler wheel and then tightening the Allen Flat Head idler screw. Re-install the wheel cover and tighten the six (6) screws again. Magnet Installation and Removal The magnetic strength of the vehicle can be varied by adding or removing magnets. - Page 9 Nanomag™ 5. Follow the photographs above for the insertion of magnets. To remove magnets, reverse the procedure. Document: UMAM000196.docm Revision: A06 Created by: JS Date: 26 Sep 2019 IPN: 3024835-A06 Source Location: C:\ePDM\ISLEng\products\am-nanomag\manuals\UMAM000196.docm Page 9 of 19...
-
Page 10: Caring For The Tether
Nanomag™ Warning: These magnets are very powerful. When removing the screws from the magnet retainer plate, maintain good pressure on the plate. Failing to do so will allow the magnets to jump out and could easily pinch or cut your fingers. Caring For The Tether The tether should be considered the most important part of the vehicle system. -
Page 11: Rear Camera Installation
Nanomag™ Rear Camera Installation To install the rear camera: 1. Attach the mounting plate (ME-MP-XAM0045-00) onto the camera using the bottom hole only. Ensure the camera is the right way up with the word "TOP" visible at the top of the camera. 2. -
Page 12: Spectrum™ 45 Camera Maintenance
Nanomag™ FIGURE 2: BLANKING PLATE INSTALLATION Spectrum™ 45 Camera Maintenance Refer to the Spectrum 45 camera manual for care and maintenance instructions. Troubleshooting Refer to the troubleshooting guide at the back of the Versatrax™ controller manual. Document: UMAM000196.docm Revision: A06 Created by: JS Date: 26 Sep 2019 IPN: 3024835-A06... -
Page 13: Optional Spectrm 45™ Mount On Top Of Chassis
Nanomag™ Optional Spectrm 45™ Mount on Top of Chassis The Spectrum 45 camera can be optionally mounted above and on top of the chassis to provide a higher view point. The following shows the Spectrum 45 in the optional position, followed by an exploded view showing how it is assembled. - Page 14 Nanomag™ Use parts as listed below to mount the Spectrum 45 in the optional location: IPN #3062060 – High Mount Plate IPN #3062053 – High Mount Clamp IPN #4024100 – #4-40 x .375 Lg., SHCS (4x) IPN #4061975 – M5 x 30mm Lg., SHCS (2x) IPN #3004699 –...
-
Page 15: Parts And Repairs
Warranty claims must return to the factory for evaluation. To return an item for evaluation or repair, first contact Eddyfi Technologies at our toll-free number or e- mail address. Eddyfi Technologies will supply a Return Merchandise Authorization (RMA) number with detailed shipping and customs instructions. -
Page 16: Product/System Drawing Package Availability
Product/System Drawing Package Availability Mechanical assembly and electrical wiring diagram drawing packages for your equipment are available in PDF format upon request. Printed copies may also be purchased from Eddyfi Technologies. Contact your local sales contact for more information. Document: UMAM000196.docm... - Page 17 The foregoing constitutes the sole and exclusive remedy of the purchaser and the exclusive liability of Eddyfi Technologies and is in lieu of any and all other warranties, express, implied or statutory as to merchantability, fitness for purpose sold, description, quality productiveness, or any other matter. Under no circumstances shall Eddyfi Technologies be liable for special, incidental or consequential damages, or for delay in performance of this warranty.
- Page 18 Nanomag™ Declaration of Conformity Document: UMAM000196.docm Revision: A06 Created by: JS Date: 26 Sep 2019 IPN: 3024835-A06 Source Location: C:\ePDM\ISLEng\products\am-nanomag\manuals\UMAM000196.docm Page 18 of 19...
- Page 19 Nanomag™ Document: UMAM000196.docm Revision: A06 Created by: JS Date: 26 Sep 2019 IPN: 3024835-A06 Source Location: C:\ePDM\ISLEng\products\am-nanomag\manuals\UMAM000196.docm Page 19 of 19...
