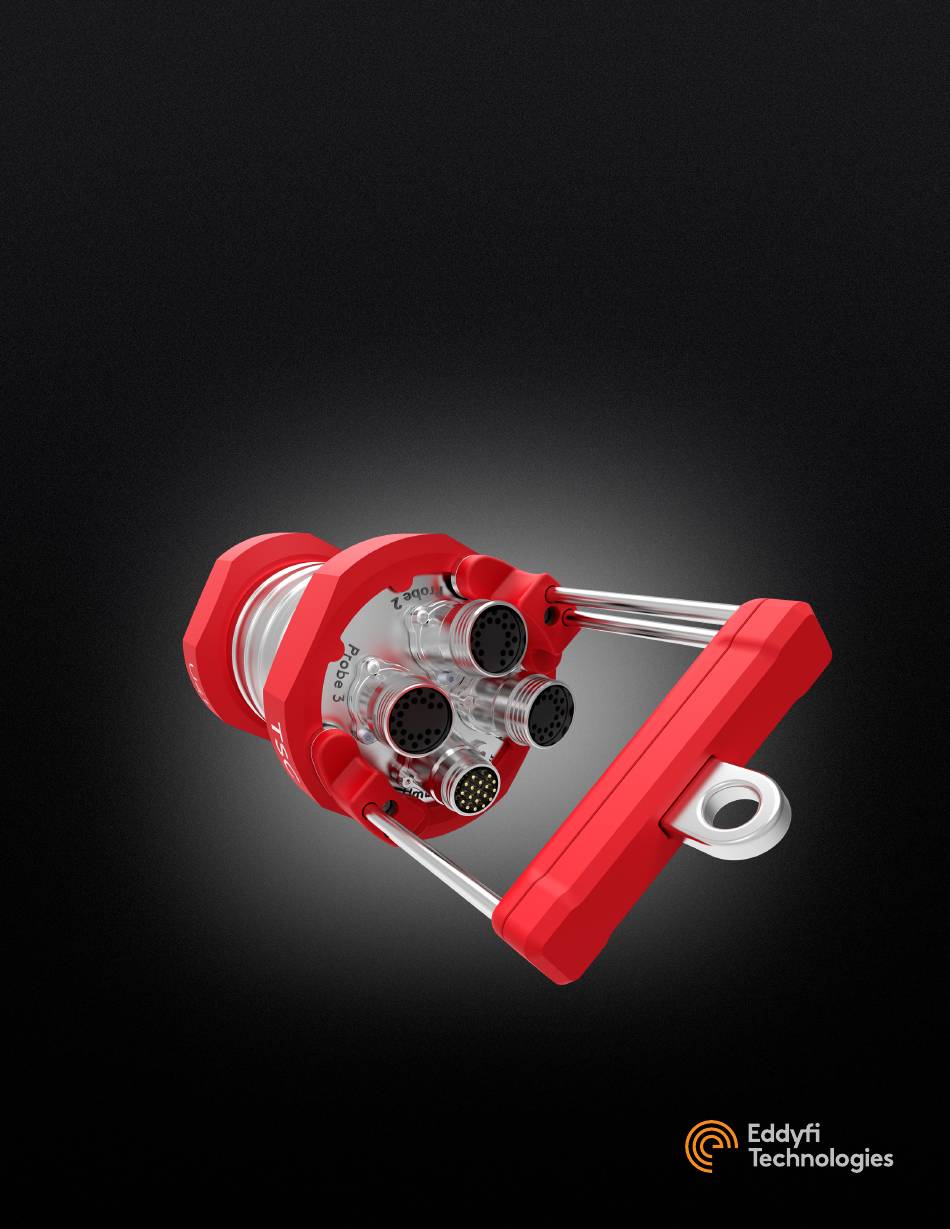

- Page 1 User’s Manual Getting Started with TSC U41 Modernizing Subsea ACFM...
- Page 2 Eddyfi NDT, Inc. ACFM, Amigo, Sensu, TSC, and their associated logos are trademarks or registered trademarks of Technical Software Consultants Ltd. (wholly owned subsidiary of Eddyfi NDT, Inc.) in the United Kingdom and/or other countries. Eddyfi Technologies reserves the right to change product offerings and specifications without notice.
-
Page 3: Table Of Contents
Contents General Precautions and Conventions General Precautions Safety Precautions Conventions Typographical Marking and Symbols Safety Indications in This Document viii Acronyms viii EMC Directive Compliance viii FCC Compliance (USA) viii ICES Compliance (Canada) viii AS/NZS Compliance (Australia/New Zealand) CE Compliance (EU) Maritime Environment Compliance Calibration and Warranty Seals Limited Warranty... - Page 4 Probes Probe connection Maintenance of the subsea bottle Connectors Instrument and Cables The Topside Unit Introduction to the topside unit Safety Trip device Extension cord Specifications General specifications Environmental specifications Connectors Umbilical Maintenance of the topside unit Cleaning instructions Assist3 Software Introduction to Assist3 software Backstage General...
- Page 5 Manipulating C-scan Appearance Keyboard shortcut keys Updating and upgrading the software Method Troubleshooting Safety device trips Figures Figure 1-1 System hardware connections Figure 1-2 Diver setup Figure 1-3 ROV setup Figure 1-4 ROV setup - power and communication taken from ROV Figure 1-5 ROV Connections Figure 1-6 LAN topologies Figure 1-7 Software - Subsea bottle configuration...
- Page 6 Figure 4-5 Backstage view: Documentation Figure 4-6 Backstage view: Preferences/System Figure 4-7 Company logo Figure 4-8 Backstage view: Preferences/Display Figure 4-9 Backstage view: Help Figure 4-10 Frontstage layout Figure 4-11 Frontstage screen Figure 4-12 Pin tabs Figure 4-13 Information bar and warnings Figure 4-14 Home Ribbon Figure 4-15 Coating thickness dialogue box Figure 4-16 Scanning ribbon...
-
Page 7: General Precautions And Conventions
General Precautions and Conventions... -
Page 8: Safety Precautions
To avoid a dangerous electric shock, do not perform any service on the system unless trained to do so. If you encounter any problems or have questions regarding this system, contact Eddyfi Tech-nologies or an authorized Eddyfi Technologies representative. Safety Precautions Observe the following safety precautions scrupulously when using U41. -
Page 9: Conventions
General Precautions and Conventions Conventions Typographical The following typographical conventions are used throughout this document: Italic Used for file names and paths. Bold Used to indicate menu items, named user interfaces, and place emphasis on specific words or phrases. Items in bold type are capitalized to reflect the actual interface. SMALL CAPITALS Used to indicate instrument interface indications. -
Page 10: Safety Indications In This Document
General Precautions and Conventions Safety Indications in This Document The safety indications in this document are intended to ensure your safety and the integrity of the system. Warning WARNING! The warning indication calls your attention to a procedure or a practice (or the like) that, if performed incorrectly, can result in injury. -
Page 11: As/Nzs Compliance (Australia/New Zealand)
General Precautions and Conventions AS/NZS Compliance (Australia/New Zealand) This device complies with Australia and New Zealand AS/NZS 4252.2 (IEC 61000-6-4) and AS/NZS 61000-6-2 (IEC 61000-6-2). CE Compliance (EU) This device complies with the Electromagnetic Compatibility Directive 2014/30/UE. Maritime Environment Compliance This device complies with the IEC 60945 and IEC 60533. -
Page 12: Limited Warranty
General Precautions and Conventions Limited Warranty Eddyfi NDT, Inc. warrants the hardware to be free of any defects in materials or workmanship for a period of twelve (12) months from the date of delivery, under normal use and service. These warranties are limited to the original purchase of the product and are not transferable. -
Page 13: System Overview
Chapter 1 System Overview... -
Page 14: Introducing The U41 System
System Overview Introducing the U41 System Thank you for purchasing the Eddyfi® TSC U41 system, the most advanced ever system for inspecting subsea structures using the Alternating Current Field Measurement (ACFM®) technique The U41 is the successor to the previous generation U31 instrument and contains the following... -
Page 15: System Hardware Setup
System Overview System Hardware Setup Overview The functional connections required for both diver and ROV operations are similar with the main difference being the umbilical used between the topside unit and subsea bottle: the diver unit always uses the Eddyfi supplied 150m subsea umbilical whereas the ROV system may use either the Eddyfi umbilical or use the ROV umbilical, as required. -
Page 16: Setup For Diver
System Overview Setup for Diver The basic connections and setup procedure to configure the system for diver deployment is shown below: Figure 1-2 Diver setup Ensure all mains switches are OFF. Connect the topside unit to the mains supply using the RCD protected lead. If the local supply is 230Vac then the included transformer will be required. -
Page 17: Setup For Rov
System Overview 12. From the Backstage screen, press the Connect button. Select the instrument from the available list and press the Connect button on this panel. For more advanced connection options, see Configuring the communications on page 8 13. Test the correct functioning of the system by performing function checks on all probes connected to the bottle. -
Page 18: Figure 1-5 Rov Connections
System Overview Figure 1-5 ROV Connections Decide on the communications protocol to be used through the ROV system. Ensure all mains switches are OFF. 3. Connect the topside unit to the mains supply using the RCD protected lead. If the local supply is 230Vac then the included transformer will be required. - Page 19 System Overview 14. Connect the Eddyfi supplied subsea whip to the subsea bottle umbilical connector 15. Connect the Eddyfi supplied topside whip free end relevant communication wires to the ROV topside integration port. See Connectors on page 24. Connect the other end to the topside unit umbilical connector.
-
Page 20: Configuring The Communications
System Overview Configuring the communications Alternative LAN topologies Connection of PC or laptop to U41 systems is usually via a standard RJ45 CAT5 style LAN cable directly from the computer to the instrumentation. This is the default setup and configuration is not normally required. -
Page 21: U41 Subsea Bottle Network Settings
System Overview U41 subsea bottle network settings From the Backstage/General tab, configure the U41 bottle by pressing the Connect button. Figure 1-7 Software - Subsea bottle configuration Then from the dialogue like the one shown below, select the ‘U41 – Ethernet’ instrument and click the Config Cog. -
Page 22: Topside Unit Network Settings
System Overview Topside Unit network settings From the Backstage/General tab, configure the Topside Unit by pressing the Configure Topside Unit R button. Figure 1-10 Software - Topside unit configuration Then from the dialogue like the one shown below, select the ‘Topside Unit’ instrument and click the Config Cog. -
Page 23: Operation With Rov
Figure 1-13 Software - Test network settings For the ‘U41 - Ethernet’ instrument Type line, check for the following. The Status column is not a green tick The Details column contains an alert icon There is no ‘U41 -Ethernet’ instrument Type present If any of these conditions are found, there could be a problem with the LAN configuration. -
Page 24: U41 Subsea Bottle Configuration
System Overview the Config Cog. Figure 1-15 Operation with ROV - Topside configuration A dialogue similar to the one shown below should appear. Figure 1-16 Operation with ROV - Topside configuration If using ethernet through the ROV, untick Enable Serial. If using serial communications direct or through a ROV multiplexing system, tick Enable Serial, then specify protocol and baud rate using the Mode and Speed (bps) selections. -
Page 25: Figure 1-18 Operation With Rov - Subsea Bottle Configuration
System Overview Figure 1-18 Operation with ROV - Subsea bottle configuration A dialogue similar to the one shown below should appear. Figure 1-19 Operation with ROV - Subsea bottle configuration If a standard ethernet connection is available through the ROV, untick Enable Serial and set Adaptor to Ethernet. -
Page 26: Figure 1-20 Operation With Rov - Subsea Bottle Configuration
System Overview Figure 1-20 Operation with ROV - Subsea bottle configuration Select a connection method, then press Connect to use the selected connection, or press Cancel to return to the Backstage/General tab to configure the Topside Unit. If Status column is not a green tick, the Details column contains an alert icon or the ‘U41 -Serial’ instrument connection method does not appear when expected, first wait for at least one minute for the system to finish initialisation. -
Page 27: The Subsea Bottle
Chapter 2 The Subsea Bottle... -
Page 28: Introduction To Subsea Bottle
The Subsea Bottle Introduction to Subsea Bottle The subsea bottle contains the main acquisition electronics for the system and is designed to operate at water depths up to 300m. Note there is also a larger ROV (RDW)version which is rated to 2000m. Figure 2-1 U41 bottle - side view Figure 2-2 U41 bottle - top view Subsea bottle main body. -
Page 29: Specifications
The Subsea Bottle Specifications General specifications for Model D, DA and R Model: D, DA and R Model RDW Dimensions 44 cm x 17 cm diameter (Handle 47 cm x 18 cm diameter (Handle in-cluded) 29.3 cm x 17 cm diameter in-cluded) 32.3 cm x 18 cm diameter (Handle not included and bumper (Handle not included and bumper... -
Page 30: Connectors
The Subsea Bottle Connectors Umbilical The umbilical connector carries power and communications between the subsea unit and topside unit. It is a wet-mateable subsea connector which is designed to be made and broken in wet conditions topside. It should not be disconnected subsea. The deck integration cable can be connected directly to this connector to test and configure the system before an umbilical or subsea whip is connected for deployment subsea. -
Page 31: Probes
The Subsea Bottle Probes Three probe connectors are fitted to the U41. These are wet-mateable subsea connectors which are designed to be made and broken in wet conditions topside. They should not be disconnected subsea. Only SENSU2 UW probes from Eddyfi are compatible with the probe connectors and no other connection should be made as damage to the instrument may occur. - Page 32 The Subsea Bottle 6. Do not disconnect the umbilical underwater. It is recommended that the umbilical connection to the bottle is taped up to prevent it being inadvertently disconnected. It is also recommended that the umbilical is left connected to the bottle, if possible, between dives.
-
Page 33: The Topside Unit
Chapter 3 The Topside Unit... -
Page 34: Introduction To The Topside Unit
The Topside Unit Introduction to the topside unit The topside unit provides power and communications between the subsea unit and the controlling laptop or desktop computer. There are two models: one for use with diver-based equipment (Topside Unit - D) and one for ROV equipment (Topside Unit - R). Note that the Topside Unit –... -
Page 35: Safety Trip Device
The Topside Unit Safety Trip device The topside unit features an integral safety trip device that is designed to cut the DC power supply to the subsea bottle in the event of the umbilical being damaged or cut and exposing the power wires. -
Page 36: Connectors
The Topside Unit Connectors Umbilical Figure 3-2 Topside unit - umbilical connector Pinout: Signal Description GNDC Chassis Ground for cable overall shield and drain wire External positive power supply, nominal voltage input is 48Vcc External positive power supply, nominal voltage input is 48Vcc External power supply GND External power supply GND nSAFE_BOOT... -
Page 37: Figure 3-3 Power In Connector
The Topside Unit 120Vac Power In connector Figure 3-3 Power in connector Type 3 pole locking Manufacturer Neutrik Part Number NAC3MPX Description Live from the 120Vac In Neutral from the 120Vac In Earth 120Vac Power Out connector Figure 3-4 Power out connector Type 3 pole locking Manufacturer... -
Page 38: Figure 3-5 Ethernet Connector
The Topside Unit Ethernet Connector The Ethernet connector is used to connect the Topside unit to a PC or network through an Ethernet link. Eddyfi supplies a high-quality Ethernet connector and cable which includes a locking connector. International Ethernet standards are used and any good quality CAT5 compliant cable can be used if required. -
Page 39: Maintenance Of The Topside Unit
The Topside Unit Maintenance of the topside unit There are no user serviceable parts inside the topside unit and the top panel should not be removed as this will invalidate the warranty. The topside unit is water-resistant to IP54 when in use (i.e. with the lid open but all connections made). -
Page 40: Assist3 Software
Chapter 4 Assist3 Software... -
Page 41: Introduction To Assist3 Software
Assist3 Software Introduction to Assist3 software The latest version of TSC’s ACFM data collection and analysis software is known as Assist3. It is available in several versions to support different instruments and customer needs but all versions are built on the same user friendly interface so switching between them is easy. The version capabilities are as follows: ASSIST Go Embedded software in AMIGO2™... -
Page 42: General
Assist3 Software General Figure 4-1 Backstage view: General Job Details To configure a job, values for Site, Component and Operator name should be entered here. Site refers to the site or location where the inspection is carried out. This may also be a job or workpack reference. -
Page 43: Figure 4-2 Connect/Disconnect
Assist3 Software Instrument Once a connection is established with the instrument, the model, serial number and calibration expiry date are shown here. Connect/Disconnect and Configure Topside Box enable a communications link to be established between the software and instrumentation hardware. Connect/Disconnect Many operations can be performed in ASSIST without the instrument hardware, such as data replay, analysis and reporting. -
Page 44: Select Probe
Assist3 Software Select Probe Up to three probes can be attached to the instrument at any one time. The selected Active Probe and its selected active Configuration are shown here. The Select Probe button allows you to choose which probe and configuration to use. This function can also be accessed from the Backstage/General tab or the Home Ribbon, as described on "Home ribbon", page 40. -
Page 45: File Transfer
Assist3 Software File Transfer Transfer files between the program and a USB mass storage device. Files can also be deleted using this function. A new file or “page” of data is created every time Run is pressed. Files are collected in subfolders labelled by Component name, which are collected within top level folders labelled by Site name. -
Page 46: Documentation
Assist3 Software Documentation This section of the backstage allows you to open and read PDFs located in the ASSIST\UserData folder. Figure 4-5 Backstage view: Documentation Preferences The preference section consists of two tabs, System and Display. System: used to change units, company logo, date and time, wireless interfaces, Keyboard shortcuts. -
Page 47: Figure 4-7 Company Logo
Assist3 Software Measurement Units You can use Assist3 under the US Customary (imperial) or metric system of measurement units. To change the measurement unit system, select Imperial or Metric as appropriate. When you do, measurement units are adjusted across the software and in your reports. Company Logo You can select an alternative image to use on reports to replace the default Eddyfi logo. -
Page 48: Figure 4-8 Backstage View: Preferences/Display
Assist3 Software Display A dark color scheme uses a black background, while a light color scheme is white (note that the white scheme is best for viewing in bright sunlight while the dark mode may be useful when viewing in dim conditions). Screen brightness and auto power down can also be adjusted from this menu. -
Page 49: Frontstage Layout
Assist3 Software Frontstage Layout The frontstage consists of the ribbon zone, side tabs, main data zones, bottom tabs and information bar. Figure 4-10 Frontstage layout Ribbon zone Side tabs Data views Bottom tabs Information bar The Data views can be specified in the Layouts Ribbon. A Standard Layout is shown below. The frontstage can be further broken down into the following elements: Figure 4-11 Frontstage screen | 37... -
Page 50: Pinning Side And Bottom Tabs
Assist3 Software Bx trace. Top left. Use left-click and mouse move (or single finger drag on a touchscreen) to both pan the Bx data scale and scroll the x-axes when zoomed. Use right-click and mouse move (or two finger spread on a touchscreen) to select and zoom-in on x-axes. Use right-click and select an appropriate menu option (or two finger pinch on a touchscreen) to zoom out. -
Page 51: Information Bar And Warnings
Assist3 Software Information bar and warnings A number of information fields run along the bottom of the screen. Any that are suboptimal are highlighted. Figure 4-13 Information bar and warnings Scalings OK/Scalings Lost. If the scale is not the same as the probe configuration’s default, the Scalings Lost warning appears to warn the operator that the screen scaling has been changed and the current signals may give a false impression of defect size. -
Page 52: Home Ribbon
Assist3 Software Home ribbon The Home Ribbon contains the commands necessary for acquiring data. Figure 4-14 Home Ribbon Run begins data collection. Scan function. Function check or general scan. 3. Part ID. This would typically be a sub-component or weld ID. 4. -
Page 53: Scanning Ribbon
Assist3 Software Scanning ribbon The following commands are available during data collection: Figure 4-16 Scanning ribbon Press Stop to end data collection. Pause. Pauses the data collection. Press Resume to resume scanning. 3. Clock/Linear. Adds clock or linear marks to the data. A series of sequentially numbered vertical lines corresponding to the numbered clock positions running around the circumference of a pipe or tubular, or linear positions on a flat surface. -
Page 54: Configuring Markers
Assist3 Software Configuring Markers Pressing the physical A/C button on the left-hand side of the case, while the instrument is collecting data, adds a series of sequentially numbered vertical lines to the Bx and Bz traces. For example, if the inspector was inspecting a circumferential weld marked up in clock positions running from 1 to 12 o’clock, 12 being top dead centre, the data could be marked up accordingly. -
Page 55: Origin Dialogue Box
Assist3 Software Origin Dialogue Box Configure next scan Origin. To allow correlation of inspection data to real world datum. Enter the offset from datum in the Origin field, or press ‘Use Current’ button to copy the origin value of the current page. Press OK to save changes. The new origin value will be applied for next and subsequent scans and represents the origin value for the first data point of the page. -
Page 56: Replay Ribbon
Assist3 Software Analysis Ribbon Once data has been collected it can be analysed. Figure 4-20 Analysis ribbon Replay displays the collection of the current page of data as if it were a movie playback. The replay can be stopped, paused and displayed slower or faster using the Replay Ribbon, see "Replay Ribbon", page 44. -
Page 57: Size
Assist3 Software Size Once a defect indication has been found, it can be sized using this option from the Analysis Ribbon. Figure 4-22 Sizing The Size button brings up the defect information dialogue box. You may need to move the defect dialogue box to one side so the Bx and Bz signals are visible. -
Page 58: Defect List Box
Assist3 Software Defect List Box The defect list box includes the Part ID, line type, estimated length (Bz peak/trough distance), coating thickness, calculated length and depth, location, minimum and background Bx value, coil factor and field used for sizing. Items in the list can be deleted by pressing the red cross symbol or edited by pressing the green pencil symbol. -
Page 59: Adding A Region
Assist3 Software Adding a Region Creating a region adds a color coded highlight over the Bx and Bz signals. For example, a signal feature corresponding to a seam weld could be highlighted in purple. Figure 4-24 Adding a region Zoom in on your data. Press Add Region. -
Page 60: Creating An Automated Report
Assist3 Software Creating an Automated Report An automated report can be generated. This one-page report contains the following information for the current page of data: Site, component, date, operator name, etc. A screenshot of the signals as displayed, zoomed and scaled. Defects found. -
Page 61: Layout Ribbon
Assist3 Software Layout ribbon The layout ribbon becomes active when twin-field or array probes are used. It allows the user to configure the screen to simultaneously display both fields and/or contour plots. Figure 4-27 Layout ribbon The layout ribbon has five options: Standard layout Layout 2 3. - Page 62 Assist3 Software Layout 2 C-scans (contour plots) are presented for the Bx and Bz signals if array data is available. The butterfly plot is presented in the normal manner but with multiple lines corresponding to the individual array rows. Figure 4-29 Layout 2 Layout 3 The Bx and Bz traces are positioned on the left.
-
Page 63: Figure 4-32 Layout 5
Assist3 Software Layout 4 For probes that have more than one field, this layout enables data from both X and Y fields to be displayed at the same time. The X-field Bx and Bz traces are placed on the left. The Y-field By and Bz traces are placed on the right. -
Page 64: Manipulating C-Scan Appearance
Assist3 Software Manipulating C-scan Appearance The C-scans simultaneously map the data from all rows. Background values are green, lower values are blue and higher values are red. Measured defects are displayed as yellow numbered rectangles. In layouts with traces or butterfly views the Bx and Bz signals can be moved up and down the screen by left-click and mouse move. -
Page 65: Figure 4-33 Keyboard Shortcuts
Assist3 Software Amigo2 Function Keyboard Shortcut Toggle Clockwise/Anticlockwise Modifying Keyboard Shortcuts In the System preferences of the backstage, tap the Keyboard button. Figure 4-33 Keyboard Shortcuts | 53... -
Page 66: Updating And Upgrading The Software
Assist3 Software Updating and upgrading the software Method Reinstalling the Software To reinstall Assist, simply follow the instructions from the Installation Wizard. Note When installation is complete, Windows Program Compatibility Assistant might require that you confirm that Assist installed correctly. Simply click This program installed correctly. Figure 4-34 Launching the Setup wizard Figure 4-35 Accepting the license agreement Figure 4-36 Installing the software... -
Page 67: Figure 4-37 Finishing The Installation
Assist3 Software Figure 4-37 Finishing the installation | 55... -
Page 68: Figure 4-38 Finish The Installation
Assist3 Software Figure 4-38 Finish the installation Click “This program installed correctly” 56 | www.eddyfi.com... -
Page 69: Troubleshooting
Chapter 5 Troubleshooting... -
Page 70: Safety Device Trips
Troubleshooting Safety device trips The Safety Trip device in the topside unit, and the RCD in the power input cable, are sensitive and may on occasion trip when there is no fault present. If either safety system trips, first see if there are any obvious causes of the problem such as a cut or damaged umbilical, an unplugged cable or if the ROV team report a problem or are working on the ROV. - Page 71 Troubleshooting | 59...
- Page 72 The information in this document is accurate as of its publication. Actual products may differ from those presented herein. © 2019 Eddyfi UK LTd. Eddyfi, TSC, Amigo2, PACE, U41 and their associated logos are trademarks or registered trademarks of Eddyfi in the United States and/or other countries. Eddyfi reserves itself the right to change product offerings and specifications without notice.
