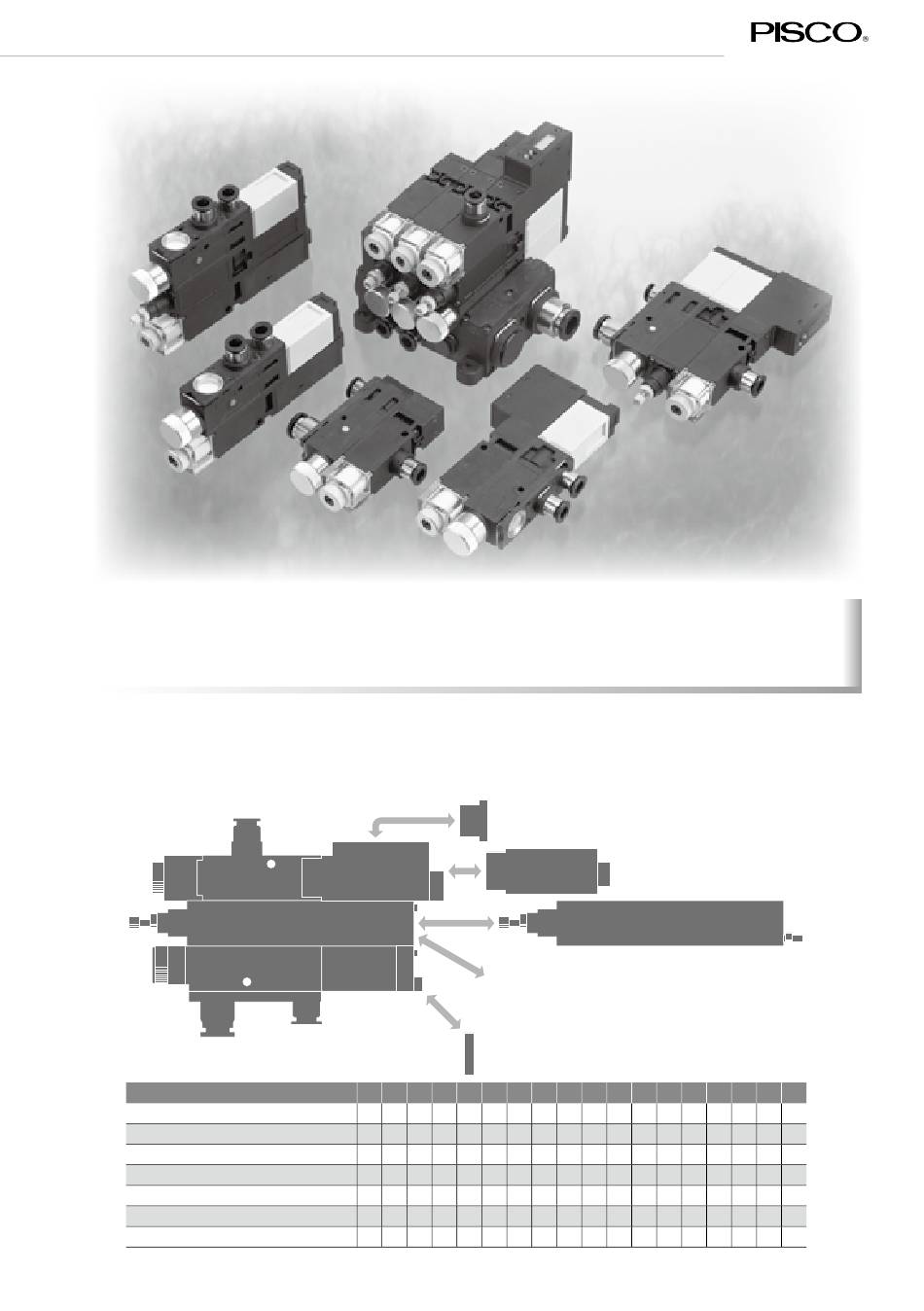

Complex Vacuum Generator with Variety of Mounting Units for Diversified Applications
Vacuum Generator
Selection of the most suitable module for your application is possible
●
by the modularized each unit and rich combination of units.
①Filter
⑦Blow-off solenoid valve
②Ejector
Combinations
① Filter + ② Ejector
③ Suction solenoid valve
Check valve (vacuum retention function) － ○ － ○ － ○ － ○ － ○ － ○ － － － － － －
④ Mechanical vacuum switch
⑤ Vacuum switch with LED display － － － － ○ ○ － － － － ○ ○ － － ○ － － ○
⑥ Air timer type blow-off valve － － － － － － － － － － － － ○ ○ ○ － － －
⑦ Blow-off solenoid valve
⑤Vacuum switch
with LED display
③Suction
solenoid
valve
Plug
A B C D E F G H J K L M P Q R S T W
○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
－ － － － － － ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
－ － ○ ○ － － － － ○ ○ － － － ○ － － ○ －
－ － － － － － － － － － － － － － － ○ ○ ○
VK Series
Plug
④Mechanical
vacuum switch
⑥Air timer type blow-off valve
No blow-off valve
http://www.pisco.com
Advertisement
Related Manuals for PISCO VK Series
Summary of Contents for PISCO VK Series
- Page 1 Complex Vacuum Generator with Variety of Mounting Units for Diversified Applications VK Series Vacuum Generator Selection of the most suitable module for your application is possible ● by the modularized each unit and rich combination of units. Plug ④Mechanical ⑤Vacuum switch...
- Page 2 Vacuum Generator Series Vacuum Generator VK ■ Characteristics Blow-Off Mechanism can be selectable from solenoid valve ● type and air timer (air chamber) type. The built-in switching valve realizes fine tuning of quick blow-off air and fine adjustment of air rate. Easy maintenance by a lock-on manual button.
- Page 3 ■ Piping Example ① Filter Dusts sucked up from a vacuum pad are filtered and blocked from Vacuum Pad entering inside the vacuum generator. ② Blow-off air rate adjustment needle Turning the release needle to right (clockwise direction) reduces blow- off air and turning it to left (counterclockwise) increases blow-off air.
- Page 4 Vacuum Generator VK ■ Model Designation (Example) ‒NW Complex Vacuum ⑪ Generator Vacuum switch ① ⑩ Port orientation Number of stations ② ⑨ Vacuum characteristics Body color ③ ⑧ Nozzle bore Solenoid valve type ④ ⑦ Combinations Exhaust port ⑤ ⑥...
- Page 5 ④ Combinations (18 types) Code ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Filter － － － － － － ○ ○ ○ ○ ○ ○ ○ ○ ○...
- Page 6 ⑦ Exhaust port (tube dia.) ■ Stand-alone type Code ø8mm Straight type ø8mm Elbow type Silencer vent 8mm is same as 5/16" 8mm is same as 5/16" Tube dia. (tube exhaust) (tube exhaust) ■ Manifold type (VKM) inch size Silencer Tube exhaust Port type vent...
- Page 7 Vacuum Generator Series Vacuum Generator VK ■ Model Designation of Block Plate (Example) ② Color ① Block plate Manifold for complex vacuum generator ① Block plate：MB ② Color Code Color Light-gray Black ■ Model Designation of Nozzle Set (Example) ② Nozzle bore ①...
- Page 8 ■ Order Example ■ Manifold type ( VKM ) Example .When all stations have common specifications. VK M H 10 W – T6 20 S2 E – B 04 – NW ① ② ③ ④ ⑤ ⑥ ⑦ ⑧...
- Page 9 Vacuum Generator Series Vacuum Generator VK ■ Order Exampl Manifold-base only ■ (Block plate not attaching to the top unit) Example . When all vacuum ports are common specifications VK M – S1/4 43/8 61/2 – W 08 ① ⑤ ⑥...
- Page 10 ■ Example of model code when manifold installation top-mounting units and vacuum port vary in type, while stations of the manifold type (VKM) are aligned ( ❶ and ❷ are examples of model designation. Also fill in ❸ (Specification Order Form) which indicates station arrangements for manifold installation top-mounting unit and vacuum port.)
- Page 11 Vacuum Generator Series Vacuum Generator VK ■ Instructions for Specification order form ❷ “Model code and number of ( 1 ) In case of manifold installation top-mounting unit example 1) and 2) of units of manifold installation top-mounting unit”, ⑤ “Vacuum port” is “00” which indicates ports on sides, but does not show the tube dia.
- Page 12 Vacuum Generator VK Series Specification Order Form To: NIHON PISCO CO., Ltd. Name : Order # : Date : Requested EX-W PISCO Date : Quantity : Vacuum Number Config. Vacuum Nozzle Vacuum Air supply Exhaust Solenoid Combinations Color switch with PISCO (Port pos.)
- Page 13 Vacuum Generator VK ■ Specification (Supply pressure) Fluid medium 36 ~ 101.5 psi Operating pressure range (0.25 ~ 0.7 MPa) Rated supply pressure H and L type：72.5psi ( 0.5 MPa) 、E type：50.8psi (0.35 MPa) Operating temp. range 40 ~ 122° F （5 ~ 50° C） （ No freezing） Lubrication Not required ■...
-
Page 14: Filter Specification
■ Filter specification Element material PVF (Polyvinyl formal) Filtering capacity 10µm Filter area 1,130mm Replacement element model code VGFE 10 ■ Air timer type blow-off valve Structure Delay style by air timer cylinder, Poppet valve, Two-way valve Release time Approx. -
Page 15: Analog Output
Vacuum Generator VK ■ Vacuum switch with LED display ■ NPN open collector Output 1 switch output and 1 analog output (-NA) 2 switch output (-NW) Current consumption 40mA or less Pressure detection Diffused metaloxide semiconductive pressure transducer 0 ~ -29.5inHg (0 ~ - 100kPa) Operating pressure range Pressure setting range 0 ~ - 99kPa... - Page 16 ■ PNP open collector Output 2 switch output (-PW) 1 switch and 1 analog output (-PA) Current consumption 40mA or less Pressure detection Diffused metaloxide semiconductive pressure transducer 0 ~ -29.5inHg (0 ~ - 100kPa) Operating pressure range Pressure setting range...
- Page 17 Vacuum Generator Series Vacuum Generator VK ■ Mechanism of VKA Example) VKA □□□ W……E Solenoid valve type (Normally closed) / Blow-off solenoid valve / Filter / Vacuum switch with LED ①At vacuum generation suspended ②At vacuum generating Blow-off air rate adjustment Switchover valve Vacuum switch with LED Filter...
- Page 18 ■ Mechanism of VKB Example) VKB □□□ Q……E Solenoid valve type (Normally closed) / Air timer type blow-off valve / Filter / Mechanical vacuum switch ①At vacuum generation suspended ②At vacuum generating Mechanical vacuum switch Blow-off time adjustment Air timer cylinder ③Blow-off...
- Page 19 Vacuum Generator Series Vacuum Generator VK ■ Characteristics Supply pressure - Final vacuum, Suction Flow, Air Consumption VKAH07, VKAL07, VKAE07, VKBH07, VKBL07, VKBE07, VKAH05, VKAL05, VKBH05, VKBL05, VKMH05, VKML05 VKMH07, VKML07, VKME07 Vacuum characteristics Flow characteristics Vacuum characteristics Flow characteristics Supply pressure：0.5MPa (H, L type) Supply pressure：0.5MPa (H, Ltype) 0.35MPa (E type)
- Page 20 ■ Electric circuit diagram (Solenoid valve) DC24V AC100V Suction solenoid valve Suction solenoid valve & Suction solenoid valve Suction solenoid valve & alone alone Blow-off solenoid valve Blow-off solenoid valve +24V (Black) (Red) (～) Blue (～) Blue +24V Suction...
- Page 21 Vacuum Generator Series Vacuum Generator VK ■ VK Series Weight List Combination Stand-alone weight (g) Manifold weight (g) Block plate Weight (g) code VKA··· VKB··· VKM···-S··· VKM···-T··· VKM···-MB··· 75.5 77.5 75.5 77.5 Silencer Weight (g) 78.5 78.5 Silencer for stand-alone type 78.5...
- Page 22 Vacuum Generator Series ■ Standard Size List Unit combinations: Built-in filter Unit combinations: Built-in filter and check valve Air supply port Exhaust Air supply port Exhaust Type Type Vacuum port Vacuum port 5/32in.1/4in. 5/16in. 6mm 8mm port 5/32in.1/4in. 5/16in. 6mm 8mm port ●...
- Page 23 Unit combinations: Built-in filter and Suction solenoid valve Unit combinations: Built-in filter, Check valve and Suction solenoid valve N. C. N. O. N. C. N. O. Air supply port Exhaust Air supply port Exhaust Vacuum port Vacuum port Type Type 5/32in.
- Page 24 Vacuum Generator Series ■ Standard Size List Unit combinations: Built-in filter, Suction solenoid valve and Digital vacuum Unit combinations: Built-in filter, Check valve, Suction solenoid valve and switch with LED display Digital vacuum switch with LED display N. C. N. C. N.
- Page 25 Unit combinations: Built-in filter, Suction solenoid valve, Digital vacuum switch Unit combinations: Built-in filter, Suction solenoid valve and Blow-off solenoid with LED display and Air timer type blow-off valve valve N. C. N. C. (Digital type) N. O. N. O.
- Page 26 Vacuum Generator Series...
- Page 27 A - B Type Circuit diagram Unit connecting thread (thread part to fix manifold) VKA□□□A…… (Combination code: A type, Vacuum generator and Filter.) 2-ø3.2 VKA□□□B…… Model code (Combination code: B type, Vacuum generator, Filter and Check valve.) VKA □□□ A……...
- Page 28 Vacuum Generator Series Vacuum Generator VK G - H Type Circuit diagram Model code VKA□□□G ……E or F VKA□□□G ……G or H VKA □□□ G…… (Combination code: G type, Vacuum (Combination code: G type, Vacuum generator (N.C.), Suction solenoid generator, (N.O.) Suction solenoid VKA □□□...
- Page 29 L - M Type Circuit diagram Model code VKA□□□L……E or F VKA□□□L……G or H (Combination code: L type, Vacuum (Combination code: L type, Vacuum VKA □□□ L…… generator (N.C.), Suction solenoid generator (N.O.), Suction solenoid VKA □□□ M…… valve, Filter and Vacuum switch with valve, Filter and Vacuum switch with LED display.)
- Page 30 Vacuum Generator Series Vacuum Generator VK S Type Circuit diagram Model code VKA□□□S……E or F (Combination code: S type, Vacuum generator (N.C.), VKA □□□ S…… Suction solenoid valve, Blow-off suction valve and Filter.) Unit connecting thread (thread part to fix manifold) 5～9 VKA□□□S……G or H 2-ø3.2...
- Page 31 R Type Circuit diagram Model code VKA□□□R……E or F (Combination code: R type, Vacuum generator (N.C.), VKA □□□ R…… Suction solenoid valve, Air timer type blow-off valve, Filter and vacuum switch with LED display.) Operation indicator LED Unit connecting thread...
- Page 32 Vacuum Generator Series Vacuum Generator VK W Type Circuit diagram Model code VKA□□□W……E or F (Combination code: W type, Vacuum generator (N.C.), VKA □□□ W…… Suction solenoid valve, Blow-off suction valve, Filter and vacuum switch with LED display.) Operation indicator LED Unit connecting thread (Digital type) (thread part to fix manifold)
- Page 33 A - B Type Circuit diagram Unit connecting thread (thread part to fix manifold) VKB□□□A…… (Combination code: A type, Vacuum generator and Filter.) 2-ø3.2 VKB□□□B…… Model code (Combination code: B type, Vacuum generator, Filter and Check valve.) VKB □□□ A……...
- Page 34 Vacuum Generator Series Vacuum Generator VK G - H Type Circuit diagram Model code VKB□□□G ……E or F VKB□□□G ……G or H VKB □□□ G…… (Combination code: G type, Vacuum (Combination code: G type, Vacuum generator (N.C.), Suction solenoid generator, (N.O.) Suction solenoid VKB □□□...
- Page 35 L - M Type Circuit diagram Model code VKB□□□L……E or F VKB□□□L……G or H (Combination code: L type, Vacuum (Combination code: L type, Vacuum VKB □□□ L…… generator (N.C.), Suction solenoid generator (N.O.), Suction solenoid VKB □□□ M…… valve, Filter and Vacuum switch with valve, Filter and Vacuum switch with LED display.)
- Page 36 Vacuum Generator Series Vacuum Generator VK S Type Circuit diagram Model code VKB□□□S……E or F (Combination code: S type, Vacuum generator (N.C.), VKB □□□ S…… Suction solenoid valve, Blow-off suction valve and Filter.) Unit connecting thread (thread part to fix manifold) 5～9 VKB□□□S……G or H 2-ø3.2...
- Page 37 R Type Circuit diagram Model code VKB□□□R……E or F (Combination code: R type, Vacuum generator VKB □□□ R…… (N.C.), Suction solenoid valve, Air timer type blow-off valve, Filter and Vacuum switch with LED display.) Operation indicator LED Unit connecting thread...
- Page 38 Vacuum Generator Series Vacuum Generator VK W Type Circuit diagram Model code VKB□□□W……E or F VKB □□□ W…… (Combination code: W type, Vacuum generator (N.C.), Suction solenoid valve, Blow-off suction valve, Filter and Vacuum switch with LED display.) Operation indicator Unit connecting thread (Digital type) LED display...
- Page 39 Manifold type (Silencer vent) 16.2n+32(n = Number of stations) Model code 16.2n+16 VKM- □□ S □…… 16.1 16.1 P=16.2 Upper unit thread part 4-M4 fitting hole (Station) L side R side St 1 St 2 … St n Exhaust silencer...
-
Page 40: Detailed Safety Instructions
Caution 1. In case that not all units generate vacuum at same time, the exhaust air of operating unit flows into the vacuum port of non-operating unit. If such exhaust air causes the problem, please consult with PISCO. - Page 41 Safety Rules for Use ■ Operating temperature range is 5-50℃ . Do not operate the product out of the temperature range. ■ Compressed air contains many kinds of drains such as water, oxidized oil, tar and other foreign substances. Dehumidify and improve the quality of air by using an after-cooler or a dryer, since those drains seriously impair the performance of the vacuum generator.
- Page 42 Vacuum Generator Series （2）Differential response setting ① Differential response setting can be adjusted by the hysteresis setting trimmer (HYS). A Hysteresis setting trimmer ② Differential response setting range is regulated within B SW2 Pressure setting trimmer about 0-15% of the set value. Differential response A Pressure setting trimmer B SW1 Pressure setting trimmer setting becomes large when the trimmer is turned in the...
- Page 43 ⑭ Avoid strong external impacts and excessive force to the sensor body. ■ 4. Mechanical vacuum switch ■ Vacuum switch of VK Series is a connector (detachable) type. Refer to the following figure for connecting method. ■ When adjusting the pressure setting, open the cover with a flathead screwdriver. Hold the cover with fingers to prevent the cover jumping out.
- Page 44 Vacuum Generator Series ■ How to replace silencer elements of Stand-alone Type ■ ■ Remove the fixing screw to replace the filter Use a flathead screwdriver to pull out the fixing pin element. Make sure to place the filter seal rubber in order to replace silencer elements.
-
Page 45: Safety Instructions
JIS B 8370：General rules and safety requirements for systems and their components. This safety instructions is classified into “Danger”, “Warning” and “Caution” depending on the degree of danger or damages caused by improper use of PISCO products. Danger Hazardous conditions. It can cause death or serious personal injury. - Page 46 PISCO products, or by combinational use with non-PISCO products and other software systems. 5. The damages caused by the defect of Pisco products shall be covered but limited to the full amount of the PISCO products paid by the customer.
- Page 47 2. Do not disassemble or modify PISCO products, which affect the performance, function, and basic structure of the product. 3. Turn off the power supply, stop the air supply to PISCO products, and make sure there is no residual air pressure in the pipes before maintenance and inspection.
- Page 48 When a fluid medium is liquid or the products are required to be used in harsh environments, contact us for further information. 5. In case of using non-PISCO brand tubes, make sure the tolerance of the outer tube diameter is within the limits of Table 1.
- Page 49 ③ Adjust the tube direction while tightening thread within these limits, since some PISCO products are not rotatable after the installation. ● Table 2: Recommended tightening torque / Sealock color / Gasket...
- Page 50 Series Vacuum Generator Common Safety Instructions for Vacuum Series Before selecting or using PISCO products, read the following instructions. Read the detailed instructions for individual series. Warning 1. If there is a risk of dropping work-pieces during vacuum suction, take a safety measure against the falling of them.
- Page 51 2. Effective cross-section area of the air supply side needs to be three times as large as effective cross-section area of the nozzle bore. When arranging piping or selecting PISCO products, secure required effective cross-section area. Insufficient supply pressure may be a cause to impair performance.
- Page 52 Vacuum Generator Series Vacuum Generator 9. The material of plastic filter cover for VQ and VFU series is PA. Avoid the adherence of chemicals below to the products, and do not use them under those chemical environments. ● Table Chemical Name Chemical Name Methanol Ethanol...
- Page 53 Vacuum Generator VRL Vacuum Generator VG, VK Common Safety Instructions for Vacuum Generator VG and VK Series Before selecting or using PISCO products, read the following instructions. Read the detailed instructions for individual series. Warning 1. For the operation of the valve, make sure that the leakage current is less than 1mA.
